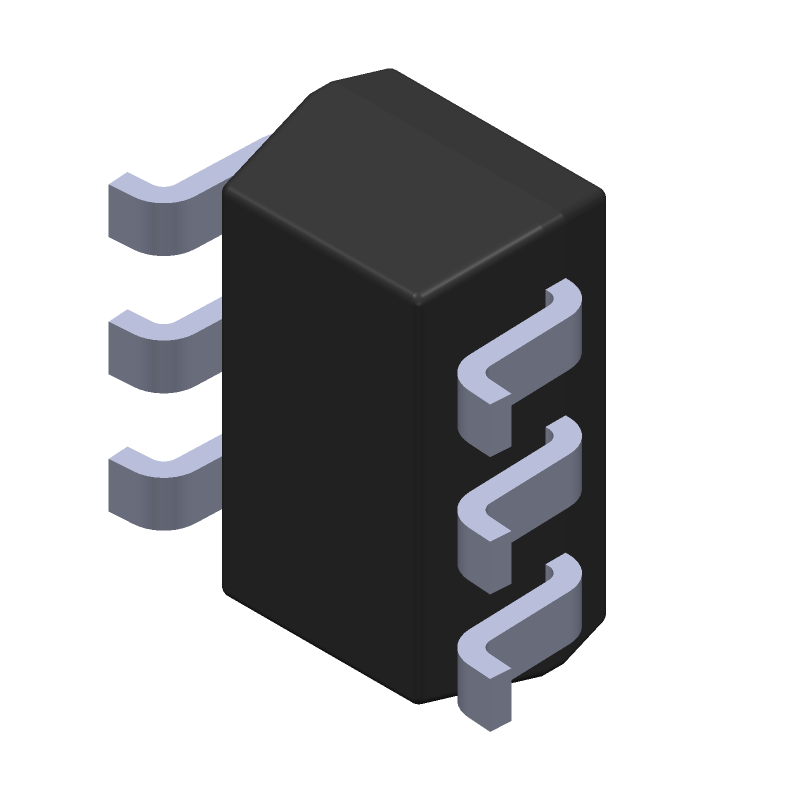

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DMMT3904WQ-7-F by Diodes Incorporated
Results Overview of DMMT3904WQ-7-F by Diodes Incorporated
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
DMMT3904WQ-7-F Information
DMMT3904WQ-7-F by Diodes Incorporated is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for DMMT3904WQ-7-F
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
28AK8442
|
Newark | Bipolar Array, Dual Npn, 40V/0.2A/Sot363 Rohs Compliant: Yes |Diodes Inc. DMMT3904WQ-7-F RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2180 |
|
$0.2100 / $0.5160 | Buy Now |
|
DISTI #
DMMT3904WQ-7-FDICT-ND
|
DigiKey | TRANS 2NPN 40V 200MA SOT-363 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
4412 In Stock |
|
$0.1037 / $0.6200 | Buy Now |
|
DISTI #
DMMT3904WQ-7-F
|
Avnet Americas | Trans GP BJT NPN 40V 0.2A 6-Pin SOT-363 T/R - Tape and Reel (Alt: DMMT3904WQ-7-F) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days Container: Reel | 3000372000 Factory Stock |
|
$0.0809 | Buy Now |
|
DISTI #
621-DMMT3904WQ-7-F
|
Mouser Electronics | Bipolar Transistors - BJT Gen Purp Trans RoHS: Compliant | 8202 |
|
$0.1030 / $0.4600 | Buy Now |
|
DISTI #
A03:0893_06816540
|
Arrow Electronics | Trans GP BJT NPN 40V 0.2A 200mW 6-Pin SOT-363 T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 14 Weeks Date Code: 2421 | Asia - 3000 |
|
$0.1007 / $0.1070 | Buy Now |
|
|
Bristol Electronics | 1500 |
|
RFQ | ||
|
|
Quest Components | 1200 |
|
$0.2190 / $0.5475 | Buy Now | |
|
|
Future Electronics | DMMT3904W Series NPN 40 V 0.2 A SMT Small Signal Transistor - SOT-363 Min Qty: 3000 Package Multiple: 3000 |
24000 null |
|
$0.0830 / $0.0880 | Buy Now |
|
DISTI #
DMMT3904WQ-7-F
|
TME | Transistor: NPN x2, bipolar, 40V, 0.2A, 200mW, SOT363 Min Qty: 1 | 0 |
|
$0.1170 / $0.3990 | RFQ |
|
DISTI #
DMMT3904WQ-7-F
|
Avnet Asia | Trans GP BJT NPN 40V 0.2A 6-Pin SOT-363 T/R (Alt: DMMT3904WQ-7-F) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 20 Weeks, 0 Days | 0 |
|
$0.0729 / $0.0815 | Buy Now |
Part Details for DMMT3904WQ-7-F
DMMT3904WQ-7-F CAD Models
DMMT3904WQ-7-F Part Data Attributes
|
|
DMMT3904WQ-7-F
Diodes Incorporated
Buy Now
Datasheet
|
Compare Parts:
DMMT3904WQ-7-F
Diodes Incorporated
Small Signal Bipolar Transistor, 0.2A I(C), 40V V(BR)CEO, 2-Element, NPN, Silicon,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | DIODES INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Diodes Incorporated | |
| Additional Feature | HIGH RELIABILITY | |
| Collector Current-Max (IC) | 0.2 A | |
| Collector-Emitter Voltage-Max | 40 V | |
| Configuration | SEPARATE, 2 ELEMENTS | |
| DC Current Gain-Min (hFE) | 30 | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 2 | |
| Number of Terminals | 6 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Reference Standard | AEC-Q101 | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | AMPLIFIER | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 300 MHz | |
| Turn-off Time-Max (toff) | 250 ns | |
| Turn-on Time-Max (ton) | 70 ns |
Alternate Parts for DMMT3904WQ-7-F
This table gives cross-reference parts and alternative options found for DMMT3904WQ-7-F. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DMMT3904WQ-7-F, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MMDT3904_R1_00001 | PanJit Semiconductor | $0.0459 | Small Signal Bipolar Transistor | DMMT3904WQ-7-F vs MMDT3904_R1_00001 |
| SMBT3904U | Infineon Technologies AG | Check for Price | Small Signal Bipolar Transistor, 0.2A I(C), 40V V(BR)CEO, 2-Element, NPN, Silicon, ROHS COMPLIANT, SC-74, 6 PIN | DMMT3904WQ-7-F vs SMBT3904U |
| MBT3904DW2T1 | onsemi | Check for Price | Dual General Purpose Transistors, SC-88/SC70-6/SOT-363 6 LEAD, 3000-REEL | DMMT3904WQ-7-F vs MBT3904DW2T1 |
| MMDT3904_R1_10001 | PanJit Semiconductor | Check for Price | Transistor, | DMMT3904WQ-7-F vs MMDT3904_R1_10001 |
| MMDT3904-R1-10001 | PanJit Semiconductor | Check for Price | Transistor | DMMT3904WQ-7-F vs MMDT3904-R1-10001 |
| MBT3904DW1T1 | Motorola Mobility LLC | Check for Price | 200mA, 40V, 2 CHANNEL, NPN, Si, SMALL SIGNAL TRANSISTOR | DMMT3904WQ-7-F vs MBT3904DW1T1 |
| MMDT3904-7 | Diodes Incorporated | Check for Price | Small Signal Bipolar Transistor, 0.2A I(C), 40V V(BR)CEO, 2-Element, NPN, Silicon, ULTRA SMALL, PLASTIC PACKAGE-6 | DMMT3904WQ-7-F vs MMDT3904-7 |
| FFB3904_NL | Fairchild Semiconductor Corporation | Check for Price | Small Signal Bipolar Transistor, 0.2A I(C), 40V V(BR)CEO, 2-Element, NPN, Silicon, SC-70, 6 PIN | DMMT3904WQ-7-F vs FFB3904_NL |
| FFB3904D87Z | Fairchild Semiconductor Corporation | Check for Price | Small Signal Bipolar Transistor, 0.2A I(C), 40V V(BR)CEO, 2-Element, NPN, Silicon, SC-70, 6 PIN | DMMT3904WQ-7-F vs FFB3904D87Z |
| DMMT3904 | Micro Commercial Components | Check for Price | Small Signal Bipolar Transistor, 0.2A I(C), 40V V(BR)CEO, 2-Element, NPN, Silicon, PLASTIC, ULTRA-SMALL SURFACE MOUNT PACKAGE-6 | DMMT3904WQ-7-F vs DMMT3904 |
DMMT3904WQ-7-F Frequently Asked Questions (FAQ)
-
The recommended PCB footprint for the DMMT3904WQ-7-F is a standard SOT23-6 package with a 1.5mm x 1.5mm body size. The recommended land pattern is available in the Diodes Incorporated's PCB Layout Guide.
-
To ensure proper biasing, the DMMT3904WQ-7-F requires a supply voltage (VCC) between 2.7V and 5.5V, and a bias current (Ibias) of 10uA to 100uA. The datasheet provides a recommended bias circuit and layout guidelines.
-
The DMMT3904WQ-7-F has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade if operated at the extreme ends of this range.
-
The DMMT3904WQ-7-F has an ESD rating of 2kV human body model (HBM) and 200V machine model (MM). To prevent ESD damage, handle the device with an anti-static wrist strap, mat, or other ESD protection methods.
-
The DMMT3904WQ-7-F should be stored in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 60%. Avoid storing the device in direct sunlight or near heat sources.
