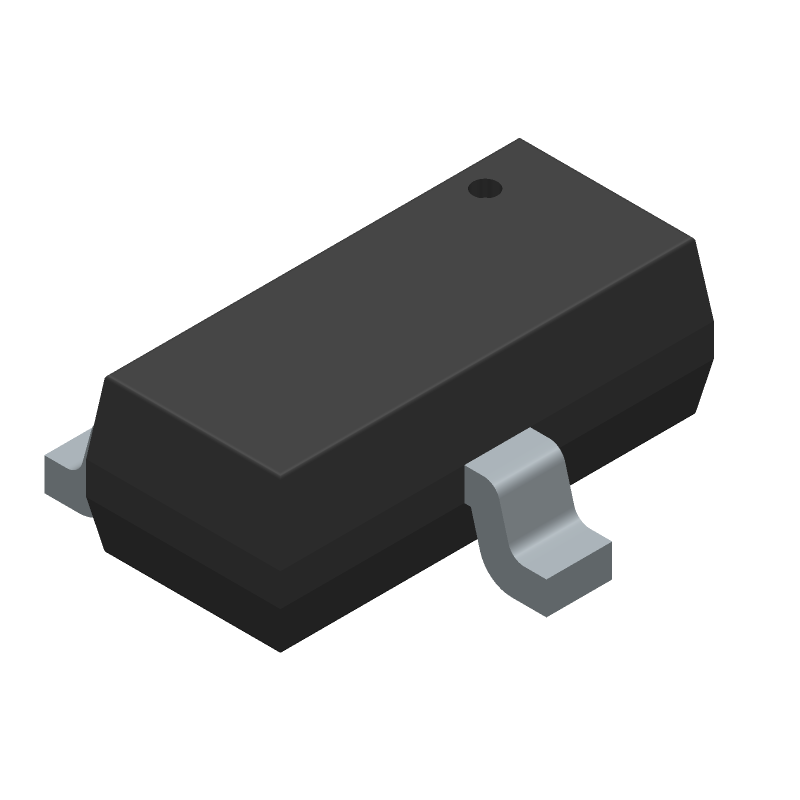

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DMG3406L-13 by Diodes Incorporated
Results Overview of DMG3406L-13 by Diodes Incorporated
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Energy and Power Systems
Renewable Energy
DMG3406L-13 Information
DMG3406L-13 by Diodes Incorporated is a Small Signal Field-Effect Transistor.
Small Signal Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for DMG3406L-13
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
28AK8405
|
Newark | Mosfet, N-Ch, 30V, 3.6A, Sot-23 Rohs Compliant: Yes |Diodes Inc. DMG3406L-13 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 4640 |
|
$0.1150 / $0.3760 | Buy Now |
|
DISTI #
DMG3406L-13DICT-ND
|
DigiKey | MOSFET N-CH 30V 3.6A SOT23 Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
72710 In Stock |
|
$0.0486 / $0.2100 | Buy Now |
|
DISTI #
DMG3406L-13
|
Avnet Americas | Power MOSFET, N Channel, 30 V, 3.6 A, 0.025 ohm, SOT-23, Surface Mount - Tape and Reel (Alt: DMG3406L-13) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 12 Weeks, 0 Days Container: Reel | 10000 Factory Stock |
|
$0.0397 / $0.0406 | Buy Now |
|
DISTI #
621-DMG3406L-13
|
Mouser Electronics | MOSFETs 30V N-Ch Enh Mode 50mOhm 10V 3.6A RoHS: Compliant | 174072 |
|
$0.0490 / $0.2100 | Buy Now |
|
DISTI #
V72:2272_06697703
|
Arrow Electronics | Trans MOSFET N-CH 30V 3.6A 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 1698 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2238 Container: Cut Strips | Americas - 9693 |
|
$0.0445 / $0.0589 | Buy Now |
|
DISTI #
DMG3406L-13
|
TME | Transistor: N-MOSFET, unipolar, 30V, 2.8A, 1.4W, SOT23 Min Qty: 1 | 0 |
|
$0.0458 / $0.2283 | RFQ |
|
DISTI #
DMG3406L-13
|
Avnet Asia | Power MOSFET, N Channel, 30 V, 3.6 A, 0.025 ohm, SOT-23, Surface Mount (Alt: DMG3406L-13) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 8 Weeks, 0 Days | 0 |
|
$0.0346 / $0.0387 | Buy Now |
|
DISTI #
DMG3406L-13
|
Avnet Silica | Power MOSFET N Channel 30 V 36 A 0025 ohm SOT23 Surface Mount (Alt: DMG3406L-13) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 10 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Vyrian | Transistors | 46668 |
|
RFQ |
Part Details for DMG3406L-13
DMG3406L-13 CAD Models
DMG3406L-13 Part Data Attributes
|
|
DMG3406L-13
Diodes Incorporated
Buy Now
Datasheet
|
Compare Parts:
DMG3406L-13
Diodes Incorporated
Small Signal Field-Effect Transistor,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | DIODES INC | |
| Package Description | SOT-23, 3 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Diodes Incorporated | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 30 V | |
| Drain Current-Max (ID) | 3.6 A | |
| Drain-source On Resistance-Max | 0.05 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| Feedback Cap-Max (Crss) | 43 pF | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 1.4 W | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
DMG3406L-13 Frequently Asked Questions (FAQ)
-
A good PCB layout for the DMG3406L-13 should include a thermal pad connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a solid copper plane on the PCB.
-
To ensure proper biasing, the DMG3406L-13 requires a stable input voltage (VIN) between 2.5V to 5.5V, and a bias voltage (VBIAS) between 1.2V to 3.3V. The bias voltage should be decoupled with a 1uF capacitor to ensure stability.
-
The maximum allowable power dissipation for the DMG3406L-13 is 1.4W. Exceeding this limit may cause the device to overheat, leading to reduced performance or even damage.
-
To protect the DMG3406L-13 from ESD and overvoltage, it is recommended to use a TVS (Transient Voltage Suppressor) diode or a zener diode on the input lines. Additionally, a 1kΩ resistor in series with the input can help limit the current in case of an overvoltage event.
-
The DMG3406L-13 is designed to operate at frequencies up to 1GHz. However, the optimal operating frequency range is between 100MHz to 500MHz, where the device exhibits the best performance and lowest power consumption.
