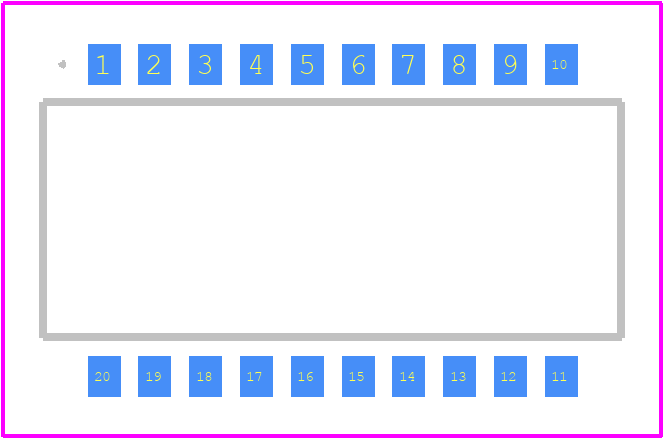

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DHS110 by knitter-switch
Results Overview of DHS110 by knitter-switch
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
DHS110 Information
DHS110 by knitter-switch is an Other Switch.
Other Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for DHS110
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
61579468
|
Verical | Switch DIP OFF ON SPST 10 Recessed Slide 0.1A 24VDC Gull Wing 1000Cycles 1.27mm SMD T/R RoHS: Compliant Min Qty: 10 Package Multiple: 1 | Americas - 100 |
|
$3.1800 | Buy Now |
|
DISTI #
DHS110
|
Chip One Stop | Electromechanicals RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 100 |
|
$3.1800 | Buy Now |
Part Details for DHS110
DHS110 CAD Models
DHS110 Part Data Attributes
|
|
DHS110
knitter-switch
Buy Now
Datasheet
|
Compare Parts:
DHS110
knitter-switch
Switch, SPST, Horizontal, 0.01A, 5VDC, Surface Mount-straight
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | KNITTER-SWITCH | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.70.00 | |
| Samacsys Manufacturer | KNITTER-SWITCH | |
| Actuator Angle | 180 deg | |
| Actuator Material | POLYAMIDE | |
| Actuator Type | SLIDE | |
| Additional Feature | ROHS COMPLIANT | |
| Body Breadth | 5.8928 mm | |
| Body Color | BLACK | |
| Body Height | 2.2098 mm | |
| Body Length or Diameter | 14.4272 mm | |
| Center Contact Material | BERYLLIUM COPPER | |
| Center Contact Plating | GOLD OVER NICKEL | |
| Contact Current(DC)-Max | 0.01 A | |
| Contact (DC) Max Rating R Load | 0.01A@5VDC | |
| Contact Function | OFF-ON | |
| Contact Resistance | 0.1 mΩ | |
| Contact Voltage(DC)-Max | 5 V | |
| Dielectric Withstand Volts | 250VAC V | |
| Electrical Life | 1000 Cycle(s) | |
| End Contact Material | BERYLLIUM COPPER | |
| End Contact Plating | GOLD OVER NICKEL | |
| Insulation Resistance | 100000000 Ω | |
| Insulator Material | POLYPHENYLENE SULPHIDE | |
| Mounting Feature | SURFACE MOUNT-STRAIGHT | |
| Number of Positions | 10 | |
| Operating Temperature-Max | 80 °C | |
| Operating Temperature-Min | -20 °C | |
| Surface Mount | NO | |
| Switch Action | HORIZONTAL | |
| Switch Function | SPST | |
| Terminal Material | BERYLLIUM COPPER | |
| Termination Type | SOLDER |
