Signal Circuits / Multiplexers or Switches / DG509ACWE+T
Datasheets
DG509ACWE+T by:

Monolithic CMOS Analog Multiplexers, 16-SOIC_W-300_MIL, 16 Pins, 0 to 70C

Part Details for DG509ACWE+T by Analog Devices Inc

Results Overview of DG509ACWE+T by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Communication and Networking Automotive

DG509ACWE+T Information

DG509ACWE+T by Analog Devices Inc is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.

A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.

Price & Stock for DG509ACWE+T

Part # Distributor Description Stock Price Buy
DISTI # 700-DG509ACWET
Mouser Electronics Multiplexer Switch ICs Monolithic CMOS Analog Multiplexers RoHS: Compliant 0
  • 1,000 $8.9100
$8.9100 Order Now
Analog Devices Inc Monolithic CMOS Analog Multipl Min Qty: 1000 Package Multiple: 1 1000
  • 1,000 $9.3929
$9.3929 Buy Now

Part Details for DG509ACWE+T

DG509ACWE+T CAD Models

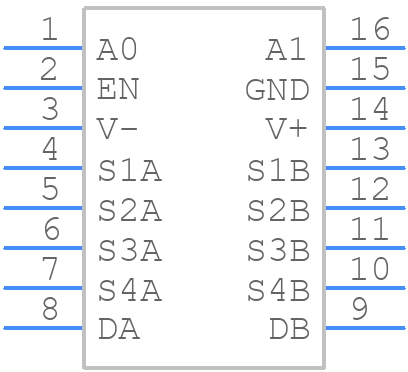

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

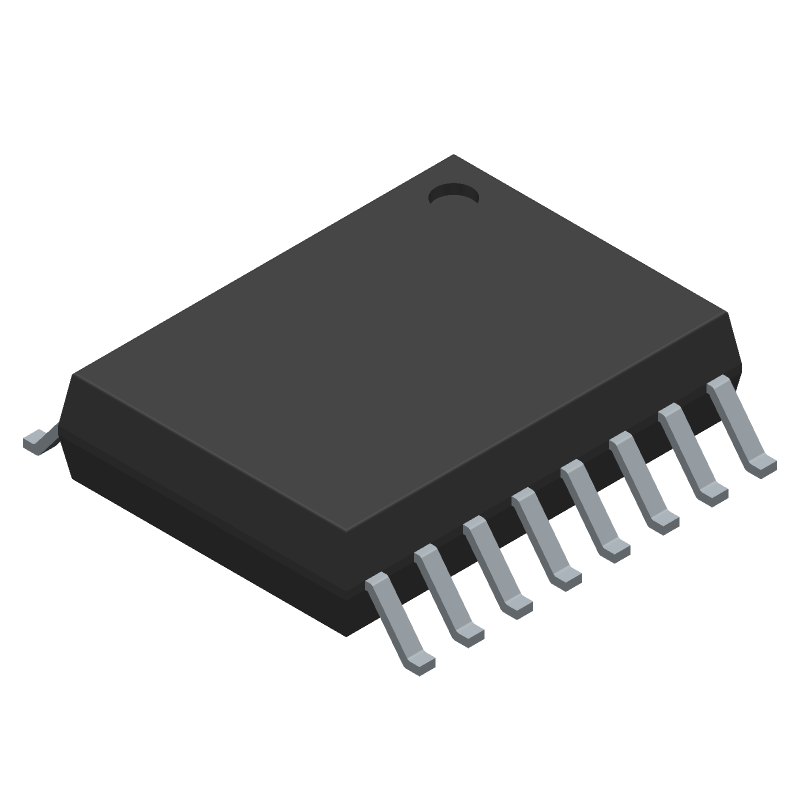

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

DG509ACWE+T Part Data Attributes

Parametric Data
DG509ACWE+T Analog Devices Inc
Buy Now Datasheet
Compare Parts:
DG509ACWE+T Analog Devices Inc Monolithic CMOS Analog Multiplexers, 16-SOIC_W-300_MIL, 16 Pins, 0 to 70C
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Part Package Code 16-SOIC_W-300_MIL
Package Description 0.300 INCH, SO-16
Pin Count 16
Manufacturer Package Code 16-SOIC_W-300_MIL
Reach Compliance Code compliant
Date Of Intro 1999-05-28
Samacsys Manufacturer Analog Devices
Analog IC - Other Type DIFFERENTIAL MULTIPLEXER
JESD-30 Code R-PDSO-G16
JESD-609 Code e3
Length 10.3 mm
Moisture Sensitivity Level 1
Neg Supply Voltage-Max (Vsup) -18 V
Neg Supply Voltage-Min (Vsup) -4.5 V
Neg Supply Voltage-Nom (Vsup) -15 V
Number of Channels 4
Number of Functions 1
Number of Terminals 16
Off-state Isolation-Nom 68 dB
On-state Resistance Match-Nom 10.2 Ω
On-state Resistance-Max (Ron) 350 Ω
Operating Temperature-Max 70 °C
Operating Temperature-Min
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP16,.4
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 2.65 mm
Signal Current-Max 0.02 A
Supply Current-Max (Isup) 0.2 mA
Supply Voltage-Max (Vsup) 18 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Nom (Vsup) 15 V
Surface Mount YES
Switch-off Time-Max 1000 ns
Switch-on Time-Max 1500 ns
Switching BREAK-BEFORE-MAKE
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 7.5 mm

Alternate Parts for DG509ACWE+T

This table gives cross-reference parts and alternative options found for DG509ACWE+T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DG509ACWE+T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
DG509ACWE+ Maxim Integrated Products $10.8300 Differential Multiplexer, 1 Func, 4 Channel, CMOS, PDSO16, ROHS COMPLIANT, SOP-16 DG509ACWE+T vs DG509ACWE+
DG509ACWE+T Maxim Integrated Products Check for Price Differential Multiplexer, 1 Func, 4 Channel, CMOS, PDSO16, 0.300 INCH, SO-16 DG509ACWE+T vs DG509ACWE+T
DG509ACY-T Intersil Corporation Check for Price 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, PDSO16 DG509ACWE+T vs DG509ACY-T
DG509ADY+T Analog Devices Inc Check for Price Monolithic CMOS Analog Multiplexers, 16-SOIC_N-150_MIL, 16 Pins, -40 to 85C DG509ACWE+T vs DG509ADY+T
DG509AEWE+ Maxim Integrated Products Check for Price Differential Multiplexer, 1 Func, 4 Channel, CMOS, PDSO16, ROHS COMPLIANT, SOP-16 DG509ACWE+T vs DG509AEWE+
DG509ACWE Rochester Electronics LLC Check for Price Differential Multiplexer, 1 Func, 4 Channel, CMOS, PDSO16, SOP-16 DG509ACWE+T vs DG509ACWE
DG509AEWE+T Maxim Integrated Products Check for Price Differential Multiplexer, 1 Func, 4 Channel, CMOS, PDSO16, SO-16 DG509ACWE+T vs DG509AEWE+T
DG509ADY+T Maxim Integrated Products Check for Price Differential Multiplexer, 1 Func, 4 Channel, CMOS, PDSO16, SO-16 DG509ACWE+T vs DG509ADY+T
DG509AEWE+ Analog Devices Inc Check for Price Monolithic CMOS Analog Multiplexers, 16-SOIC_W-300_MIL, 16 Pins, -40 to 85C DG509ACWE+T vs DG509AEWE+
DG509AEWE+T Analog Devices Inc Check for Price Monolithic CMOS Analog Multiplexers, 16-SOIC_W-300_MIL, 16 Pins, -40 to 85C DG509ACWE+T vs DG509AEWE+T
Part Number Manufacturer Composite Price Description Compare
HI3-0549-9 Harris Semiconductor Check for Price Differential Multiplexer, 1 Func, 4 Channel, CMOS, PDIP16 DG509ACWE+T vs HI3-0549-9
DG413DJ Rochester Electronics LLC Check for Price SPST, 4 Func, 1 Channel, CMOS, PDIP16, DG509ACWE+T vs DG413DJ
MAX339MJE Maxim Integrated Products Check for Price Differential Multiplexer, 1 Func, 4 Channel, CMOS, CDIP16, 0.300 INCH, CERAMIC, DIP-16 DG509ACWE+T vs MAX339MJE
PI5A392AP Pericom Semiconductor Corporation Check for Price SPST, 4 Func, 1 Channel, CMOS, PDIP16, 0.300 INCH, PLASTIC, DIP-16 DG509ACWE+T vs PI5A392AP
DG408AK Maxim Integrated Products Check for Price Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, CDIP16, CERAMIC, DIP-16 DG509ACWE+T vs DG408AK
HI3-0508-5 Rochester Electronics LLC Check for Price Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, PDIP16, PLASTIC, MS-001-BB, DIP-16 DG509ACWE+T vs HI3-0508-5
5962R9674201TEC Harris Semiconductor Check for Price Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, CDIP16, CERAMIC, DIP-16 DG509ACWE+T vs 5962R9674201TEC
MAX358EWE+T Analog Devices Inc Check for Price Fault-Protected Analog Multiplexers, 16-SOIC_W-300_MIL, 16 Pins, -40 to 85C DG509ACWE+T vs MAX358EWE+T
ADG609BRU Analog Devices Inc Check for Price LC2MOS, ± 5 V, 4-Channel High Performance Analog Multiplexer DG509ACWE+T vs ADG609BRU
DG508ACJ Intersil Corporation Check for Price 8-CHANNEL, SGL ENDED MULTIPLEXER, PDIP16, PLASTIC, MS-001BB, DIP-16 DG509ACWE+T vs DG508ACJ
