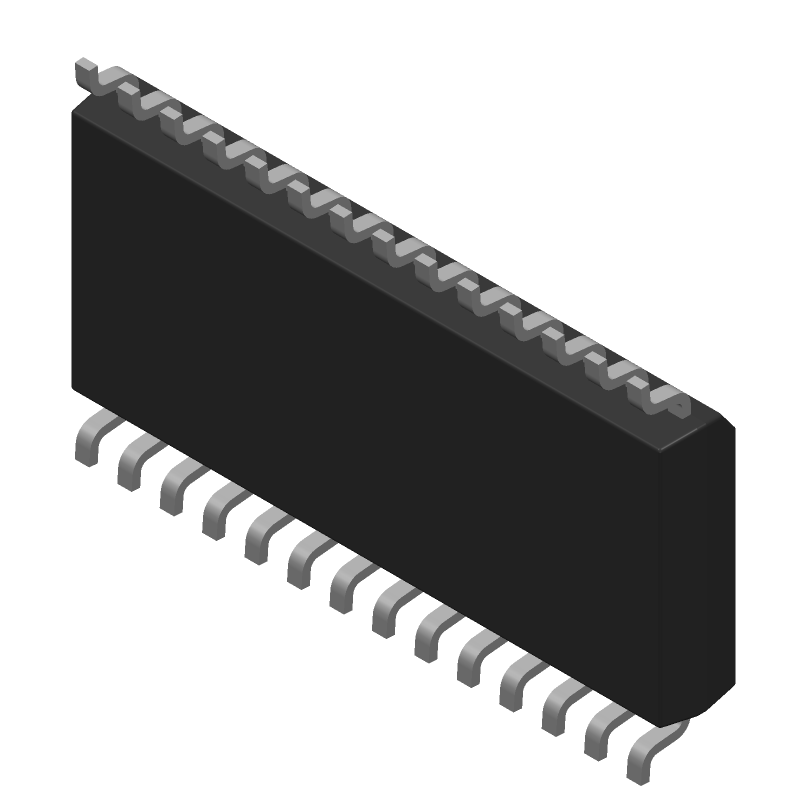

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DG407DW-E3 by Vishay Intertechnologies
Results Overview of DG407DW-E3 by Vishay Intertechnologies
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Aerospace and Defense
Communication and Networking
DG407DW-E3 Information
DG407DW-E3 by Vishay Intertechnologies is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for DG407DW-E3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
56AJ9793
|
Newark | Analogue Mux/Demux, 8:1, -40 To 85Deg C Rohs Compliant: Yes |Vishay DG407DW-E3 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 15 |
|
$6.7700 / $11.1600 | Buy Now |
|
DISTI #
DG407DW-E3
|
Avnet Americas | Analog Multiplexer Dual 8:1 28-Pin SOIC W - Bulk (Alt: DG407DW-E3) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 26 Weeks, 0 Days Container: Bulk | 0 |
|
$4.5525 / $4.9294 | Buy Now |
|
DISTI #
781-DG407DW-E3
|
Mouser Electronics | Multiplexer Switch ICs SOIC-28 MULTIPLEXER SW DUAL RoHS: Compliant | 212 |
|
$5.9600 / $9.6800 | Buy Now |
|
|
Future Electronics | DG407 Series 20 V Dual 8-Channel High-Performance CMOS Analog Multiplexer RoHS: Compliant pbFree: Yes Min Qty: 25 Package Multiple: 25 Container: Tube | 650Tube |
|
$6.4000 / $6.5600 | Buy Now |
|
DISTI #
87019542
|
Verical | Analog Multiplexer Dual 8:1 28-Pin SOIC W RoHS: Compliant Min Qty: 25 Package Multiple: 25 Date Code: 2444 | Americas - 350 |
|
$7.6440 / $8.2516 | Buy Now |
|
DISTI #
88140660
|
Verical | Analog Multiplexer Dual 8:1 28-Pin SOIC W RoHS: Compliant Min Qty: 6 Package Multiple: 1 | Americas - 52 |
|
$6.6200 / $9.5500 | Buy Now |
|
|
Bristol Electronics | 10 |
|
RFQ | ||
|
DISTI #
DG407DW-E3
|
TTI | Multiplexer Switch ICs SOIC-28 MULTIPLEXER SW DUAL RoHS: Compliant pbFree: Pb-Free Min Qty: 250 Package Multiple: 50 Container: Tube | Americas - 0 |
|
$5.8600 / $6.2200 | Buy Now |
|
|
Future Electronics | DG407 Series 20 V Dual 8-Channel High-Performance CMOS Analog Multiplexer Min Qty: 25 Package Multiple: 25 |
650 null |
|
$6.4000 / $6.5600 | Buy Now |
|
DISTI #
DG407DW-E3
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tube | 52 |
|
$6.0500 / $9.5500 | Buy Now |
Part Details for DG407DW-E3
DG407DW-E3 CAD Models
DG407DW-E3 Part Data Attributes
|
|
DG407DW-E3
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
DG407DW-E3
Vishay Intertechnologies
Differential Multiplexer, 1 Func, 8 Channel, CMOS, PDSO28, SOIC-28
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | SOIC-28 | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 53 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Analog IC - Other Type | DIFFERENTIAL MULTIPLEXER | |
| JESD-30 Code | R-PDSO-G28 | |
| JESD-609 Code | e3 | |
| Length | 17.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage-Max (Vsup) | -20 V | |
| Neg Supply Voltage-Min (Vsup) | -5 V | |
| Neg Supply Voltage-Nom (Vsup) | -15 V | |
| Number of Channels | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 28 | |
| Off-state Isolation-Nom | 69 dB | |
| On-state Resistance Match-Nom | 5 Ω | |
| On-state Resistance-Max (Ron) | 100 Ω | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP28,.4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.54 mm | |
| Signal Current-Max | 0.03 A | |
| Supply Voltage-Max (Vsup) | 20 V | |
| Supply Voltage-Min (Vsup) | 5 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | YES | |
| Switch-off Time-Max | 300 ns | |
| Switch-on Time-Max | 400 ns | |
| Switching | BREAK-BEFORE-MAKE | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7.5 mm |
Alternate Parts for DG407DW-E3
This table gives cross-reference parts and alternative options found for DG407DW-E3. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DG407DW-E3, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| DG407DW | Temic Semiconductors | Check for Price | Differential Multiplexer, 1 Func, 8 Channel, CMOS, PDSO28, | DG407DW-E3 vs DG407DW |
