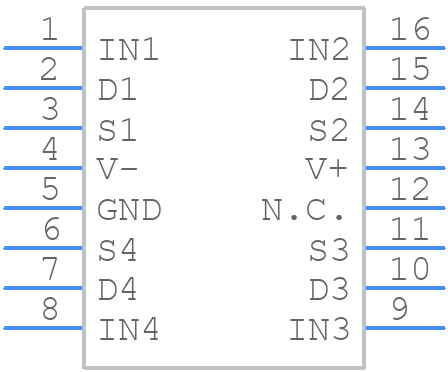

Part Symbol
-

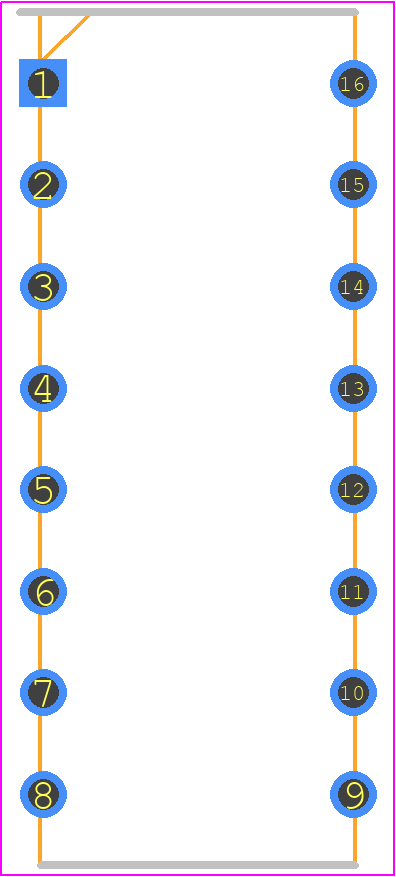

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DG201AAK/883B by Analog Devices Inc
Results Overview of DG201AAK/883B by Analog Devices Inc
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Consumer Electronics
Internet of Things (IoT)
Audio and Video Systems
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Entertainment and Gaming
Communication and Networking
Automotive
DG201AAK/883B Information
DG201AAK/883B by Analog Devices Inc is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for DG201AAK/883B
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Analog Devices Inc | Quad SPST CMOS Analog Switches Package Multiple: 1 | 571 |
|
Buy Now |
Part Details for DG201AAK/883B
DG201AAK/883B CAD Models
DG201AAK/883B Part Data Attributes
|
|
DG201AAK/883B
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
DG201AAK/883B
Analog Devices Inc
Quad SPST CMOS Analog Switches, 16-CERDIP-300_MIL, 16 Pins, -55 to 125C
|
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 16-CERDIP-300_MIL | |
| Package Description | 0.300 INCH, CERAMIC, DIP-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | 16-CERDIP-300_MIL | |
| Reach Compliance Code | not_compliant | |
| Date Of Intro | 1999-05-28 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | SPST | |
| JESD-30 Code | R-GDIP-T16 | |
| JESD-609 Code | e0 | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage-Max (Vsup) | -18 V | |
| Neg Supply Voltage-Min (Vsup) | -4.5 V | |
| Neg Supply Voltage-Nom (Vsup) | -15 V | |
| Normal Position | NC | |
| Number of Channels | 1 | |
| Number of Functions | 4 | |
| Number of Terminals | 16 | |
| Off-state Isolation-Nom | 70 dB | |
| On-state Resistance-Max (Ron) | 175 Ω | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output | SEPARATE OUTPUT | |
| Package Body Material | CERAMIC, GLASS-SEALED | |
| Package Code | DIP | |
| Package Equivalence Code | DIP16,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Qualification Status | Not Qualified | |
| Screening Level | MIL-STD-883 Class B | |
| Seated Height-Max | 5.08 mm | |
| Supply Voltage-Max (Vsup) | 18 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | NO | |
| Switch-off Time-Max | 450 ns | |
| Switch-on Time-Max | 600 ns | |
| Switching | BREAK-BEFORE-MAKE | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Width | 7.62 mm |
Alternate Parts for DG201AAK/883B
This table gives cross-reference parts and alternative options found for DG201AAK/883B. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DG201AAK/883B, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 7705301EX | Intersil Corporation | Check for Price | QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, CDIP16, CERAMIC, DIP-16 | DG201AAK/883B vs 7705301EX |
| DG201AAK/883 | Allegro MicroSystems LLC | Check for Price | SPST, | DG201AAK/883B vs DG201AAK/883 |
| DG201AAK/883 | Maxim Integrated Products | Check for Price | SPST, 4 Func, 1 Channel, CMOS, CDIP16, 0.300 INCH, CERAMIC, DIP-16 | DG201AAK/883B vs DG201AAK/883 |
| 7705301EA | Temic Semiconductors | Check for Price | SPST, 4 Func, 1 Channel, CMOS, CDIP16, | DG201AAK/883B vs 7705301EA |
| DG201AAK/HR | Maxim Integrated Products | Check for Price | SPST, 4 Func, 1 Channel, CMOS, CDIP16, 0.300 INCH, CERAMIC, DIP-16 | DG201AAK/883B vs DG201AAK/HR |
| DG201AAK/883B | Maxim Integrated Products | Check for Price | SPST, 4 Func, 1 Channel, CMOS, CDIP16, 0.300 INCH, CERAMIC, DIP-16 | DG201AAK/883B vs DG201AAK/883B |
| 7705301EA | Vishay Siliconix | Check for Price | SPST, 4 Func, CMOS, CDIP16 | DG201AAK/883B vs 7705301EA |
| 7705301EA | Maxim Integrated Products | Check for Price | SPST, 4 Func, 1 Channel, CMOS, CDIP16, CERAMIC, DIP-16 | DG201AAK/883B vs 7705301EA |
| 7705301EA | Intersil Corporation | Check for Price | QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, CDIP16, CERAMIC, DIP-16 | DG201AAK/883B vs 7705301EA |
| DG201AAK | Vishay Intertechnologies | Check for Price | SPST, 4 Func, CMOS, CDIP16, | DG201AAK/883B vs DG201AAK |
DG201AAK/883B Frequently Asked Questions (FAQ)
-
A good PCB layout for the DG201AAK/883B should minimize parasitic inductance and capacitance. Keep the analog and digital grounds separate, and use a solid ground plane to reduce noise. Place the device close to the power supply, and use short, wide traces for the power and ground connections.
-
To ensure reliability in high-temperature applications, follow proper derating guidelines, and consider using a heat sink or thermal pad to dissipate heat. Also, ensure that the device is operated within its specified temperature range, and avoid exceeding the maximum junction temperature.
-
Potential sources of noise and interference in the DG201AAK/883B include power supply noise, digital noise, and electromagnetic interference (EMI). To mitigate these, use a low-noise power supply, separate analog and digital grounds, and use shielding or filtering to reduce EMI.
-
The DG201AAK/883B is a radiation-hardened device, but it's essential to follow the specific requirements for radiation-hardened applications, such as those outlined in the NASA or European Space Agency (ESA) standards. Ensure that the device is properly screened and qualified for the specific radiation environment.
-
To troubleshoot common issues with the DG201AAK/883B, start by checking the power supply voltage, output voltage, and current consumption. Verify that the device is properly configured, and check for any signs of overheating or physical damage. Consult the datasheet and application notes for troubleshooting guidelines and fault diagnosis procedures.
