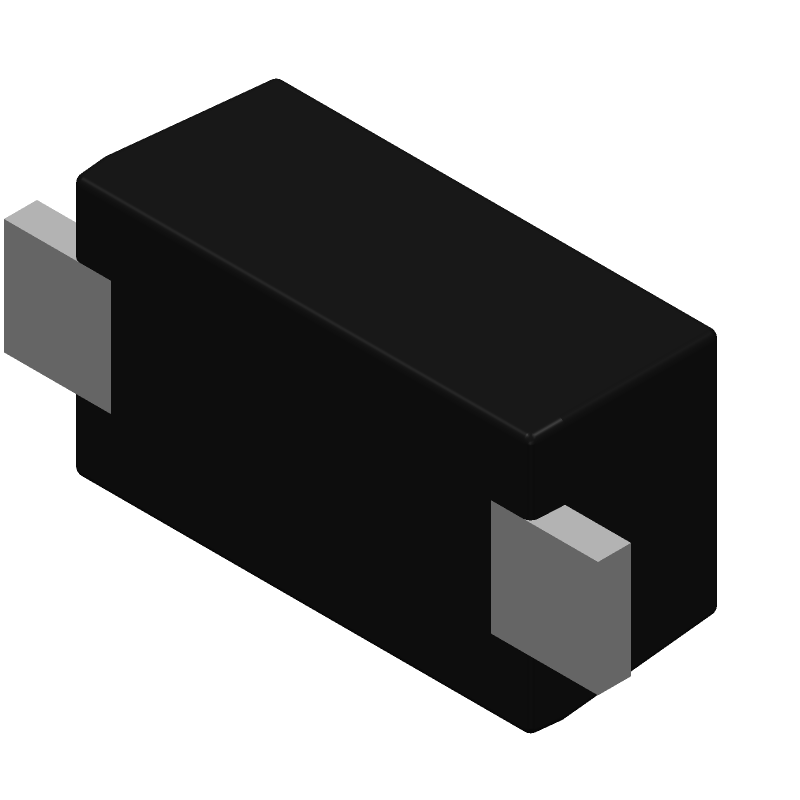

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DFLZ5V6-TP by Micro Commercial Components
Results Overview of DFLZ5V6-TP by Micro Commercial Components
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
Electronic Manufacturing
Automotive
DFLZ5V6-TP Information
DFLZ5V6-TP by Micro Commercial Components is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for DFLZ5V6-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
DFLZ5V6-TP-ND
|
DigiKey | DIODE ZENER 5.6V 1W SOD123FL Min Qty: 2500 Lead time: 18 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.0902 / $0.1306 | Buy Now |
|
DISTI #
833-DFLZ5V6-TP
|
Mouser Electronics | Zener Diodes 1.0W Zener Diode 1000mW 1.2Vf 45mA RoHS: Compliant | 0 |
|
$0.0870 / $0.4200 | Order Now |
|
DISTI #
DFLZ5V6-TP
|
TME | Diode: Zener, 1W, 5.6V, SMD, reel,tape, SOD123F, single diode, 10uA Min Qty: 1 | 0 |
|
$0.1190 / $0.2290 | RFQ |
Part Details for DFLZ5V6-TP
DFLZ5V6-TP CAD Models
DFLZ5V6-TP Part Data Attributes
|
|
DFLZ5V6-TP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
DFLZ5V6-TP
Micro Commercial Components
Zener Diode,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Samacsys Manufacturer | MCC | |
| Diode Type | ZENER DIODE | |
| Dynamic Impedance-Max | 5 Ω | |
| JESD-30 Code | R-PDSO-F2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Terminals | 2 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Dissipation-Max | 1 W | |
| Reference Voltage-Nom | 5.6 V | |
| Reverse Current-Max | 0.01 µA | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Working Test Current | 45 mA |
