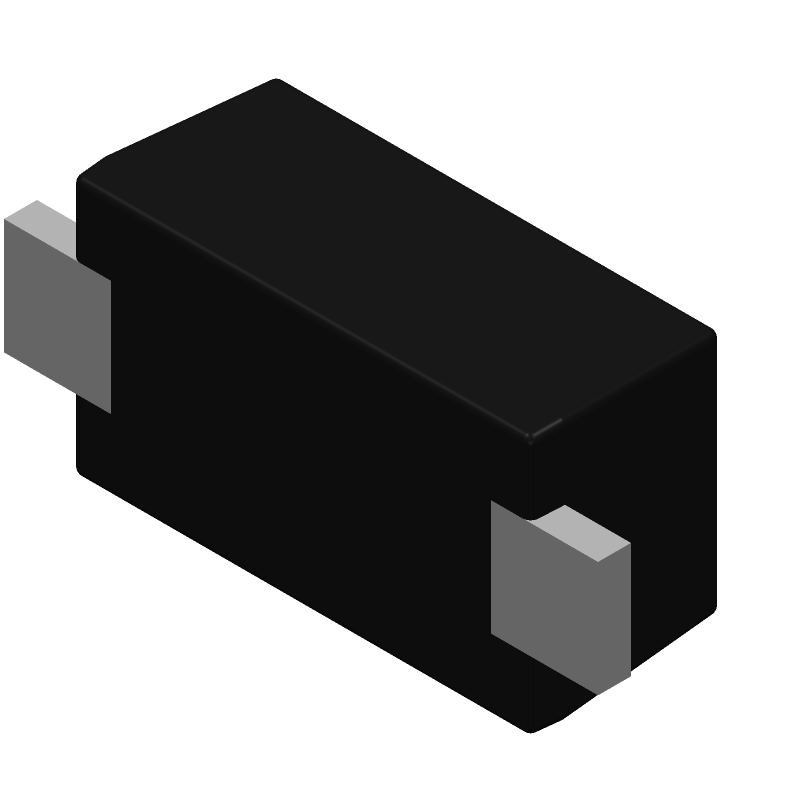

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DFLZ5V1-TP by Micro Commercial Components
Results Overview of DFLZ5V1-TP by Micro Commercial Components
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
DFLZ5V1-TP Information
DFLZ5V1-TP by Micro Commercial Components is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for DFLZ5V1-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
DFLZ5V1-TP-ND
|
DigiKey | DIODE ZENER 5.1V 1W SOD123FL Min Qty: 2500 Lead time: 16 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.0902 / $0.1306 | Buy Now |
|
DISTI #
833-DFLZ5V1-TP
|
Mouser Electronics | Zener Diodes 1.0W Zener Diode 1000mW 1.2Vf 49mA RoHS: Compliant | 0 |
|
$0.0870 / $0.4200 | Order Now |
|
DISTI #
63488499
|
Verical | Diode Zener Single 5.1V 5% 1000mW 2-Pin SOD-123FL T/R Min Qty: 2500 Package Multiple: 2500 | Americas - 22500 |
|
$0.0620 | Buy Now |
|
DISTI #
DFLZ5V1-TP
|
TME | Diode: Zener, 1W, 5.1V, SMD, reel,tape, SOD123F, single diode, 10uA Min Qty: 1 | 0 |
|
$0.1190 / $0.2290 | RFQ |
Part Details for DFLZ5V1-TP
DFLZ5V1-TP CAD Models
DFLZ5V1-TP Part Data Attributes
|
|
DFLZ5V1-TP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
DFLZ5V1-TP
Micro Commercial Components
Zener Diode,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Package Description | SOD-123FL, 2 PIN | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Samacsys Manufacturer | MCC | |
| Diode Type | ZENER DIODE | |
| Dynamic Impedance-Max | 7 Ω | |
| JESD-30 Code | R-PDSO-F2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Terminals | 2 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Dissipation-Max | 1 W | |
| Reference Voltage-Nom | 5.1 V | |
| Reverse Current-Max | 0.01 µA | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Working Test Current | 49 mA |
Alternate Parts for DFLZ5V1-TP
This table gives cross-reference parts and alternative options found for DFLZ5V1-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DFLZ5V1-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| DFLZ5V1-TP-HF | Micro Commercial Components | Check for Price | Zener Diode, | DFLZ5V1-TP vs DFLZ5V1-TP-HF |
| 1N4733AW-TP | Micro Commercial Components | Check for Price | Zener Diode, | DFLZ5V1-TP vs 1N4733AW-TP |
DFLZ5V1-TP Frequently Asked Questions (FAQ)
-
The recommended storage temperature for DFLZ5V1-TP is -40°C to 100°C.
-
Yes, the DFLZ5V1-TP is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
-
The maximum power dissipation of the DFLZ5V1-TP is 1.5 watts.
-
Yes, the DFLZ5V1-TP is suitable for high-reliability applications due to its high-quality construction and rigorous testing.
-
The typical operating voltage range for the DFLZ5V1-TP is 3.3V to 5.5V.
