Switches / Rocker Switches / DF62J12S2AHQA
Datasheets
DF62J12S2AHQA by:

ROCKER SWITCH, DPST, LATCHED, 6A, 48VDC, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT

Part Details for DF62J12S2AHQA by C&K

Results Overview of DF62J12S2AHQA by C&K

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

DF62J12S2AHQA Information

DF62J12S2AHQA by C&K is a Rocker Switch.
Rocker Switches are under the broader part category of Switches.

Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.

Price & Stock for DF62J12S2AHQA

Part # Distributor Description Stock Price Buy
DISTI # 39M8048
Newark Rocker Switch Dpst 16A (Ac) 6A (Dc) 125 V Panel M |C&k Components DF62J12S2AHQA RoHS: Not Compliant Min Qty: 15 Package Multiple: 1 Date Code: 0 Container: Bulk 2840
  • 10 $8.5700
  • 25 $7.7900
  • 50 $7.5500
  • 100 $7.3100
$7.3100 / $8.5700 Buy Now
DISTI # 79X5560
Newark Rocker Switch, Dpst, On-Off, Black, Panel, 16 A, 250 V Rohs Compliant: Yes |C&k Components DF62J12S2AHQA RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 363
  • 1 $10.9400
  • 5 $10.1100
  • 10 $9.6900
  • 25 $8.8500
  • 50 $8.5900
  • 100 $8.3300
  • 250 $7.2800
$7.2800 / $10.9400 Buy Now
DISTI # 34AH8829
Newark Rocker Sw, Dpst, 16A, 250Vac, Panel, Switch Operation:On-Off, Contact Configuration:Dpst, Illumination:Non Illuminated, Switch Mounting:Through Hole, Actuator/Cap Colour:Black, Product Range:Df62 Series, Contact Current Ac Max:16A Rohs Compliant: Yes |C&k Components DF62J12S2AHQA RoHS: Compliant Min Qty: 80 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 50 $8.3000
  • 100 $8.0700
$8.0700 / $8.3000 Buy Now
DISTI # CKN2062-ND
DigiKey SWITCH ROCKER DPST 16A 125V Min Qty: 1 Lead time: 25 Weeks Container: Tube 937
In Stock
  • 1 $10.3800
  • 16 $8.6975
  • 32 $8.3191
  • 64 $7.9566
  • 112 $7.6751
  • 256 $7.2766
  • 512 $6.9578
  • 1,008 $6.6593
$6.6593 / $10.3800 Buy Now
DISTI # 611-DF62J12S2AHQA
Mouser Electronics Rocker Switches 16A DPST BLC R/A PC RoHS: Compliant 11
  • 1 $9.7900
  • 10 $7.1100
  • 25 $6.7500
  • 112 $6.6100
  • 256 $6.5600
  • 512 $6.3200
  • 1,008 $6.1200
$6.1200 / $9.7900 Buy Now
DISTI # 70128398
RS Switch, Rocker, DPST, OFF-ON, Blk Rckr Act, Blk SubPanel, O/I Legend,16A,250VAC, R/A PC Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks, 0 Days Container: Bulk 0
  • 1 $9.8900
  • 5 $9.1000
  • 10 $8.7000
  • 20 $7.9100
  • 100 $7.4200
$7.4200 / $9.8900 RFQ
Future Electronics DF Series 16 A Black Mini DPST Off-On Right Angle Power Rocker Switch RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks Container: Tube 312
Tube
  • 1 $6.3100
  • 5 $6.2600
  • 20 $6.1800
  • 40 $6.1400
  • 100 $6.0500
$6.0500 / $6.3100 Buy Now
Future Electronics DF Series 16 A Black Mini DPST Off-On Right Angle Power Rocker Switch RoHS: Compliant pbFree: Yes Min Qty: 80 Package Multiple: 16 Container: Tube 0
Tube
  • 1 $6.6100
  • 4 $6.5300
  • 15 $6.4500
  • 40 $6.3900
  • 100 $6.3000
$6.3000 / $6.6100 Buy Now
DISTI # 66981717
Verical Switch Rocker OFF ON DPST PC Pins Curved Rocker 16A 250VAC 60VDC 372.85VA Bulk RoHS: Compliant Min Qty: 10 Package Multiple: 1 Americas - 2708
  • 1 $6.3800
  • 50 $6.2600
  • 80 $5.9000
$5.9000 / $6.3800 Buy Now
DISTI # 59828291
Verical Switch Rocker OFF ON DPST PC Pins Curved Rocker 16A 250VAC 60VDC 372.85VA Bulk RoHS: Compliant Min Qty: 16 Package Multiple: 16 Date Code: 2139 Americas - 2544
  • 16 $7.9690
  • 512 $7.5530
  • 1,008 $7.4100
  • 2,576 $7.3710
  • 5,152 $7.3320
$7.3320 / $7.9690 Buy Now
DISTI # 88032243
Verical Switch Rocker OFF ON DPST PC Pins Curved Rocker 16A 250VAC 60VDC 372.85VA Bulk RoHS: Compliant Min Qty: 16 Package Multiple: 16 Date Code: 2508 Americas - 176
  • 16 $9.2512
  • 25 $8.8200
  • 50 $8.5848
  • 64 $7.7974
  • 112 $7.5216
$7.5216 / $9.2512 Buy Now
DISTI # 86983366
Verical Switch Rocker OFF ON DPST PC Pins Curved Rocker 16A 250VAC 60VDC 372.85VA Bulk RoHS: Compliant Min Qty: 9 Package Multiple: 1 Date Code: 2301 Americas - 160
  • 9 $9.2512
  • 25 $8.8200
  • 50 $8.5848
  • 64 $7.7974
  • 112 $7.5216
$7.5216 / $9.2512 Buy Now
DISTI # 87332182
Verical Switch Rocker OFF ON DPST PC Pins Curved Rocker 16A 250VAC 60VDC 372.85VA Bulk RoHS: Compliant Min Qty: 7 Package Multiple: 1 Americas - 98
  • 7 $10.1080
$10.1080 Buy Now
Bristol Electronics   21
RFQ
Bristol Electronics   5
RFQ
Quest Components ROCKER SWITCH, DPST, LATCHED, 6A, 48VDC, THROUGH HOLE-RIGHT ANGLE 128
  • 1 $12.6405
  • 23 $10.3933
  • 97 $9.8315
$9.8315 / $12.6405 Buy Now
Quest Components ROCKER SWITCH, DPST, LATCHED, 6A, 48VDC, THROUGH HOLE-RIGHT ANGLE 4
  • 1 $12.5550
  • 2 $10.4625
  • 3 $9.2070
$9.2070 / $12.5550 Buy Now
Quest Components ROCKER SWITCH, DPST, LATCHED, 6A, 48VDC, THROUGH HOLE-RIGHT ANGLE 3
  • 1 $12.9150
  • 2 $8.6100
  • 4 $6.4575
$6.4575 / $12.9150 Buy Now
DISTI # DF62J12S2AHQA
TTI Rocker Switches 16A DPST BLC R/A PC RoHS: Compliant Min Qty: 16 Package Multiple: 16 Container: Each Americas - 112
In Stock
  • 16 $6.5800
  • 32 $6.4500
  • 64 $6.3200
  • 112 $6.2000
  • 256 $6.0800
  • 512 $5.9600
  • 1,008 $5.8400
$5.8400 / $6.5800 Buy Now
Future Electronics DF Series 16 A Black Mini DPST Off-On Right Angle Power Rocker Switch Min Qty: 1 Package Multiple: 1 312
null
  • 1 $6.3100
  • 5 $6.2600
  • 20 $6.1800
  • 40 $6.1400
  • 100 $6.0500
$6.0500 / $6.3100 Buy Now
DISTI # DF62J12S2AHQA
TME ROCKER, SPST, Pos: 2, ON-OFF, 16A/250VAC, 6A/48VDC, black, none, DF Min Qty: 1 156
  • 1 $8.1700
  • 5 $7.2500
  • 16 $6.8000
  • 32 $6.3500
$6.3500 / $8.1700 Buy Now
DISTI # 000000000000020361
Sager Rocker Switches 16A DPST BLC R/A PC Min Qty: 1 4
  • 1 $7.6200
  • 21 $6.7500
  • 53 $6.6500
  • 106 $6.3000
  • 212 $6.1000
  • 423 $5.9100
$5.9100 / $7.6200 Buy Now
DISTI # SMC-DF62J12S2AHQA
Sensible Micro Corporation Switch Power Rocker Dpst 16A 1 RoHS: Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Date Code: 1720 Container: Tubes 70
  • 100 $3.3247
  • 500 $3.2395
  • 1,000 $3.0690
$3.0690 / $3.3247 RFQ
New Advantage Corporation DF Series 16 A Black Mini DPST Off-On Right Angle Power Rocker Switch RoHS: Compliant Min Qty: 1 Package Multiple: 16 240
  • 16 $10.5200
  • 240 $9.7100
$9.7100 / $10.5200 Buy Now

Part Details for DF62J12S2AHQA

DF62J12S2AHQA CAD Models

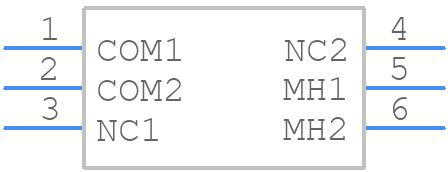

  • Part Symbol

    Part Symbol

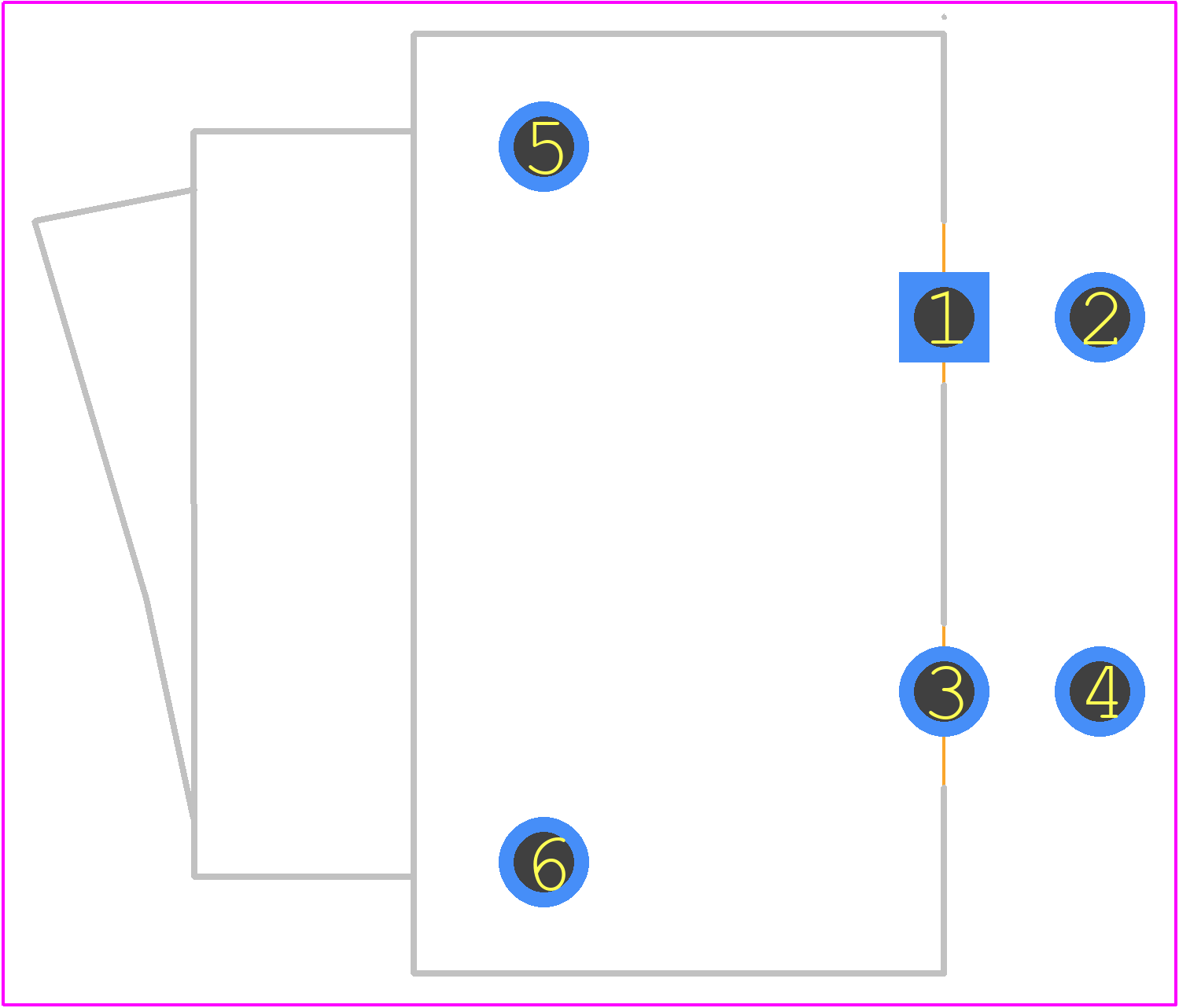

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

DF62J12S2AHQA Part Data Attributes

Parametric Data
DF62J12S2AHQA C&K
Buy Now Datasheet
Compare Parts:
DF62J12S2AHQA C&K ROCKER SWITCH, DPST, LATCHED, 6A, 48VDC, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer C & K COMPONENTS LLC
Package Description ROHS COMPLIANT
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.50.90.65
Factory Lead Time 24 Weeks
Samacsys Manufacturer C & K COMPONENTS
Actuator Color BLACK
Actuator Finish MATTE
Actuator Length 0.2 inch
Actuator Material NYLON
Actuator Type ROCKER
Body Breadth 13.08 mm
Body Color BLACK
Body Height 23.39 mm
Body Length or Diameter 29.46 mm
Center Contact Material SILVER
Center Contact Plating SILVER
Contact (AC) Max Power Rating R Load 0.25HP@125VAC
Contact (AC) Max Rating R Load 16A@250VAC
Contact Current(AC)-Max 16 A
Contact Current(DC)-Max 6 A
Contact (DC) Max Rating R Load 6A@48VDC
Contact Function OFF-ON
Contact Timing MAKE-BEFORE-BREAK
Contact Voltage(AC)-Max 250 V
Contact Voltage(DC)-Max 48 V
Dielectric Withstand Volts 1000VRMS V
Electrical Life 10000 Cycle(s)
End Contact Material SILVER
End Contact Plating SILVER
Housing Material NYLON
Insulation Resistance 1000000000 Ω
Insulator Material NYLON
JESD-609 Code e4
Mounting Feature THROUGH HOLE-RIGHT ANGLE
Operating Temperature-Max 85 °C
Operating Temperature-Min -20 °C
PCB Hole Count 6
Surface Mount NO
Switch Action MOMENTARY
Switch Function DPST
Switch Type ROCKER SWITCH
Terminal Finish SILVER
Terminal Material COPPER
Termination Type SOLDER

DF62J12S2AHQA Related Parts

DF62J12S2AHQA Frequently Asked Questions (FAQ)

  • Use a soft, dry brush or a lint-free cloth to gently remove any debris or contaminants. Avoid using chemicals, solvents, or liquids, as they may damage the switch's electrical contacts or compromise its performance.

  • Mount the switch on a flat, stable surface using the recommended screw type and torque specification. Ensure the switch is securely fastened to prevent vibration or movement, which can cause electrical contact issues or mechanical failure.

  • The recommended operating temperature range for the DF62J12S2AHQA switch is -20°C to 85°C (-4°F to 185°F). Operating outside this range may affect the switch's performance, reliability, or lifespan.

  • While the switch is designed to withstand some vibration and shock, it's essential to evaluate the specific environmental conditions and ensure the switch is properly mounted and secured. Consult with a C&K representative or a qualified engineer to determine the switch's suitability for your application.

  • Handle the switch with ESD-protective materials, such as wrist straps, mats, or bags. Ground yourself before touching the switch, and avoid touching the switch's electrical contacts or pins to prevent ESD damage.
