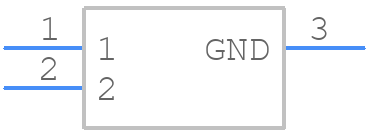

Part Symbol
-
Footprint
-

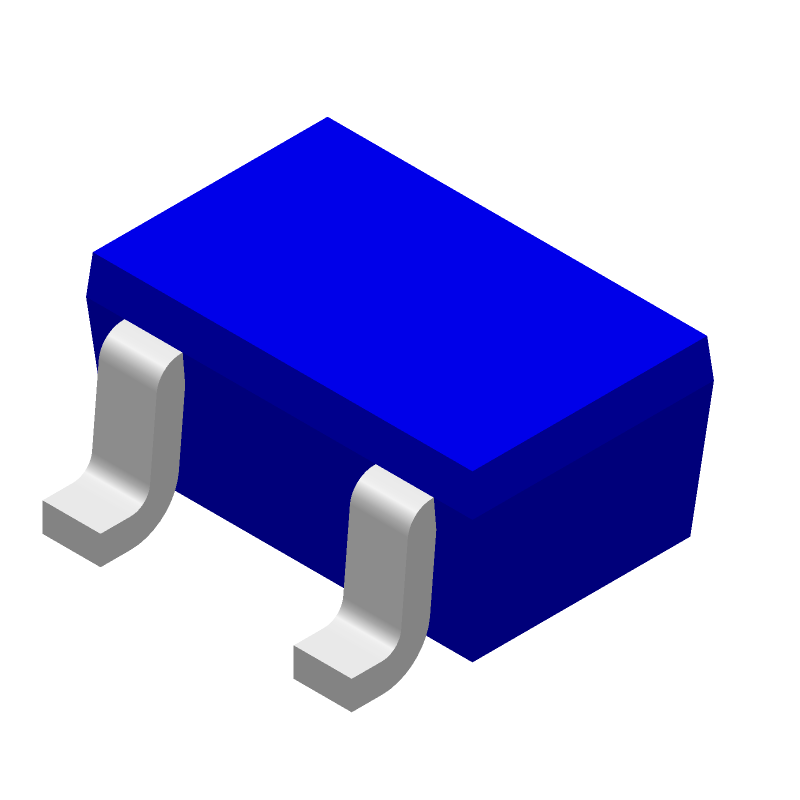

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DF3D29FU by Toshiba America Electronic Components
Results Overview of DF3D29FU by Toshiba America Electronic Components
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
DF3D29FU Information
DF3D29FU by Toshiba America Electronic Components is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Part Details for DF3D29FU
DF3D29FU CAD Models
DF3D29FU Part Data Attributes
|
|
DF3D29FU
Toshiba America Electronic Components
Buy Now
Datasheet
|
Compare Parts:
DF3D29FU
Toshiba America Electronic Components
Protection Diodes against ESD
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TOSHIBA CORP | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Toshiba | |
| Breakdown Voltage-Max | 32 V | |
| Breakdown Voltage-Min | 26 V | |
| Breakdown Voltage-Nom | 29 V | |
| Clamping Voltage-Max | 47 V | |
| Configuration | COMMON ANODE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JESD-30 Code | R-PDSO-G3 | |
| Non-rep Peak Rev Power Dis-Max | 140 W | |
| Number of Elements | 2 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Polarity | BIDIRECTIONAL | |
| Reference Standard | AEC-Q101; IEC-61000-4-2, 4-5; ISO 10605 | |
| Rep Pk Reverse Voltage-Max | 24 V | |
| Reverse Current-Max | 0.1 µA | |
| Reverse Test Voltage | 24 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
