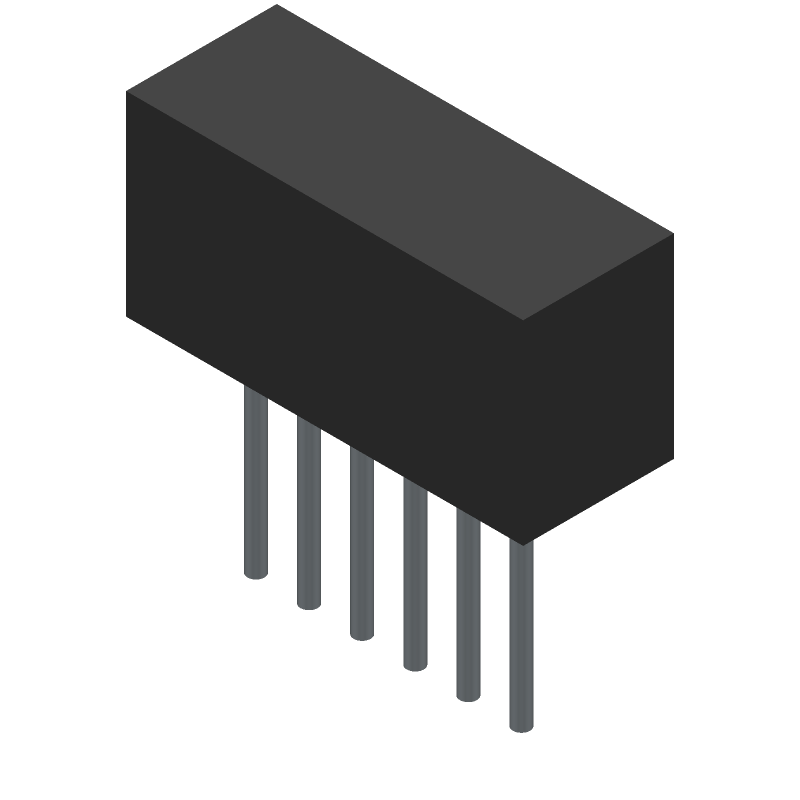

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DF13-6P-1.25DSA(75) by Hirose Electric Co Ltd
Results Overview of DF13-6P-1.25DSA(75) by Hirose Electric Co Ltd
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (3 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Education and Research
Internet of Things (IoT)
Aerospace and Defense
Agriculture Technology
Robotics and Drones
DF13-6P-1.25DSA(75) Information
DF13-6P-1.25DSA(75) by Hirose Electric Co Ltd is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for DF13-6P-1.25DSA(75)
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
DF13-6P-1.25DSA(75)
|
Avnet Americas | - Rail/Tube (Alt: DF13-6P-1.25DSA(75)) RoHS: Not Compliant Min Qty: 52 Package Multiple: 52 Lead time: 46 Weeks, 0 Days Container: Tube | 0 |
|
$0.2691 / $0.2875 | Buy Now |
|
DISTI #
536-0105-0-75
|
Avnet Abacus | (Alt: 536-0105-0-75) RoHS: Compliant Min Qty: 52 Package Multiple: 52 | Abacus - 0 |
|
Buy Now |
Part Details for DF13-6P-1.25DSA(75)
DF13-6P-1.25DSA(75) CAD Models
DF13-6P-1.25DSA(75) Part Data Attributes
|
|
DF13-6P-1.25DSA(75)
Hirose Electric Co Ltd
Buy Now
Datasheet
|
Compare Parts:
DF13-6P-1.25DSA(75)
Hirose Electric Co Ltd
Board Connector,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | HIROSE ELECTRIC CO LTD | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Factory Lead Time | 46 Weeks | |
| Samacsys Manufacturer | Hirose | |
| Body Breadth | 0.134 inch | |
| Body Depth | 0.169 inch | |
| Body Length | 0.36 inch | |
| Connector Type | BOARD CONNECTOR | |
| Contact Finish Mating | NOT SPECIFIED | |
| Contact Finish Termination | TIN | |
| Contact Gender | MALE | |
| Contact Material | NOT SPECIFIED | |
| Contact Pattern | RECTANGULAR | |
| Contact Resistance | 30 mΩ | |
| Contact Style | SQ PIN-SKT | |
| Dielectric Withstanding Voltage | 500VAC V | |
| Durability | 30 Cycles | |
| Filter Feature | NO | |
| Insulation Resistance | 500000000 Ω | |
| Insulator Color | BEIGE | |
| Insulator Material | POLYAMIDE | |
| JESD-609 Code | e3 | |
| Mating Contact Pitch | 0.049 inch | |
| Mating Information | MULTIPLE MATING PARTS ARE AVAILABLE | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 1 | |
| Number of Rows Loaded | 1 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -35 °C | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | RECTANGULAR | |
| Plating Thickness | 39.37u inch | |
| Rated Current (Signal) | 1 A | |
| Reference Standard | UL | |
| Terminal Length | 0.091 inch | |
| Terminal Pitch | 1.25 mm | |
| Termination Type | SOLDER | |
| Total Number of Contacts | 6 | |
| UL Flammability Code | 94V-0 |
