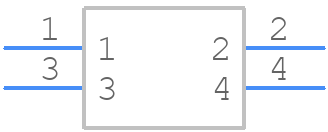

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DF11-4DP-2DS(52) by Hirose Electric Co Ltd
Results Overview of DF11-4DP-2DS(52) by Hirose Electric Co Ltd
- Distributor Offerings: (17 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
DF11-4DP-2DS(52) Information
DF11-4DP-2DS(52) by Hirose Electric Co Ltd is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for DF11-4DP-2DS(52)
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
65AK8145
|
Newark | Conn, R/A Hdr, 4Pos, 2Row, 2Mm, Connector Systems:Wire-To-Board, Pitch Spacing:2Mm, No. Of Rows:2Rows, No. Of Contacts:4Contacts, Contact Termination Type:Through Hole Right Angle, Product Range:Df11 Series, Connector Shroud:Shroudedrohs Compliant: Yes |Hirose/hrs DF11-4DP-2DS(52) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 121 |
|
$0.4120 | Buy Now |
|
DISTI #
H2865-ND
|
DigiKey | CONN HEADER R/A 4POS 2MM Min Qty: 1 Lead time: 12 Weeks Container: Tube |
9257 In Stock |
|
$0.4480 / $0.8600 | Buy Now |
|
DISTI #
DF11-4DP-2DS(52)
|
Avnet Americas | Conn Shrouded Header HDR 4 POS 2mm Solder RA Thru-Hole Tube - Rail/Tube (Alt: DF11-4DP-2DS(52)) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Tube | 635 |
|
$0.4144 / $0.4440 | Buy Now |
|
DISTI #
798-DF11-4DP-2DS52
|
Mouser Electronics | Headers & Wire Housings 2MM R/A PCB HEADER 4P DR THRU-HOLE GLD RoHS: Compliant | 4775 |
|
$0.4320 / $0.8000 | Buy Now |
|
DISTI #
HIRDF11-4DP-2DS(52)
|
Heilind Electronics | 543-0533-1-52 EACH | Americas - 1469 in Stock |
|
$0.5000 / $0.6400 | Buy Now |
|
|
Onlinecomponents.com | 2.0mm Double-Row Connectors (UL/CSA Certified) RoHS: Compliant |
2511 In Stock |
|
$0.4152 / $0.6360 | Buy Now |
|
DISTI #
87561057
|
Verical | Conn Shrouded Header (4 Sides) HDR 4 POS 2mm Solder RA Thru-Hole Tube RoHS: Compliant Min Qty: 159 Package Multiple: 1 Date Code: 2319 | Americas - 1981 |
|
$0.4980 / $0.7680 | Buy Now |
|
DISTI #
78999777
|
Verical | Conn Shrouded Header (4 Sides) HDR 4 POS 2mm Solder RA Thru-Hole Tube RoHS: Compliant Min Qty: 184 Package Multiple: 1 Date Code: 2401 | Americas - 1800 |
|
$0.5263 / $0.5874 | Buy Now |
|
|
Quest Components | 4 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER | 1440 |
|
$0.4480 / $1.1200 | Buy Now |
|
|
Future Electronics | 4 Position 2mm Pitch Dual Row (2x2) Right Angle Through Hole Pin Header Min Qty: 81 Package Multiple: 81 |
9173 null |
|
$0.3250 / $0.3600 | Buy Now |
Part Details for DF11-4DP-2DS(52)
DF11-4DP-2DS(52) CAD Models
DF11-4DP-2DS(52) Part Data Attributes
|
|
DF11-4DP-2DS(52)
Hirose Electric Co Ltd
Buy Now
Datasheet
|
Compare Parts:
DF11-4DP-2DS(52)
Hirose Electric Co Ltd
Board Connector, 4 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking Mech, Black Insulator, Receptacle,
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | HIROSE ELECTRIC CO LTD | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Hirose | |
| Additional Feature | TUBE PACKAGING | |
| Body Breadth | 0.197 inch | |
| Body Depth | 0.394 inch | |
| Body Length | 0.236 inch | |
| Body/Shell Style | RECEPTACLE | |
| Connector Type | BOARD CONNECTOR | |
| Contact Finish Mating | NOT SPECIFIED | |
| Contact Finish Termination | Gold (Au) | |
| Contact Gender | MALE | |
| Contact Material | NOT SPECIFIED | |
| Contact Pattern | RECTANGULAR | |
| Contact Resistance | 30 mΩ | |
| Contact Style | SQ PIN-SKT | |
| DIN Conformance | NO | |
| Dielectric Withstanding Voltage | 650VAC V | |
| Durability | 50 Cycles | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insertion Force-Max | 4.3924 N | |
| Insulation Resistance | 1000000000 Ω | |
| Insulator Color | BLACK | |
| Insulator Material | POLYAMIDE | |
| JESD-609 Code | e4 | |
| MIL Conformance | NO | |
| Mating Contact Pitch | 0.079 inch | |
| Mating Contact Row Spacing | 0.079 inch | |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING MECH | |
| Mounting Style | RIGHT ANGLE | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 2 | |
| Number of Rows Loaded | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -30 °C | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | RECTANGULAR | |
| PCB Contact Row Spacing | 2.0066 mm | |
| Polarization Key | GUIDE SLOT | |
| Rated Current (Signal) | 2 A | |
| Reference Standard | UL, CSA | |
| Terminal Length | 0.118 inch | |
| Terminal Pitch | 2 mm | |
| Termination Type | SOLDER | |
| Total Number of Contacts | 4 | |
| UL Flammability Code | 94V-0 | |
| Withdrawl Force-Min | .3058 N |
