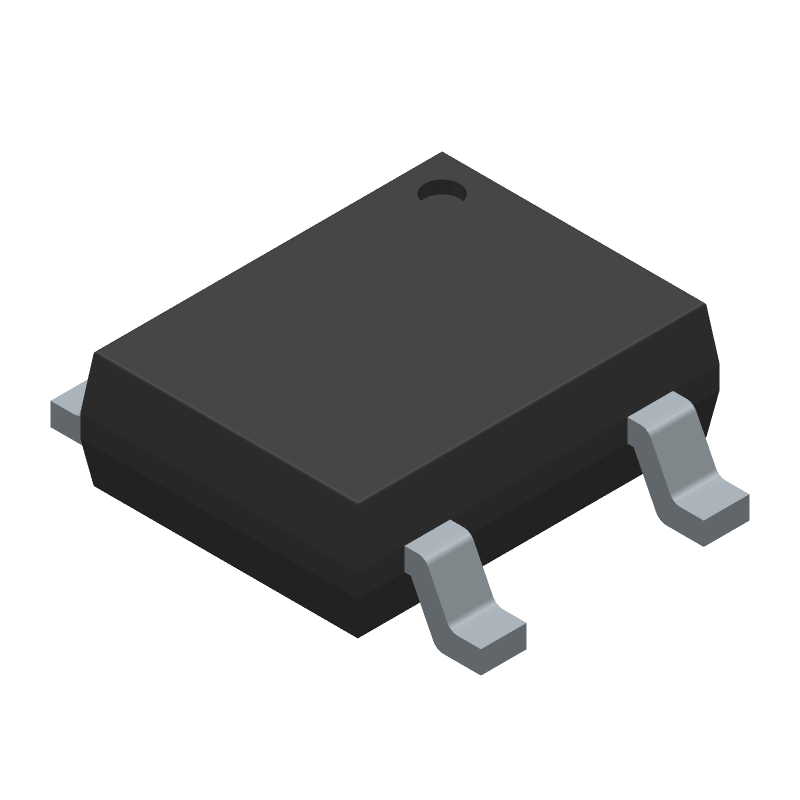

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DF10S1 by onsemi
Results Overview of DF10S1 by onsemi
- Distributor Offerings: (16 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
DF10S1 Information
DF10S1 by onsemi is a Bridge Rectifier Diode.
Bridge Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for DF10S1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
46AC0609
|
Newark | Diode, Bridge Rect, 1-Ph, 1A, 1Kv, Sdip, No. Of Phases:Single Phase, Repetitive Reverse Voltage Vrrm Max:1Kv, Forward Current If(Av):1A, Bridge Rectifier Case Style:Sdip, Forward Voltage Vf Max:1.1V, No. Of Pins:4Pins, Operating Rohs Compliant: Yes |Onsemi DF10S1 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$0.5800 / $0.9380 | Buy Now |
|
DISTI #
40Y7225
|
Newark | Bridge Rectifier/ Reel Rohs Compliant: Yes |Onsemi DF10S1 RoHS: Compliant Min Qty: 1500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
Buy Now | |
|
DISTI #
DF10S1CT-ND
|
DigiKey | BRIDGE RECT 1PHASE 1KV 1A 4-SDIP Min Qty: 1 Lead time: 18 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
2324 In Stock |
|
$0.2945 / $1.3200 | Buy Now |
|
DISTI #
DF10S1
|
Avnet Americas | Diode Rectifier Bridge Single 1000V 1A 4-Pin SDIP T/R - Tape and Reel (Alt: DF10S1) RoHS: Compliant Min Qty: 3000 Package Multiple: 1500 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
RFQ | |
|
DISTI #
DF10S1
|
Avnet Americas | Diode Rectifier Bridge Single 1000V 1A 4-Pin SDIP T/R - Tape and Reel (Alt: DF10S1) RoHS: Compliant Min Qty: 3000 Package Multiple: 1500 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
RFQ | |
|
DISTI #
V72:2272_06297122
|
Arrow Electronics | Diode Rectifier Bridge Single 1KV 1A 4-Pin SDIP SMD T/R Min Qty: 1 Package Multiple: 1 Lead time: 18 Weeks Date Code: 2221 Container: Cut Strips | Americas - 2749 |
|
$0.3162 / $0.3485 | Buy Now |
|
DISTI #
V36:1790_06297122
|
Arrow Electronics | Diode Rectifier Bridge Single 1KV 1A 4-Pin SDIP SMD T/R Min Qty: 1500 Package Multiple: 1500 Lead time: 18 Weeks Date Code: 2327 | Americas - 1500 |
|
Buy Now | |
|
DISTI #
85978339
|
Verical | Diode Rectifier Bridge Single 1KV 1A 4-Pin SDIP SMD T/R Min Qty: 716 Package Multiple: 1 Date Code: 2201 | Americas - 60000 |
|
$0.5238 | Buy Now |
|
DISTI #
62984787
|
Verical | Diode Rectifier Bridge Single 1KV 1A 4-Pin SDIP SMD T/R Min Qty: 19 Package Multiple: 1 Date Code: 2221 | Americas - 2749 |
|
$0.3162 / $0.3431 | Buy Now |
|
DISTI #
70391424
|
Verical | Diode Rectifier Bridge Single 1KV 1A 4-Pin SDIP SMD T/R Min Qty: 1500 Package Multiple: 1500 Date Code: 2327 | Americas - 1500 |
|
$0.1167 / $0.1352 | Buy Now |
Part Details for DF10S1
DF10S1 CAD Models
DF10S1 Part Data Attributes
|
|
DF10S1
onsemi
Buy Now
Datasheet
|
Compare Parts:
DF10S1
onsemi
Bridge Rectifier, PDIP-4 GW, 1500-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | PDIP-4 GW | |
| Package Description | SDIP-4 | |
| Manufacturer Package Code | 709AE | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Breakdown Voltage-Min | 1000 V | |
| Configuration | BRIDGE, 4 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | BRIDGE RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.1 V | |
| JESD-30 Code | R-PDSO-G4 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 35 A | |
| Number of Elements | 4 | |
| Number of Phases | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 1 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Rep Pk Reverse Voltage-Max | 1000 V | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
DF10S1 Frequently Asked Questions (FAQ)
-
A good PCB layout for the DF10S1 involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input traces to reduce noise and EMI.
-
To ensure proper biasing, connect the VCC pin to a stable voltage source, and decouple it with a 10uF capacitor to ground. Also, ensure the input voltage is within the recommended range of 1.65V to 5.5V.
-
The DF10S1 can operate up to 100 MHz, but the maximum frequency of operation depends on the specific application and the quality of the PCB layout.
-
To protect the DF10S1 from ESD, use a TVS diode or a transient voltage suppressor on the input lines, and ensure the PCB layout is designed to minimize ESD susceptibility.
-
The power consumption of the DF10S1 depends on the operating frequency and voltage. Typically, it consumes around 10mA at 3.3V and 100MHz, but this can vary depending on the specific application.
