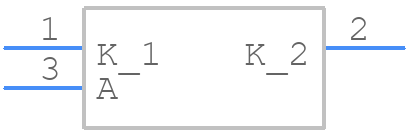

Part Symbol
-

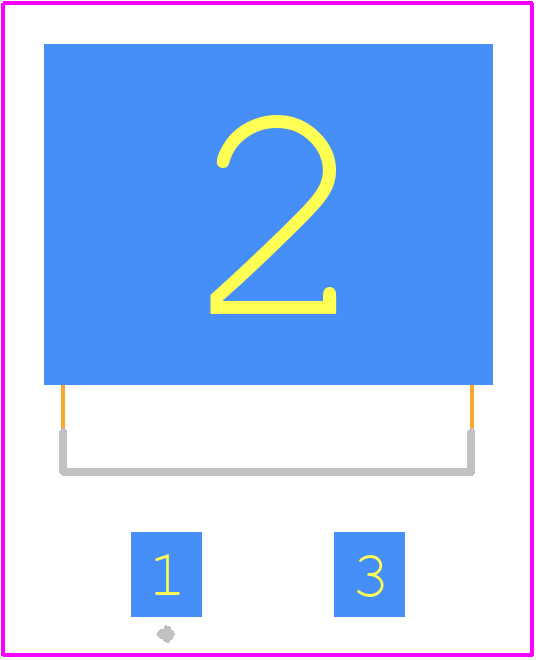

Footprint
-

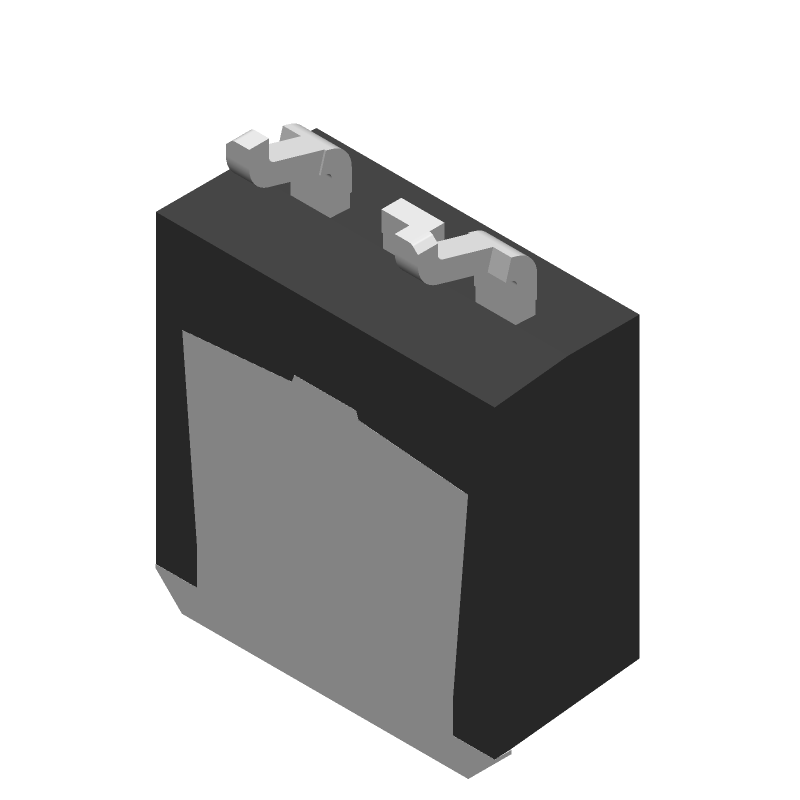

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DF10LC30-7102 by Shindengen Electronic Manufacturing Co Ltd
Results Overview of DF10LC30-7102 by Shindengen Electronic Manufacturing Co Ltd
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
DF10LC30-7102 Information
DF10LC30-7102 by Shindengen Electronic Manufacturing Co Ltd is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for DF10LC30-7102
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
627-DF10LC30-7102
|
Mouser Electronics | Rectifiers Fast Recovery Diode RoHS: Compliant | 0 |
|
$1.0100 / $2.3300 | Order Now |
|
DISTI #
66429804
|
Verical | DF10LC30-7102 Min Qty: 78 Package Multiple: 1 Date Code: 2201 | Americas - 200 |
|
$1.4994 / $1.9012 | Buy Now |
|
DISTI #
77352482
|
Verical | DF10LC30-7102 Min Qty: 41 Package Multiple: 1 | Americas - 65 |
|
$1.6380 / $1.7220 | Buy Now |
|
DISTI #
36541521
|
Verical | DF10LC30-7102 Min Qty: 62 Package Multiple: 1 Date Code: 1101 | Americas - 62 |
|
$1.3795 | Buy Now |
|
DISTI #
87175953
|
Verical | DF10LC30-7102 Min Qty: 26 Package Multiple: 1 | Americas - 50 |
|
$1.1409 / $1.2100 | Buy Now |
|
|
Quest Components | 953 |
|
$1.0230 / $2.4800 | Buy Now | |
|
DISTI #
DF10LC30-7102
|
TME | Diode: rectifying, SMD, 300V, 10A, 30ns, STO220 (SC83 similar) Min Qty: 1 | 95 |
|
$1.1000 / $1.6400 | Buy Now |
Part Details for DF10LC30-7102
DF10LC30-7102 CAD Models
DF10LC30-7102 Part Data Attributes
|
|
DF10LC30-7102
Shindengen Electronic Manufacturing Co Ltd
Buy Now
Datasheet
|
Compare Parts:
DF10LC30-7102
Shindengen Electronic Manufacturing Co Ltd
Rectifier Diode,
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SHINDENGEN ELECTRIC MANUFACTURING CO LTD | |
| Package Description | STO-220, 3/2 PIN | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Samacsys Manufacturer | Shindengen Electric Manufacturing Co., Ltd. | |
| Additional Feature | LOW NOISE | |
| Application | SUPER FAST RECOVERY | |
| Case Connection | CATHODE | |
| Configuration | COMMON CATHODE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.3 V | |
| JESD-30 Code | R-PSSO-G2 | |
| Non-rep Pk Forward Current-Max | 80 A | |
| Number of Elements | 2 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Output Current-Max | 10 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Rep Pk Reverse Voltage-Max | 300 V | |
| Reverse Current-Max | 25 µA | |
| Reverse Recovery Time-Max | 0.03 µs | |
| Reverse Test Voltage | 300 V | |
| Surface Mount | YES | |
| Terminal Form | GULL WING | |
| Terminal Position | SINGLE |
DF10LC30-7102 Frequently Asked Questions (FAQ)
-
The recommended PCB layout for optimal thermal performance involves placing the device on a thermal pad with a minimum size of 10mm x 10mm, and ensuring that the pad is connected to a large copper area on the PCB to dissipate heat efficiently.
-
To ensure reliable operation in high-temperature environments, it is recommended to derate the device's power rating according to the temperature derating curve provided in the datasheet, and to ensure good airflow around the device to prevent overheating.
-
The recommended soldering profile for the DF10LC30-7102 involves a peak temperature of 260°C, with a dwell time of 10-30 seconds above 220°C. It is also recommended to use a solder with a melting point of 217°C or higher.
-
Yes, the DF10LC30-7102 is designed to withstand high-vibration environments, but it is recommended to ensure that the device is properly secured to the PCB and that the PCB is designed to withstand the expected vibration levels.
-
The recommended storage condition for the DF10LC30-7102 involves storing the device in a dry, cool place with a temperature range of -20°C to 40°C and a humidity level of 60% or less.
