Diodes / Bridge Rectifier Diodes / DF08SA-E3/77
Datasheets
DF08SA-E3/77 by:

Bridge Rectifier Diode, 1 Phase, 1A, 800V V(RRM), Silicon, ROHS COMPLIANT, MINIATURE, PLASTIC, CASE DFS, 4 PIN

Part Details for DF08SA-E3/77 by Vishay Intertechnologies

Results Overview of DF08SA-E3/77 by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

DF08SA-E3/77 Information

DF08SA-E3/77 by Vishay Intertechnologies is a Bridge Rectifier Diode.
Bridge Rectifier Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for DF08SA-E3/77

Part # Distributor Description Stock Price Buy
DISTI # 05W6832
Newark Bridge Rectifier, Single Phase, 1A, 800V, Dfs-4, No. Of Phases:Single Phase, Repetitive Peak Reverse Voltage:800V, Average Forward Current:1A, Bridge Rectifier Case Style:Smd, No. Of Pins:4Pins, Forward Voltage Max:1.1V Rohs Compliant: Yes |Vishay DF08SA-E3/77 RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
  • 1,000 $0.3120
$0.3120 Buy Now
DISTI # 76K4311
Newark Bridge Rectifier, 1Ph, 1A, 800V, Dfs-4, Full Reel, No. Of Phases:Single Phase, Repetitive Peak Reverse Voltage:800V, Average Forward Current:1A, Bridge Rectifier Case Style:Smd, No. Of Pins:4Pins, Forward Voltage Max:1.1V Rohs Compliant: Yes |Vishay DF08SA-E3/77 RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $0.3320
  • 5,000 $0.3250
  • 10,000 $0.3030
  • 20,000 $0.2850
  • 30,000 $0.2680
  • 50,000 $0.2580
$0.2580 / $0.3320 Buy Now
DISTI # DF08SA-E3/77
Avnet Americas 1A,800V,GPP,SMDIP,BRIDGERECT - Tape and Reel (Alt: DF08SA-E3/77) RoHS: Compliant Min Qty: 3000 Package Multiple: 1500 Lead time: 7 Weeks, 0 Days Container: Reel 0
  • 3,000 $0.2084
  • 6,000 $0.2033
  • 9,000 $0.2008
  • 15,000 $0.1984
  • 30,000 $0.1961
$0.1961 / $0.2084 Buy Now
DISTI # 625-DF08SA-E3
Mouser Electronics Bridge Rectifiers 1.0 Amp 800 Volt RoHS: Compliant 35372
  • 1 $0.7800
  • 10 $0.5550
  • 100 $0.3780
  • 500 $0.3160
  • 1,000 $0.2690
  • 1,500 $0.2440
  • 3,000 $0.2260
$0.2260 / $0.7800 Buy Now
DISTI # E02:0323_00197566
Arrow Electronics Diode Rectifier Bridge Single 800V 1A 4-Pin Case DFS T/R Min Qty: 3000 Package Multiple: 1500 Lead time: 7 Weeks Date Code: 2449 Europe - 15000
  • 3,000 $1.1706
$1.1706 Buy Now
DISTI # 87514339
Verical Diode Rectifier Bridge Single 800V 1A 4-Pin Case DFS T/R Min Qty: 3000 Package Multiple: 3000 Date Code: 2449 Americas - 15000
  • 3,000 $1.1706
$1.1706 Buy Now
DISTI # DF08SA-E3/77
TTI Bridge Rectifiers 1.0 Amp 800 Volt RoHS: Compliant pbFree: Pb-Free Min Qty: 1500 Package Multiple: 1500 Container: Reel Americas - 7500
In Stock
  • 1,500 $0.2290
  • 3,000 $0.2230
  • 4,500 $0.2190
  • 7,500 $0.2150
  • 15,000 $0.2110
  • 37,500 $0.2060
$0.2060 / $0.2290 Buy Now
DISTI # DF08SA-E3/77
TME Bridge rectifier: single-phase, Urmax: 800V, If: 1A, Ifsm: 30A, DFS Min Qty: 1 2986
  • 1 $0.5630
  • 10 $0.3990
  • 100 $0.2820
  • 500 $0.2290
  • 1,000 $0.1760
  • 1,500 $0.1740
$0.1740 / $0.5630 Buy Now
DISTI # DF08SA-E3/77
IBS Electronics DIODE RECTIFIER BRIDGE SINGLE 800V 1A 4-PIN CASE DFS T/R Min Qty: 3000 Package Multiple: 1 0
  • 3,000 $0.1833
  • 4,500 $0.1807
  • 6,000 $0.1794
  • 15,000 $0.1768
  • 22,500 $0.1742
$0.1742 / $0.1833 Buy Now
DISTI # DF08SA-E3/77
EBV Elektronik 1A800VGPPSMDIPBRIDGERECT (Alt: DF08SA-E3/77) RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 8 Weeks, 0 Days EBV - 0
Buy Now
Vyrian Diodes 16157
RFQ

Part Details for DF08SA-E3/77

DF08SA-E3/77 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

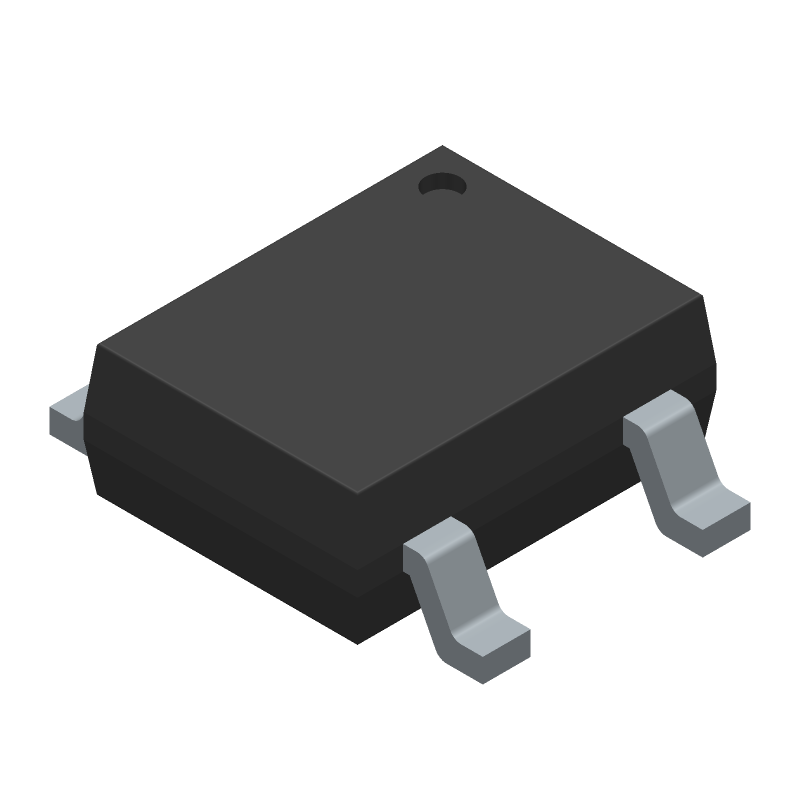

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

DF08SA-E3/77 Part Data Attributes

Parametric Data
DF08SA-E3/77 Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
DF08SA-E3/77 Vishay Intertechnologies Bridge Rectifier Diode, 1 Phase, 1A, 800V V(RRM), Silicon, ROHS COMPLIANT, MINIATURE, PLASTIC, CASE DFS, 4 PIN
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description ROHS COMPLIANT, MINIATURE, PLASTIC, CASE DFS, 4 PIN
Reach Compliance Code compliant
Factory Lead Time 7 Weeks
Samacsys Manufacturer Vishay
Breakdown Voltage-Min 800 V
Configuration BRIDGE, 4 ELEMENTS
Diode Element Material SILICON
Diode Type BRIDGE RECTIFIER DIODE
Forward Voltage-Max (VF) 1.1 V
JESD-30 Code R-PDSO-G4
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Pk Forward Current-Max 30 A
Number of Elements 4
Number of Phases 1
Number of Terminals 4
Operating Temperature-Max 150 °C
Operating Temperature-Min -55 °C
Output Current-Max 1 A
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 250
Qualification Status Not Qualified
Reference Standard UL RECOGNIZED
Rep Pk Reverse Voltage-Max 800 V
Surface Mount YES
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40

Alternate Parts for DF08SA-E3/77

This table gives cross-reference parts and alternative options found for DF08SA-E3/77. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DF08SA-E3/77, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
DF08S-T Diodes Incorporated $0.2772 Bridge Rectifier Diode, 1 Phase, 1A, 800V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, DF-S, 4 PIN DF08SA-E3/77 vs DF08S-T
DF08S Lite-On Semiconductor Corporation Check for Price Bridge Rectifier Diode, 1 Phase, 1A, 800V V(RRM), Silicon, PLASTIC, DF-S, 4 PIN DF08SA-E3/77 vs DF08S
DB106S Rectron Semiconductor Check for Price 1A, 800V, SILICON, BRIDGE RECTIFIER DIODE, ROHS COMPLIANT, PLASTIC, DB-S, 4 PIN DF08SA-E3/77 vs DB106S
DF08SA-E3/45 Vishay Semiconductors Check for Price Diode Rectifier Bridge Single 800V 1A 4-Pin Case DFS Tube DF08SA-E3/77 vs DF08SA-E3/45
DF08S Fairchild Semiconductor Corporation Check for Price Bridge Rectifier Diode, 1 Phase, 1.5A, 800V V(RRM), Silicon, SDIP-4 DF08SA-E3/77 vs DF08S
DF08STR16 International Rectifier Check for Price Bridge Rectifier Diode, 1 Phase, 1A, 800V V(RRM), Silicon, SURFACE MOUNT, DIP-4 DF08SA-E3/77 vs DF08STR16
SDB106 International Semiconductor Inc Check for Price Bridge Rectifier Diode, 1 Phase, 1A, 800V V(RRM), Silicon DF08SA-E3/77 vs SDB106
DF08S onsemi Check for Price 1.5A Bridge Rectifier, PDIP-4 GW, 1500-REEL DF08SA-E3/77 vs DF08S
DF08S General Instrument Corp Check for Price Bridge Rectifier Diode, 1 Phase, 1A, 800V V(RRM), Silicon, DF08SA-E3/77 vs DF08S
DB106S Uniohm Corp Check for Price Bridge Rectifier Diode, 1 Phase, 1A, 800V V(RRM), Silicon, PLASTIC, DB-1S, 4 PIN DF08SA-E3/77 vs DB106S
Part Number Manufacturer Composite Price Description Compare
DF08STRR16 International Rectifier Check for Price Bridge Rectifier Diode, 1 Phase, 1A, 800V V(RRM), Silicon, SURFACE MOUNT PACKAGE-4 DF08SA-E3/77 vs DF08STRR16
SDB107L Micro Commercial Components Check for Price Bridge Rectifier Diode, 1 Phase, 1A, 1000V V(RRM), Silicon, PLASTIC, SDB-1, 4 PIN DF08SA-E3/77 vs SDB107L
DF1510S-E3/77 Vishay Intertechnologies Check for Price Bridge Rectifier Diode, 1 Phase, 1.5A, 1000V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, CASE DFS, 4 PIN DF08SA-E3/77 vs DF1510S-E3/77
DF1510S Sangdest Microelectronics (Nanjing) Co Ltd Check for Price Bridge Rectifier Diode, 1 Phase, 1.5A, 1000V V(RRM), Silicon, PLASTIC, DF-S, 4 PIN DF08SA-E3/77 vs DF1510S
DF08S Formosa Microsemi Co Ltd Check for Price Bridge Rectifier Diode, 1 Phase, 1A, 800V V(RRM), Silicon, PLASTIC, DFS, 4 PIN DF08SA-E3/77 vs DF08S
SDB107L-BP Micro Commercial Components Check for Price Bridge Rectifier Diode, 1 Phase, 1A, 1000V V(RRM), Silicon, PLASTIC, SDB-1, 4 PIN DF08SA-E3/77 vs SDB107L-BP
DF10S Fuji Electric Co Ltd Check for Price Bridge Rectifier Diode, 1 Phase, 1A, 1000V V(RRM), Silicon DF08SA-E3/77 vs DF10S
DF08SA-E3/45 Vishay Intertechnologies Check for Price Bridge Rectifier Diode, 1 Phase, 1A, 800V V(RRM), Silicon, ROHS COMPLIANT, MINIATURE, PLASTIC, CASE DFS, 4 PIN DF08SA-E3/77 vs DF08SA-E3/45
1B10STRR16PBF International Rectifier Check for Price Bridge Rectifier Diode, 1 Phase, 1A, 1000V V(RRM), Silicon, SURFACE MOUNT, DIP-4 DF08SA-E3/77 vs 1B10STRR16PBF
DF10S International Semiconductor Inc Check for Price Bridge Rectifier Diode, 1 Phase, 1A, Silicon DF08SA-E3/77 vs DF10S
