DDC123JU-7-F Information
DDC123JU-7-F by Diodes Incorporated is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for DDC123JU-7-F
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
28AK8028
|
Newark | Rf Transistor, 50V, 0.1A, Sot-363 Rohs Compliant: Yes |Diodes Inc. DDC123JU-7-F RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2164 |
|
$0.1000 / $0.3740 | Buy Now |
|
DISTI #
DDC123JU-FDICT-ND
|
DigiKey | TRANS PREBIAS 2NPN 50V SOT-363 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
31568 In Stock |
|
$0.0473 / $0.3600 | Buy Now |
|
DISTI #
DDC123JU-7-F
|
Avnet Americas | Bipolar Pre-Biased / Digital Transistor, Dual NPN, 50 V, 100 mA, 2.2 kohm, 47 kohm - Tape and Reel (Alt: DDC123JU-7-F) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 20 Weeks, 0 Days Container: Reel | 195000 |
|
$0.0307 / $0.0314 | Buy Now |
|
DISTI #
621-DDC123JU-F
|
Mouser Electronics | Digital Transistors DUAL NPN 200mW RoHS: Compliant | 10244 |
|
$0.0500 / $0.3600 | Buy Now |
|
DISTI #
E02:0323_01117313
|
Arrow Electronics | Trans Digital BJT NPN 50V 0.1A 200mW 6-Pin SOT-363 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 16 Weeks Date Code: 2405 | Europe - 60000 |
|
$0.0279 / $0.0586 | Buy Now |
|
DISTI #
V72:2272_06696735
|
Arrow Electronics | Trans Digital BJT NPN 50V 0.1A 200mW 6-Pin SOT-363 T/R RoHS: Compliant Min Qty: 258 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2314 Container: Cut Strips | Americas - 258 |
|
$0.0359 | Buy Now |
|
|
Bristol Electronics | 22522 |
|
RFQ | ||
|
|
Bristol Electronics | 5380 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 34 | 2003 |
|
$0.0450 / $0.1500 | Buy Now |
|
|
Quest Components | SMALL SIGNAL BIPOLAR TRANSISTOR, 0.1A I(C), 50V V(BR)CEO, 2-ELEMENT, NPN, SILICON | 4304 |
|
$0.2450 / $0.7000 | Buy Now |
Part Details for DDC123JU-7-F

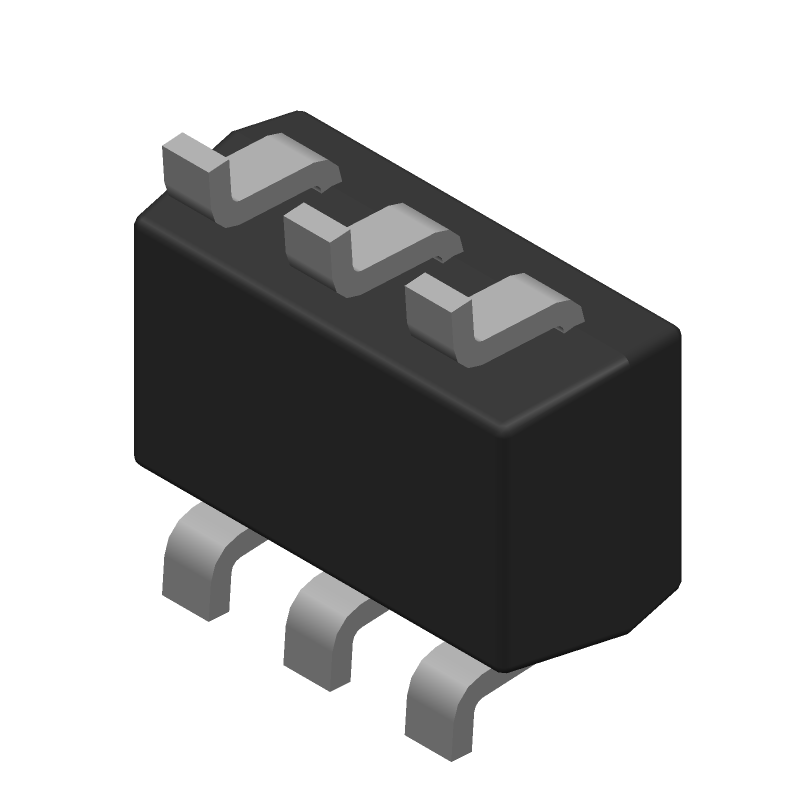

DDC123JU-7-F CAD Models
DDC123JU-7-F Part Data Attributes
|
|
DDC123JU-7-F
Diodes Incorporated
Buy Now
Datasheet
|
Compare Parts:
DDC123JU-7-F
Diodes Incorporated
Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 2-Element, NPN, Silicon, GREEN, PLASTIC PACKAGE-6
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | DIODES INC | |
| Package Description | GREEN, PLASTIC PACKAGE-6 | |
| Pin Count | 6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 20 Weeks | |
| Samacsys Manufacturer | Diodes Incorporated | |
| Additional Feature | BUILT-IN BIAS RESISTOR RATIO IS 21.36 | |
| Collector Current-Max (IC) | 0.1 A | |
| Collector-Emitter Voltage-Max | 50 V | |
| Configuration | SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR | |
| DC Current Gain-Min (hFE) | 80 | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 2 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Power Dissipation-Max (Abs) | 0.2 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 250 MHz |
