DD435N34KHPSA1 Information
DD435N34KHPSA1 by Infineon Technologies AG is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for DD435N34KHPSA1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
49AC0181
|
Newark | Diode Module, Dual, 3.4Kv, 435A, Repetitive Reverse Voltage Vrrm Max:3.4Kv, Forward Current If(Av):435A, Forward Voltage Vf Max:1.71V, Diode Module Configuration:Dual Series, Product Range:-, Svhc:No Svhc (27-Jun-2018) Rohs Compliant: Yes |Infineon DD435N34KHPSA1 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 2 |
|
$589.0700 | Buy Now |
|
DISTI #
448-DD435N34KHPSA1-ND
|
DigiKey | DIODE MOD GP 3400V 573A MOD Min Qty: 1 Lead time: 24 Weeks Container: Tray |
2 In Stock |
|
$420.7600 | Buy Now |
|
DISTI #
DD435N34KHPSA1
|
Avnet Americas | Rectifier Diode Module (non Schottky) 3400V 435A 3-Pin PB60-1 Tray - Trays (Alt: DD435N34KHPSA1) RoHS: Compliant Min Qty: 2 Package Multiple: 2 Lead time: 24 Weeks, 0 Days Container: Tray | 0 |
|
$467.8879 | Buy Now |
|
DISTI #
66364435
|
Verical | Rectifier Diode RoHS: Compliant Min Qty: 1 Package Multiple: 1 | Americas - 2 |
|
$387.0000 | Buy Now |
|
DISTI #
DD435N34KHPSA1
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tray | 2 |
|
$337.0000 / $387.0000 | Buy Now |
|
DISTI #
SP000083036
|
EBV Elektronik | Rectifier Diode Module non Schottky 3400V 435A 3Pin PB601 Tray (Alt: SP000083036) RoHS: Compliant Min Qty: 2 Package Multiple: 2 Lead time: 25 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for DD435N34KHPSA1

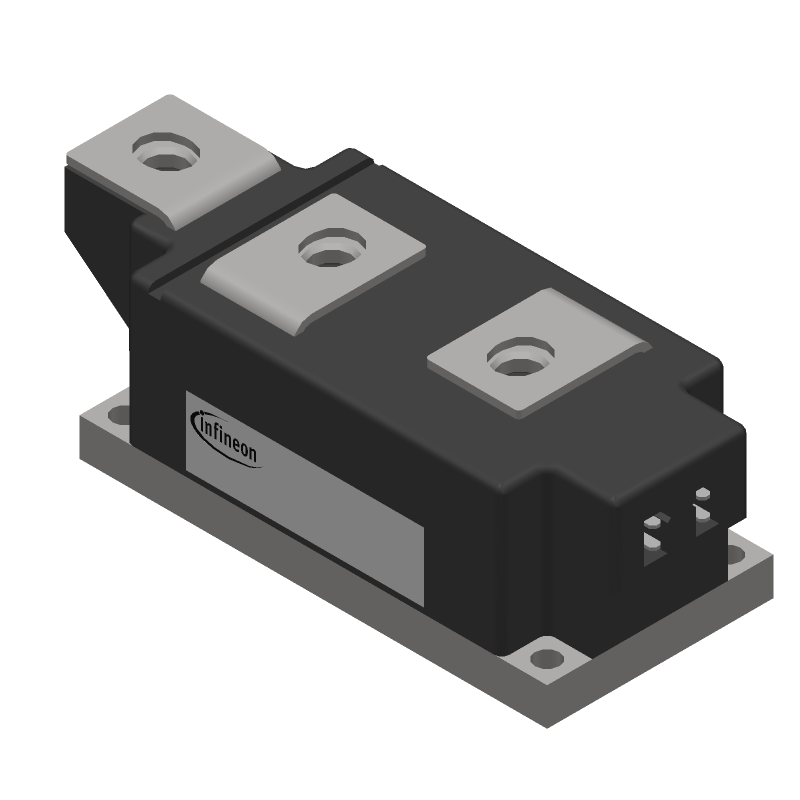

DD435N34KHPSA1 CAD Models
DD435N34KHPSA1 Part Data Attributes
|
|
DD435N34KHPSA1
Infineon Technologies AG
Buy Now
Datasheet
|
Compare Parts:
DD435N34KHPSA1
Infineon Technologies AG
Rectifier Diode, 1 Phase, 2 Element, 573A, 3400V V(RRM), Silicon, MODULE-3
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | INFINEON TECHNOLOGIES AG | |
| Package Description | MODULE-3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 24 Weeks | |
| Samacsys Manufacturer | Infineon | |
| Additional Feature | HIGH RELIABILITY | |
| Application | GENERAL PURPOSE | |
| Case Connection | ISOLATED | |
| Configuration | SERIES CONNECTED, CENTER TAP, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.71 V | |
| JESD-30 Code | R-PUFM-X3 | |
| Non-rep Pk Forward Current-Max | 12000 A | |
| Number of Elements | 2 | |
| Number of Phases | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 573 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Reference Standard | UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 3400 V | |
| Reverse Current-Max | 50000 µA | |
| Surface Mount | NO | |
| Terminal Form | UNSPECIFIED | |
| Terminal Position | UPPER | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
