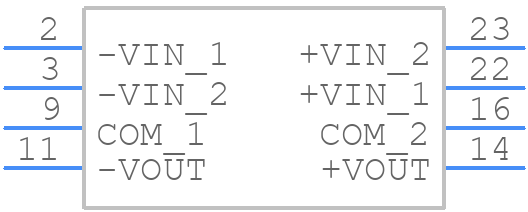

Part Symbol
-

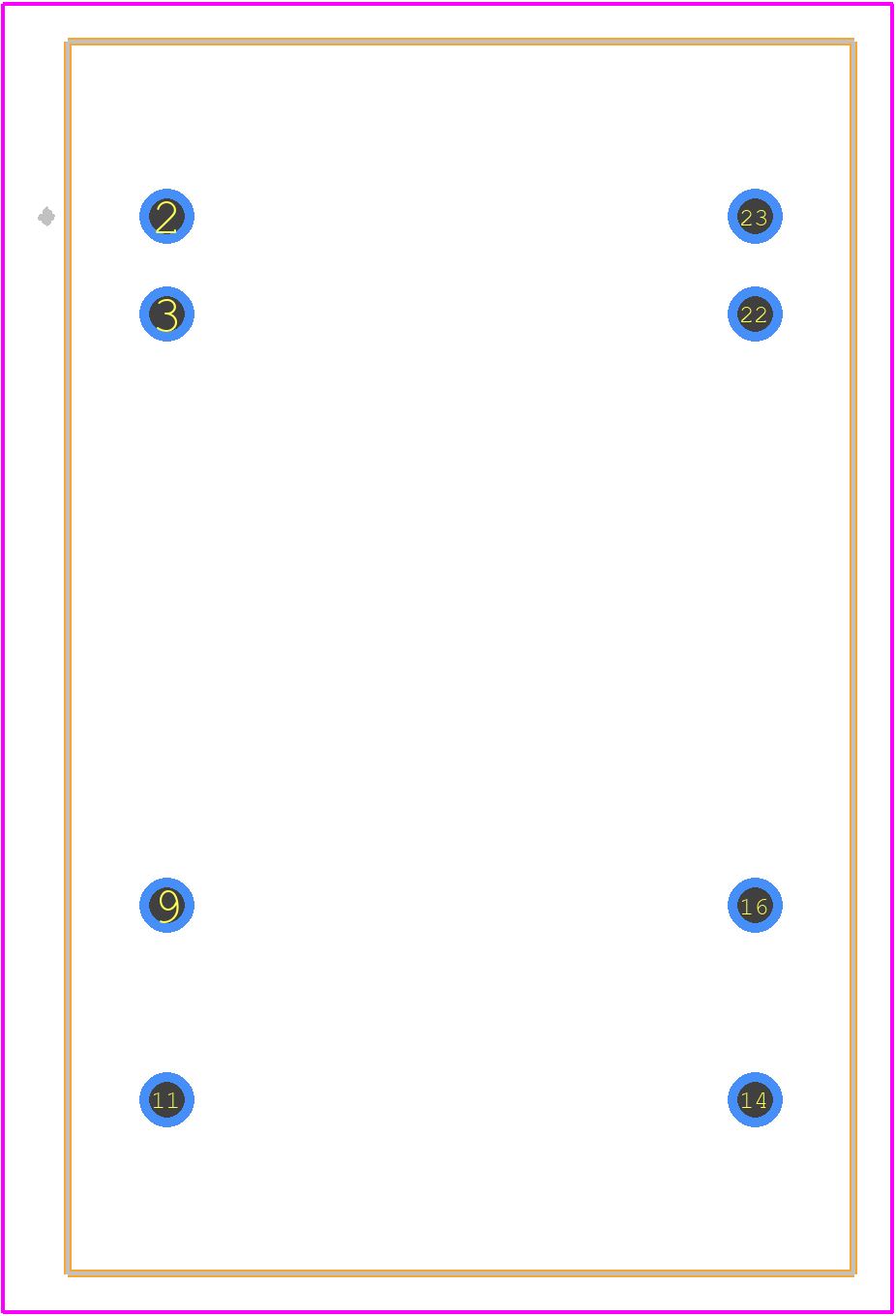

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DCW03A-15 by Mean Well
Results Overview of DCW03A-15 by Mean Well
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
DCW03A-15 Information
DCW03A-15 by Mean Well is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for DCW03A-15
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Onlinecomponents.com | Module DC-DC 2-OUT 15V/-15V 0.1A/-0.1A 3W 8-Pin RoHS: Compliant |
83 In Stock |
|
$7.6000 / $14.7700 | Buy Now |
|
DISTI #
51745538
|
Verical | Module DC-DC 12VIN 2-OUT -15V/15V -0.1A/0.1A 3W 8-Pin RoHS: Compliant Min Qty: 4 Package Multiple: 2 Date Code: 1632 | Americas - 82 |
|
$8.7659 / $17.9030 | Buy Now |
|
DISTI #
DCW03A-15
|
IBS Electronics | 3 W I/P: 9-18VDC O/P: 15V @100MA D/D MODULE DC/DC MODULE TYPE Min Qty: 2 Package Multiple: 1 | 83 |
|
$9.8800 / $19.2010 | Buy Now |
|
|
Master Electronics | Module DC-DC 2-OUT 15V/-15V 0.1A/-0.1A 3W 8-Pin RoHS: Compliant |
83 In Stock |
|
$7.6000 / $14.7700 | Buy Now |
Part Details for DCW03A-15
DCW03A-15 CAD Models
DCW03A-15 Part Data Attributes
|
|
DCW03A-15
Mean Well
Buy Now
Datasheet
|
Compare Parts:
DCW03A-15
Mean Well
Analog Circuit
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | MEAN WELL ENTERPRISES CO LTD | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Mean Well | |
| Additional Feature | ALSO -15 V OUTPUT VOLTAGE AVAILABLE | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Approvals | EAC | |
| Efficiency (Main Output) | 80% | |
| Input Voltage-Max | 18 V | |
| Input Voltage-Min | 9 V | |
| JESD-30 Code | R-MDMA-P8 | |
| Length | 31.8 mm | |
| Line Regulation-Max | 0.5% | |
| Load Regulation-Max | 0.5% | |
| Number of Functions | 1 | |
| Number of Outputs | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 71 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.1 A | |
| Output Voltage-Max | 15.3 V | |
| Output Voltage-Min | 14.7 V | |
| Output Voltage-Nom | 15 V | |
| Package Body Material | METAL | |
| Package Code | DMA | |
| Package Equivalence Code | MODULE,8/24LEAD,0.6 | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Protections | OVER LOAD, SHORT CIRCUIT | |
| Ripple Voltage (Main Out) | 0.02121 Vrms | |
| Seated Height-Max | 12.7 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Terminal Form | PIN/PEG | |
| Terminal Pitch | 2.5 mm | |
| Terminal Position | DUAL | |
| Total Power Output-Max | 3 W | |
| Trim/Adjustable Output | NO | |
| Width | 20.3 mm |
