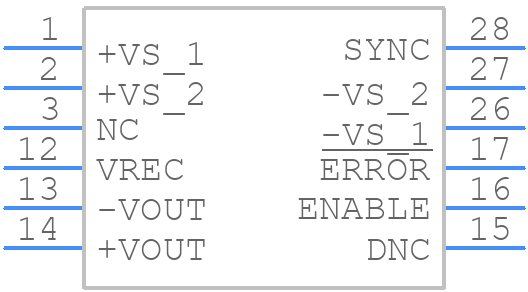

Part Symbol
-
Footprint
-

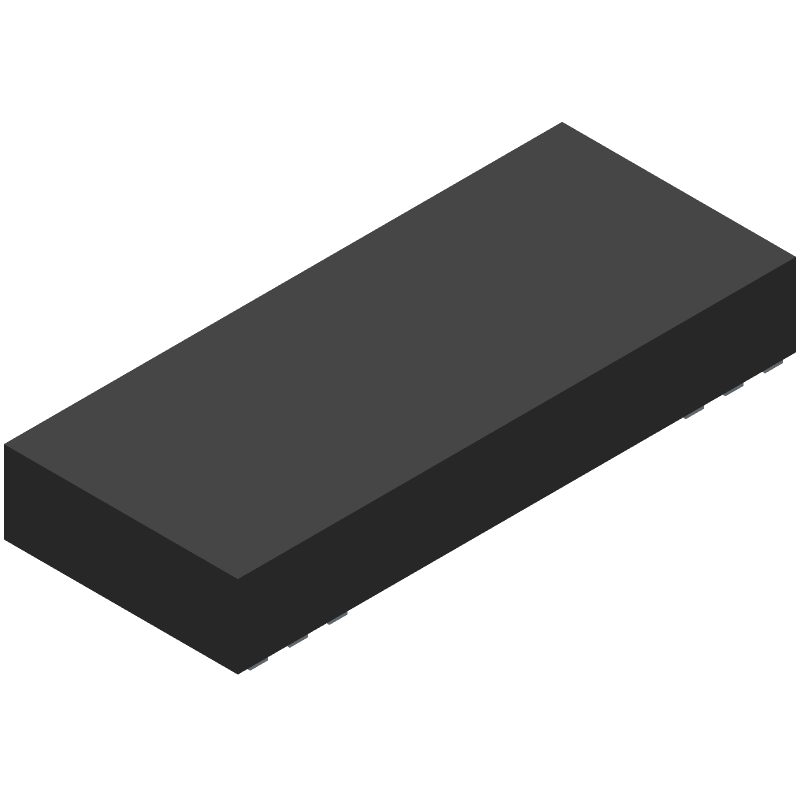

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DCR010505U/1K by Texas Instruments
Results Overview of DCR010505U/1K by Texas Instruments
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
DCR010505U/1K Information
DCR010505U/1K by Texas Instruments is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| DCR010505UE4 | Texas Instruments | Miniature, 1W Isolated Regulated DC/DC Converters 12-SOP -40 to 85 | |
| DCR010505U | Texas Instruments | Miniature, 1W Isolated Regulated DC/DC Converters 12-SOP -40 to 85 | |
| DCR010505U/1KE4 | Texas Instruments | Miniature, 1W Isolated Regulated DC/DC Converters 12-SOP -40 to 85 |
Price & Stock for DCR010505U/1K
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-26052-1-ND
|
DigiKey | DC DC CONVERTER 5V 1W Min Qty: 1 Lead time: 18 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1928 In Stock |
|
$12.9672 / $15.2700 | Buy Now |
|
DISTI #
595-DCR010505U/1K
|
Mouser Electronics | Isolated DC/DC Converters - SMD Mini 1W Iso Regs DC/ DC Converter A 595-DCR010505U RoHS: Compliant | 1700 |
|
$12.4500 / $14.6900 | Buy Now |
|
DISTI #
V72:2272_07253914
|
Arrow Electronics | Module DC-DC 5VIN 1-OUT 5V 0.2A 1W 12-Pin SOP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 18 Weeks Date Code: 2412 Container: Cut Strips | Americas - 9 |
|
$12.4130 | Buy Now |
|
DISTI #
79330099
|
Verical | Module DC-DC 5VIN 1-OUT 5V 0.2A 1W 12-Pin SOP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2412 | Americas - 9 |
|
$12.4130 | Buy Now |
|
|
Bristol Electronics | 4 |
|
RFQ | ||
|
|
Win Source Electronics | IC REG ISOLATED 5V 0.2A 12SOP | 13510 |
|
$5.2500 / $6.7812 | Buy Now |
Part Details for DCR010505U/1K
DCR010505U/1K CAD Models
DCR010505U/1K Part Data Attributes
|
|
DCR010505U/1K
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
DCR010505U/1K
Texas Instruments
Miniature, 1W Isolated Regulated DC/DC Converters 12-SOP -40 to 85
|
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | MODULE | |
| Package Description | SOP-28/12 | |
| Pin Count | 28 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Control Mode | VOLTAGE-MODE | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 4.5 V | |
| Input Voltage-Nom | 5 V | |
| JESD-30 Code | R-PDSO-G12 | |
| JESD-609 Code | e4 | |
| Length | 17.9 mm | |
| Load Regulation-Max | 2.5% | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 12 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.2 A | |
| Output Voltage-Max | 5.1 V | |
| Output Voltage-Min | 4.9 V | |
| Output Voltage-Nom | 5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP28,.4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Protections | THERMAL | |
| Qualification Status | Not Qualified | |
| Ripple Voltage (Main Out) | 0.003 Vrms | |
| Seated Height-Max | 2.65 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Technology | HYBRID | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Total Power Output-Max | 1 W | |
| Trim/Adjustable Output | NO | |
| Width | 7.5 mm |
Alternate Parts for DCR010505U/1K
This table gives cross-reference parts and alternative options found for DCR010505U/1K. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DCR010505U/1K, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| DCR010505U/1KE4 | Texas Instruments | Check for Price | Miniature, 1W Isolated Regulated DC/DC Converters 12-SOP -40 to 85 | DCR010505U/1K vs DCR010505U/1KE4 |
| DCR010505UE4 | Texas Instruments | Check for Price | Miniature, 1W Isolated Regulated DC/DC Converters 12-SOP -40 to 85 | DCR010505U/1K vs DCR010505UE4 |
DCR010505U/1K Frequently Asked Questions (FAQ)
-
A good PCB layout for the DCR010505U/1K involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
-
To ensure proper thermal management, it's recommended to attach a heat sink to the device, especially in high-power applications. The heat sink should be designed to provide good thermal conductivity and should be attached using a thermal interface material. Additionally, the PCB should be designed to provide good airflow around the device.
-
Operating the DCR010505U/1K beyond its recommended operating conditions can lead to reduced reliability, decreased performance, and potentially even device failure. It's recommended to operate the device within its specified operating conditions to ensure optimal performance and reliability.
-
To troubleshoot issues with the DCR010505U/1K, start by checking the power supply voltage, input and output signals, and PCB layout. Use an oscilloscope to verify the input and output waveforms, and check for any signs of overheating or electrical overstress. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
-
The DCR010505U/1K is a commercial-grade device and may not be suitable for high-reliability or safety-critical applications. For such applications, it's recommended to use devices that are specifically designed and qualified for high-reliability or safety-critical applications, such as automotive or aerospace applications.
