DB4J310K0R Information

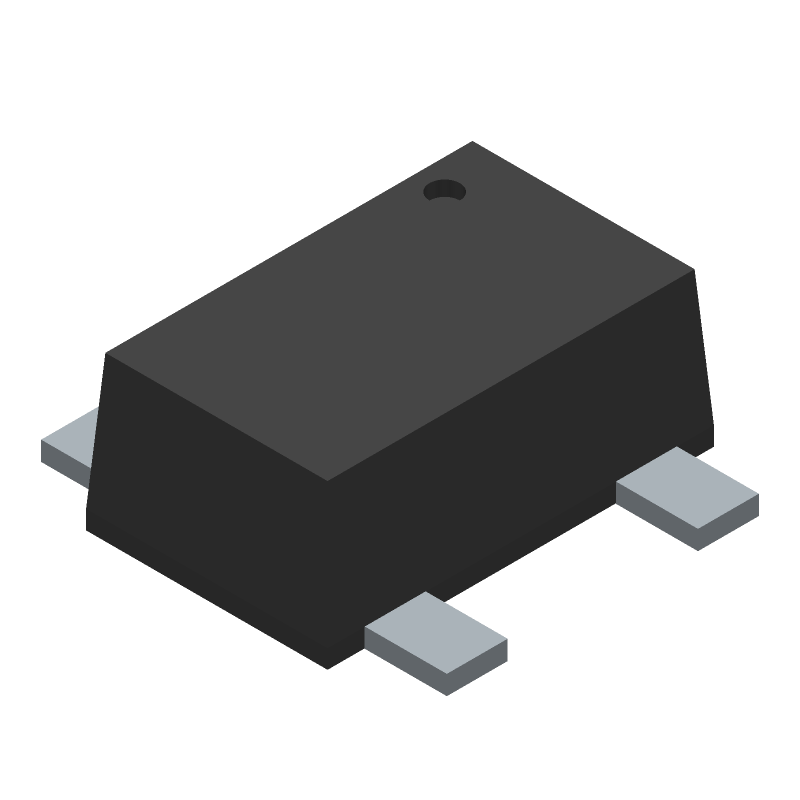

DB4J310K0R by Panasonic Electronic Components is a Microwave Mixer Diode.
Microwave Mixer Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for DB4J310K0R
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
53W7919
|
Newark | Diode, Ultrafast Recovery, 150Ma, 30V, Smini4-F3-B, Full Reel, Diode Configuration:Dual Isolated, Repetitive Peak Reverse Voltage:30V, Average Forward Current:150Ma, Forward Voltage Max:470Mv, Forward Surge Current:1A Rohs Compliant: Yes |Panasonic DB4J310K0R RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
Buy Now | |
|
DISTI #
70358524
|
RS | Schottky Diode 20V 100mA SMini4-F3-B Min Qty: 20 Package Multiple: 1 Container: Bulk | 0 |
|
$0.1590 / $0.1870 | RFQ |
|
|
Quest Components | MIXER DIODE, VERY HIGH FREQUENCY, SILICON | 10 |
|
$0.2115 | Buy Now |
|
|
Vyrian | Diodes | 529 |
|
RFQ |
Part Details for DB4J310K0R
DB4J310K0R CAD Models
DB4J310K0R Part Data Attributes
|
|
DB4J310K0R
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
DB4J310K0R
Panasonic Electronic Components
Mixer Diode, Very High Frequency, Silicon, HALOGEN FREE AND ROHS COMPLIANT, SMINI4-F3-B, SC-113BB, 4 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Transferred | |
| Ihs Manufacturer | PANASONIC CORP | |
| Package Description | SC-113BB, 4 PIN | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.60 | |
| Samacsys Manufacturer | Panasonic | |
| Configuration | SEPARATE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | MIXER DIODE | |
| Forward Voltage-Max (VF) | 0.27 V | |
| Frequency Band | VERY HIGH FREQUENCY | |
| JESD-30 Code | R-PDSO-F4 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 2 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Rep Pk Reverse Voltage-Max | 30 V | |
| Reverse Current-Max | 200 µA | |
| Reverse Test Voltage | 30 V | |
| Surface Mount | YES | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL |
DB4J310K0R Frequently Asked Questions (FAQ)
-
The recommended land pattern for DB4J310K0R is a rectangular pad with a size of 2.5mm x 1.25mm, with a solder mask clearance of 0.2mm around the pad.
-
To handle thermal considerations for DB4J310K0R, ensure good thermal conduction by using a thermal pad or a heat sink, and avoid overheating by keeping the operating temperature within the recommended range of -40°C to 125°C.
-
The recommended soldering profile for DB4J310K0R is a peak temperature of 260°C, with a dwell time of 10-30 seconds above 220°C, and a cooling rate of 4°C/second or less.
-
Yes, DB4J310K0R is designed to withstand high-vibration environments, with a vibration resistance of 10G (10-2000Hz) and a shock resistance of 100G (11ms).
-
To ensure the reliability of DB4J310K0R in a humid environment, use a moisture-resistant coating or conformal coating, and follow the recommended storage and handling procedures to prevent moisture absorption.
