DB25P064TXLF by:

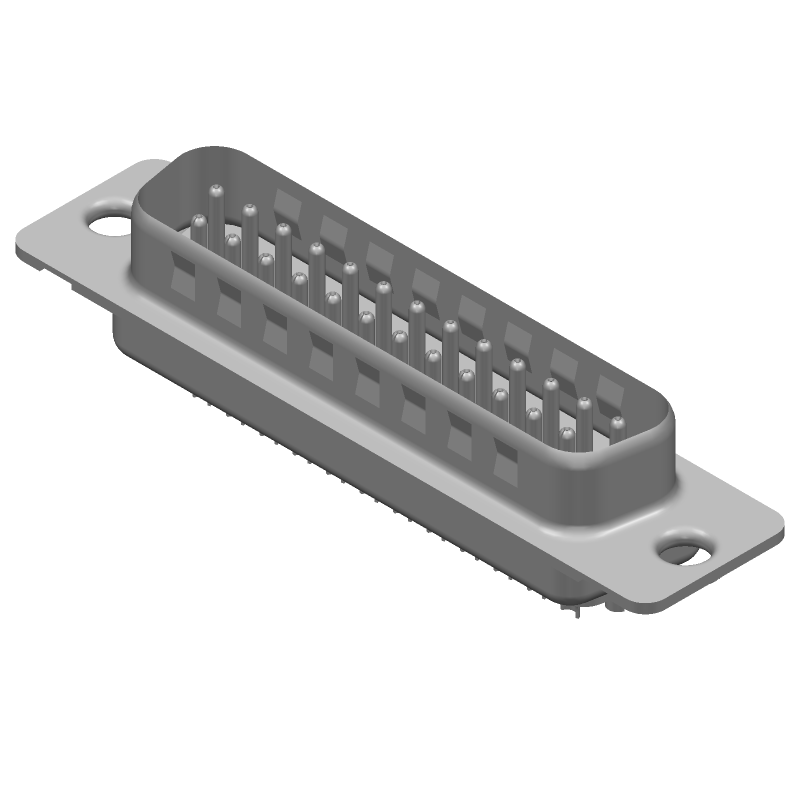

D-Sub Cable Connector, Input Output Connectors, 25 Way Pin Solder Bucket, without Accessory

Part Details for DB25P064TXLF by Amphenol Communications Solutions

Results Overview of DB25P064TXLF by Amphenol Communications Solutions

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Security and Surveillance Space Technology Audio and Video Systems Aerospace and Defense Energy and Power Systems Transportation and Logistics Medical Imaging Renewable Energy Automotive Robotics and Drones

DB25P064TXLF Information

DB25P064TXLF by Amphenol Communications Solutions is a D Type Connector.
D Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
