DB25-SL-25 by: Adam Technologies Inc

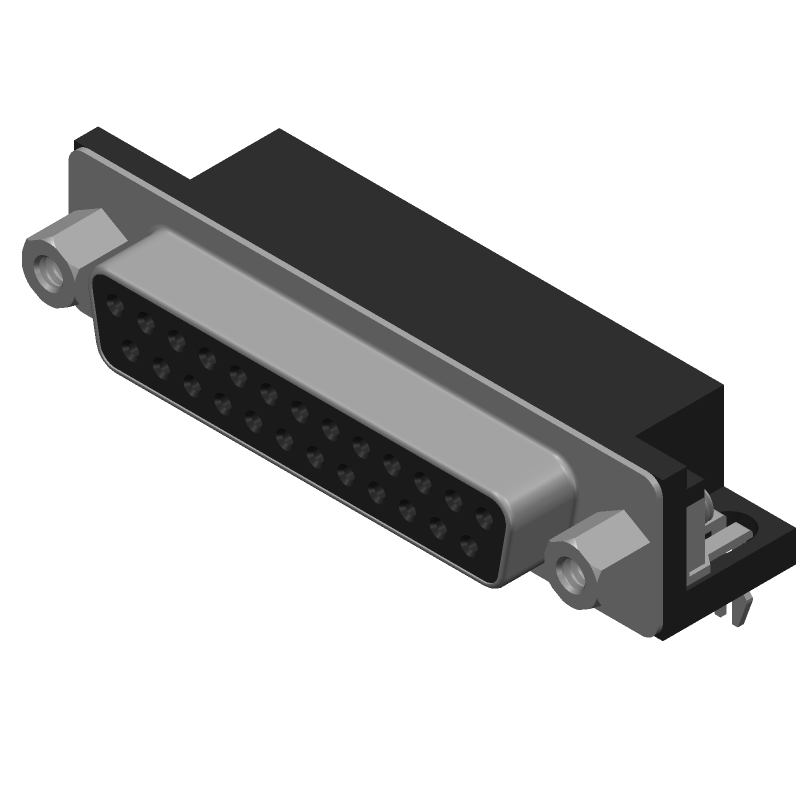

D Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug,

Part Details for DB25-SL-25 by Adam Technologies Inc

Results Overview of DB25-SL-25 by Adam Technologies Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Security and Surveillance Space Technology Audio and Video Systems Aerospace and Defense Energy and Power Systems Transportation and Logistics Medical Imaging Renewable Energy Automotive Robotics and Drones

DB25-SL-25 Information

DB25-SL-25 by Adam Technologies Inc is a D Type Connector.
D Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for DB25-SL-25

Part # Distributor Description Stock Price Buy
DISTI # 2057-DB25-SL-25-ND
DigiKey CONN D-SUB RCPT 25POS R/A SOLDER Min Qty: 1 Lead time: 18 Weeks Container: Tray 2879
In Stock
  • 1 $1.5000
  • 10 $1.2770
  • 25 $1.1968
  • 50 $1.1394
  • 100 $1.0850
  • 250 $1.0170
  • 500 $0.9684
  • 1,000 $0.9222
  • 2,500 $0.8645
$0.8645 / $1.5000 Buy Now
DISTI # 737-DB25-SL-25
Mouser Electronics D-Sub Standard Connectors 25P FEMALE RT ANGL PCB MT .318" RoHS: Compliant 1043
  • 1 $1.4700
  • 10 $1.2000
  • 50 $1.1300
  • 100 $1.0800
  • 250 $1.0100
  • 500 $0.9070
  • 1,000 $0.8590
  • 2,500 $0.8340
  • 5,000 $0.8170
$0.8170 / $1.4700 Buy Now
Future Electronics DSL Series 25 Position Right Angle Socket D-Sub Connector RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 18 Weeks Container: Tray 331
Tray
  • 1 $0.9100
  • 30 $0.8850
  • 125 $0.8600
  • 300 $0.8400
  • 1,250 $0.8000
$0.8000 / $0.9100 Buy Now
DISTI # ADTDB25-SL-25
Heilind Electronics   Americas - 750 in Stock
  • 50 $1.1742
  • 250 $0.9526
  • 500 $0.9180
  • 1,000 $0.9016
$0.9016 / $1.1742 Buy Now
Onlinecomponents.com Connector D-Sub Receptacle 25Pos Right Angle Solder Cup - Tray RoHS: Compliant 3884 In Stock
  • 50 $1.2160
  • 100 $1.1980
  • 250 $1.1800
  • 500 $0.8850
  • 750 $0.8260
  • 1,000 $0.8090
$0.8090 / $1.2160 Buy Now
DISTI # 84432561
Verical Conn D-Sub SKT 25 POS 1.38mm Solder RA Thru-Hole 25 Terminal 1 Port Tray RoHS: Compliant Min Qty: 50 Package Multiple: 50 Date Code: 2314 Americas - 3850
  • 50 $1.4353
  • 100 $1.4118
  • 250 $1.3882
  • 500 $1.0412
  • 750 $0.9718
$0.9718 / $1.4353 Buy Now
Bristol Electronics   89
RFQ
Quest Components FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, SOCKET 9
  • 1 $1.3370
  • 5 $1.2300
$1.2300 / $1.3370 Buy Now
Future Electronics DSL Series 25 Position Right Angle Socket D-Sub Connector Min Qty: 1 Package Multiple: 1 331
null
  • 1 $0.9100
  • 30 $0.8850
  • 125 $0.8600
  • 300 $0.8400
  • 1,250 $0.8000
$0.8000 / $0.9100 Buy Now
DISTI # ADTDB25-SL-25
Interstate Connecting Components   250
  • 50 $1.1742
  • 250 $0.9526
  • 500 $0.9180
  • 1,000 $0.9016
$0.9016 / $1.1742 Buy Now
Master Electronics Connector D-Sub Receptacle 25Pos Right Angle Solder Cup - Tray RoHS: Compliant 3884 In Stock
  • 50 $1.2160
  • 100 $1.1980
  • 250 $1.1800
  • 500 $0.8850
  • 750 $0.8260
  • 1,000 $0.8090
$0.8090 / $1.2160 Buy Now
New Advantage Corporation DSL Series 25 Position Right Angle Socket D-Sub Connector RoHS: Compliant Min Qty: 1 Package Multiple: 50 250
  • 150 $1.5200
  • 250 $1.4000
$1.4000 / $1.5200 Buy Now

Part Details for DB25-SL-25

DB25-SL-25 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

DB25-SL-25 Part Data Attributes

Parametric Data
DB25-SL-25 Adam Technologies Inc
Buy Now Datasheet
Compare Parts:
DB25-SL-25 Adam Technologies Inc D Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug,
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ADAM TECH
Reach Compliance Code compliant
Samacsys Manufacturer Adam Tech
Additional Feature ROHS COMPLIANT
Body Breadth 0.494 inch
Body Depth 0.488 inch
Body Length 2.088 inch
Body/Shell Style PLUG
Connector Type D SUBMINIATURE CONNECTOR
Contact Finish Mating AU ON NI
Contact Finish Termination Gold (Au) - with Nickel (Ni) barrier
Contact Gender FEMALE
Contact Material PHOSPHOR BRONZE
Contact Pattern STAGGERED
Contact Resistance 20 mΩ
Contact Style RND PIN-SKT
Dielectric Withstanding Voltage 1000VAC V
Insulation Resistance 5000000000 Ω
Insulator Color BLACK
Insulator Material GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 Code e4
Mating Contact Pitch 0.109 inch
Mating Contact Row Spacing 0.112 inch
Mounting Option 1 #4-40
Mounting Option 2 JACKSCREW
Mounting Style RIGHT ANGLE
Mounting Type BOARD
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -65 °C
Option GENERAL PURPOSE
PCB Contact Pattern STAGGERED
PCB Contact Row Spacing 2.8448 mm
Plating Thickness FLASH inch
Rated Current (Signal) 5 A
Reference Standard UL, CSA
Shell Finish TIN
Shell Material STEEL
Terminal Length 0.125 inch
Terminal Pitch 2.7686 mm
Termination Type SOLDER
Total Number of Contacts 25
