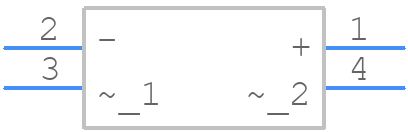

Part Symbol
-

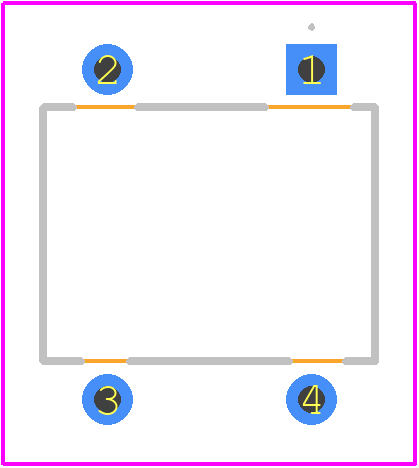

Footprint
-

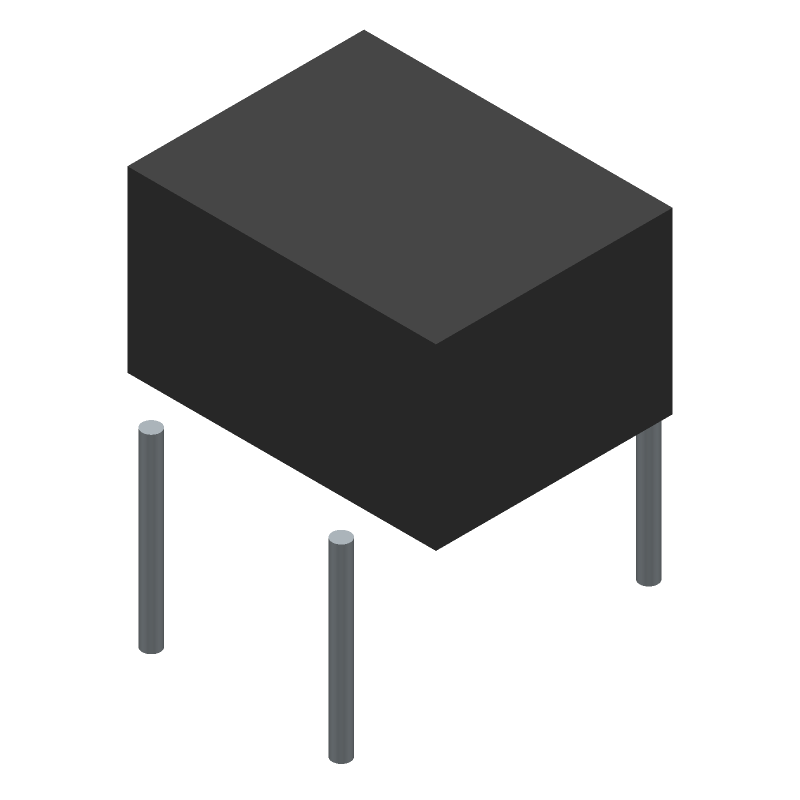

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DB107-BP by Micro Commercial Components
Results Overview of DB107-BP by Micro Commercial Components
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
DB107-BP Information
DB107-BP by Micro Commercial Components is a Bridge Rectifier Diode.
Bridge Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for DB107-BP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
DB107-BPMS-ND
|
DigiKey | BRIDGE RECT 1PHASE 1KV 1A DB-1 Min Qty: 1 Lead time: 16 Weeks Container: Tube |
13851 In Stock |
|
$0.2500 / $1.0000 | Buy Now |
|
DISTI #
833-DB107-BP
|
Mouser Electronics | Bridge Rectifiers 1.0A 1000V RoHS: Compliant | 7855 |
|
$0.2480 / $0.5800 | Buy Now |
|
DISTI #
DB107-BP
|
TME | Bridge rectifier: single-phase, Urmax: 1kV, If: 1A, Ifsm: 30A, DB-1 Min Qty: 5 | 7300 |
|
$0.4280 / $1.0200 | Buy Now |
|
DISTI #
DB107-BP
|
IBS Electronics | DB107-BP by MCC is a 1A 1kV glass passivated bridge rectifier in a DB-1 package, featuring a single-phase design with 4-pin configuration, ideal for efficient AC to DC conversion. Min Qty: 10000 Package Multiple: 1 | 0 |
|
$0.3055 / $0.3445 | Buy Now |
|
|
Cytech Systems Limited | 1000 |
|
RFQ | ||
|
|
New Advantage Corporation | DB107 Series 1 A 1 kV Glass Passivated Bridge Rectifier - DB-1 RoHS: Compliant Min Qty: 1 Package Multiple: 50 | 12000 |
|
$0.4000 / $0.4333 | Buy Now |
|
|
Vyrian | Diodes | 10459 |
|
RFQ |
Part Details for DB107-BP
DB107-BP CAD Models
DB107-BP Part Data Attributes
|
|
DB107-BP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
DB107-BP
Micro Commercial Components
Bridge Rectifier Diode, 1 Phase, 1A, 1000V V(RRM), Silicon, PLASTIC, DB-1, 4 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Pin Count | 4 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Samacsys Manufacturer | MCC | |
| Breakdown Voltage-Min | 1000 V | |
| Configuration | BRIDGE, 4 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | BRIDGE RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.1 V | |
| JESD-30 Code | R-PDIP-T4 | |
| JESD-609 Code | e3 | |
| Non-rep Pk Forward Current-Max | 50 A | |
| Number of Elements | 4 | |
| Number of Phases | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 150 °C | |
| Output Current-Max | 1 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Reference Standard | UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 1000 V | |
| Reverse Current-Max | 10 µA | |
| Surface Mount | NO | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 |
Alternate Parts for DB107-BP
This table gives cross-reference parts and alternative options found for DB107-BP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DB107-BP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| DB107G | Yangzhou Yangjie Electronics Co Ltd | Check for Price | Bridge Rectifier Diode, 1A, 1000V V(RRM) | DB107-BP vs DB107G |
| DB107-BT | Micro Commercial Components | Check for Price | Bridge Rectifier Diode, 1A, 1000V V(RRM), | DB107-BP vs DB107-BT |
DB107-BP Frequently Asked Questions (FAQ)
-
The recommended storage temperature range for DB107-BP is -40°C to 125°C.
-
Yes, DB107-BP is suitable for high-reliability applications due to its high-quality construction and rigorous testing.
-
The maximum operating voltage for DB107-BP is 100V.
-
Yes, DB107-BP is RoHS (Restriction of Hazardous Substances) compliant, making it environmentally friendly.
-
The typical lead time for DB107-BP varies depending on the quantity and availability, but it's usually around 4-6 weeks.
