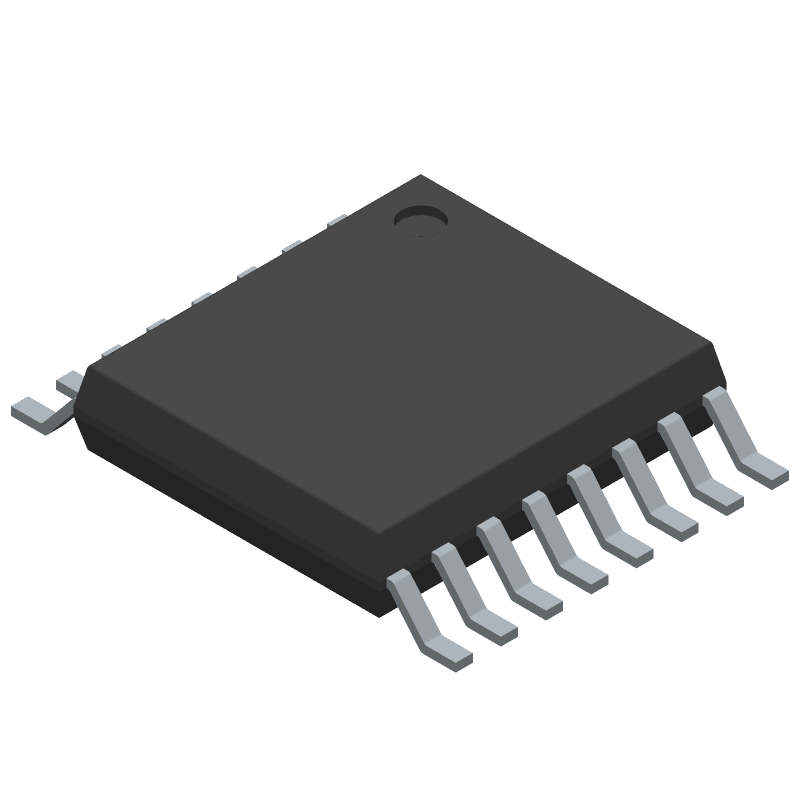

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
16-Bit, High Speed, Low Noise, Voltage Output, Digital to Analog Converter 16-TSSOP -40 to 85
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
DAC8580IPWR by Texas Instruments is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Part # | Distributor | Description | Stock | Price | Buy | |
---|---|---|---|---|---|---|
DISTI #
DAC8580IPWR-ND
|
DigiKey | IC DAC 16BIT V-OUT 16TSSOP Min Qty: 2000 Lead time: 12 Weeks Container: Tape & Reel (TR) | Limited Supply - Call |
|
$10.8356 | Buy Now |
DISTI #
595-DAC8580IPWR
|
Mouser Electronics | Digital to Analog Converters - DAC 16-Bit Hi-Speed Lo N oise Vltg Output A 595-DAC8811ICDGKR RoHS: Compliant | 0 |
|
Order Now | |
|
Vyrian | Peripheral ICs | 1386 |
|
RFQ |
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
|
DAC8580IPWR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
DAC8580IPWR
Texas Instruments
16-Bit, High Speed, Low Noise, Voltage Output, Digital to Analog Converter 16-TSSOP -40 to 85
|
Pbfree Code | Yes | |
Rohs Code | Yes | |
Part Life Cycle Code | Not Recommended | |
Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
Part Package Code | TSSOP | |
Package Description | TSSOP-16 | |
Pin Count | 16 | |
Reach Compliance Code | compliant | |
ECCN Code | EAR99 | |
HTS Code | 8542.39.00.01 | |
Samacsys Manufacturer | Texas Instruments | |
Analog Output Voltage-Max | 5.5 V | |
Analog Output Voltage-Min | -5.5 V | |
Converter Type | D/A CONVERTER | |
Input Bit Code | 2'S COMPLEMENT BINARY | |
Input Format | SERIAL | |
JESD-30 Code | R-PDSO-G16 | |
JESD-609 Code | e4 | |
Length | 5 mm | |
Linearity Error-Max (EL) | 0.1% | |
Moisture Sensitivity Level | 1 | |
Negative Supply Voltage-Nom | -5 V | |
Number of Bits | 16 | |
Number of Functions | 1 | |
Number of Terminals | 16 | |
Operating Temperature-Max | 85 °C | |
Operating Temperature-Min | -40 °C | |
Package Body Material | PLASTIC/EPOXY | |
Package Code | TSSOP | |
Package Equivalence Code | TSSOP16,.25 | |
Package Shape | RECTANGULAR | |
Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
Peak Reflow Temperature (Cel) | 260 | |
Qualification Status | Not Qualified | |
Sample Rate | 1.6 MHz | |
Seated Height-Max | 1.2 mm | |
Settling Time-Max | 0.65 µs | |
Settling Time-Nom (tstl) | 0.65 µs | |
Supply Current-Max | 20 mA | |
Supply Voltage-Nom | 5 V | |
Surface Mount | YES | |
Temperature Grade | INDUSTRIAL | |
Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
Terminal Form | GULL WING | |
Terminal Pitch | 0.65 mm | |
Terminal Position | DUAL | |
Time@Peak Reflow Temperature-Max (s) | 30 | |
Width | 4.4 mm |
This table gives cross-reference parts and alternative options found for DAC8580IPWR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DAC8580IPWR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
Part Number | Manufacturer | Composite Price | Description | Compare |
---|---|---|---|---|
DAC8580IPWG4 | Texas Instruments | Check for Price | 16-Bit, High Speed, Low Noise, Voltage Output, Digital to Analog Converter 16-TSSOP -40 to 85 | DAC8580IPWR vs DAC8580IPWG4 |
PCM56P-L | Texas Instruments | Check for Price | SERIAL INPUT LOADING, 1.5us SETTLING TIME, 16-BIT DAC, PDIP16, PLASTIC, DIP-16 | DAC8580IPWR vs PCM56P-L |
AD1856N-J | Analog Devices Inc | Check for Price | IC SERIAL INPUT LOADING, 1.5 us SETTLING TIME, 16-BIT DAC, PDIP16, PLASTIC, DIP-16, Digital to Analog Converter | DAC8580IPWR vs AD1856N-J |
PCM56P-KG4 | Texas Instruments | Check for Price | SERIAL INPUT LOADING, 1.5us SETTLING TIME, 16-BIT DAC, PDIP16, GREEN, PLASTIC, DIP-16 | DAC8580IPWR vs PCM56P-KG4 |
PCM56P-L | Burr-Brown Corp | Check for Price | D/A Converter, 1 Func, Serial Input Loading, 1.5us Settling Time, PDIP16, PLASTIC, DIP-16 | DAC8580IPWR vs PCM56P-L |
AD1856N | Analog Devices Inc | Check for Price | IC SERIAL INPUT LOADING, 1.5 us SETTLING TIME, 16-BIT DAC, PDIP16, PLASTIC, DIP-16, Digital to Analog Converter | DAC8580IPWR vs AD1856N |
AD1851N | Analog Devices Inc | Check for Price | IC SERIAL INPUT LOADING, 1.5 us SETTLING TIME, 16-BIT DAC, PDIP16, PLASTIC, DIP-16, Digital to Analog Converter | DAC8580IPWR vs AD1851N |
PCM56P | Burr-Brown Corp | Check for Price | D/A Converter, 1 Func, Serial Input Loading, 1.5us Settling Time, PDIP16, PLASTIC, DIP-16 | DAC8580IPWR vs PCM56P |
The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the digital inputs. This ensures proper device operation and prevents latch-up.
The output voltage range of the DAC8580IPWR is dependent on the reference voltage (VREF) and the gain setting. Ensure that the output voltage range is within the specified limits to avoid saturation or clipping.
Clock jitter can affect the DAC8580IPWR's performance by introducing noise and distortion in the output signal. It is recommended to use a low-jitter clock source and to follow proper PCB layout and design practices to minimize clock jitter.
To implement a bipolar output voltage range, use an external amplifier with a gain of -1 and a offset voltage equal to the desired negative output voltage. This will allow the DAC8580IPWR to output a bipolar voltage range.
It is recommended to separate the digital and analog signal traces on the PCB, and to use a solid ground plane to reduce noise and crosstalk. Additionally, use short and direct traces for the clock and data signals to minimize signal degradation.
