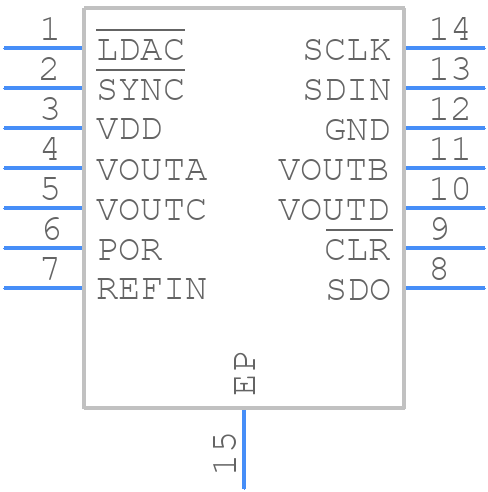

Part Symbol
-
Footprint
-

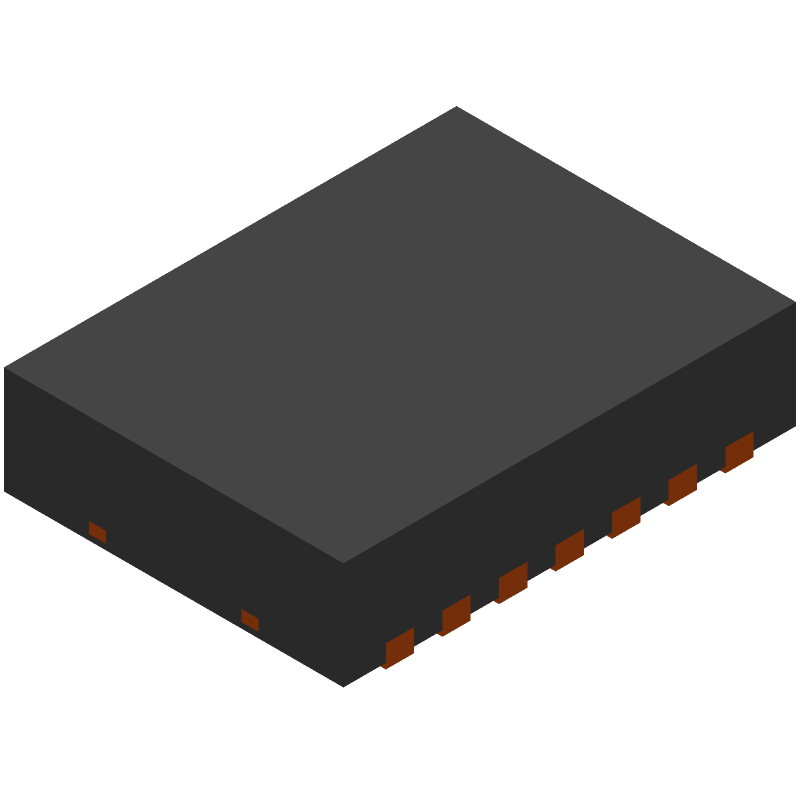

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DAC80004IDMDR by Texas Instruments
Results Overview of DAC80004IDMDR by Texas Instruments
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Entertainment and Gaming
DAC80004IDMDR Information
DAC80004IDMDR by Texas Instruments is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for DAC80004IDMDR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
DAC80004IDMDR-ND
|
DigiKey | IC DAC 16BIT V-OUT 14VSON Min Qty: 3000 Lead time: 6 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$10.1981 | Buy Now |
|
DISTI #
595-DAC80004IDMDR
|
Mouser Electronics | Digital to Analog Converters - DAC Ultra-Small true 16 -bit quad voltage ou A 595-DAC80004IDMDT RoHS: Compliant | 0 |
|
$10.1900 | Order Now |
|
|
Cytech Systems Limited | IC DAC 16BIT V-OUT 14VSON | 9000 |
|
RFQ | |
|
|
LCSC | 8us SPI 1LSB 2.7V5.5V 16-Bit HVSON-14-EP(3x4.5) Digital to Analog Converters (DAC) ROHS | 5 |
|
$25.0081 / $25.5874 | Buy Now |
|
|
Vyrian | Converters | 10096 |
|
RFQ |
Part Details for DAC80004IDMDR
DAC80004IDMDR CAD Models
DAC80004IDMDR Part Data Attributes
|
|
DAC80004IDMDR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
DAC80004IDMDR
Texas Instruments
Ultra-Small, true 16-bit quad voltage output DAC with 1LSB INL/DNL 14-VSON -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | VSON-14 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 2016-06-08 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog Output Voltage-Max | 5.5 V | |
| Analog Output Voltage-Min | ||
| Converter Type | D/A CONVERTER | |
| Input Bit Code | BINARY | |
| Input Format | SERIAL | |
| JESD-30 Code | R-PDSO-N14 | |
| JESD-609 Code | e4 | |
| Length | 4 mm | |
| Linearity Error-Max (EL) | 0.0015% | |
| Moisture Sensitivity Level | 2 | |
| Number of Bits | 16 | |
| Number of Functions | 1 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSON | |
| Package Equivalence Code | SOLCC14,.12,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Sample Rate | 0.2 MHz | |
| Seated Height-Max | 1 mm | |
| Settling Time-Max | 8 µs | |
| Settling Time-Nom (tstl) | 5.8 µs | |
| Supply Current-Max | 5.5 mA | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
Alternate Parts for DAC80004IDMDR
This table gives cross-reference parts and alternative options found for DAC80004IDMDR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DAC80004IDMDR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| DAC80004IPW | Texas Instruments | $10.4082 | Ultra-Small, true 16-bit quad voltage output DAC with 1LSB INL/DNL 14-TSSOP -40 to 125 | DAC80004IDMDR vs DAC80004IPW |
| DAC80004IPWR | Texas Instruments | $8.2961 | Ultra-Small, true 16-bit quad voltage output DAC with 1LSB INL/DNL 14-TSSOP -40 to 125 | DAC80004IDMDR vs DAC80004IPWR |
| DAC80004IDMDT | Texas Instruments | $9.5409 | Ultra-Small, true 16-bit quad voltage output DAC with 1LSB INL/DNL 14-VSON -40 to 125 | DAC80004IDMDR vs DAC80004IDMDT |
DAC80004IDMDR Frequently Asked Questions (FAQ)
-
The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents potential latch-up or damage.
-
The DAC80004 has a rail-to-rail output stage, but the output voltage range is limited to VDD - 0.1V to VREF + 0.1V. Ensure that the output voltage is within this range to avoid distortion and ensure accurate performance.
-
Clock jitter can affect the DAC80004's performance, particularly in high-frequency applications. It's recommended to use a low-jitter clock source and to consider using a clock jitter attenuator or a phase-locked loop (PLL) to minimize the impact of clock jitter.
-
To optimize the DAC80004 for low-power operation, use the lowest possible VDD voltage, reduce the clock frequency, and consider using the device's power-down mode. Additionally, ensure that the output load is minimized and the output voltage swing is reduced.
-
To ensure optimal performance, follow good analog layout and routing practices. Keep the analog and digital signals separate, use a solid ground plane, and minimize the length of the output traces. Additionally, consider using a dedicated analog power supply and decoupling capacitors.
