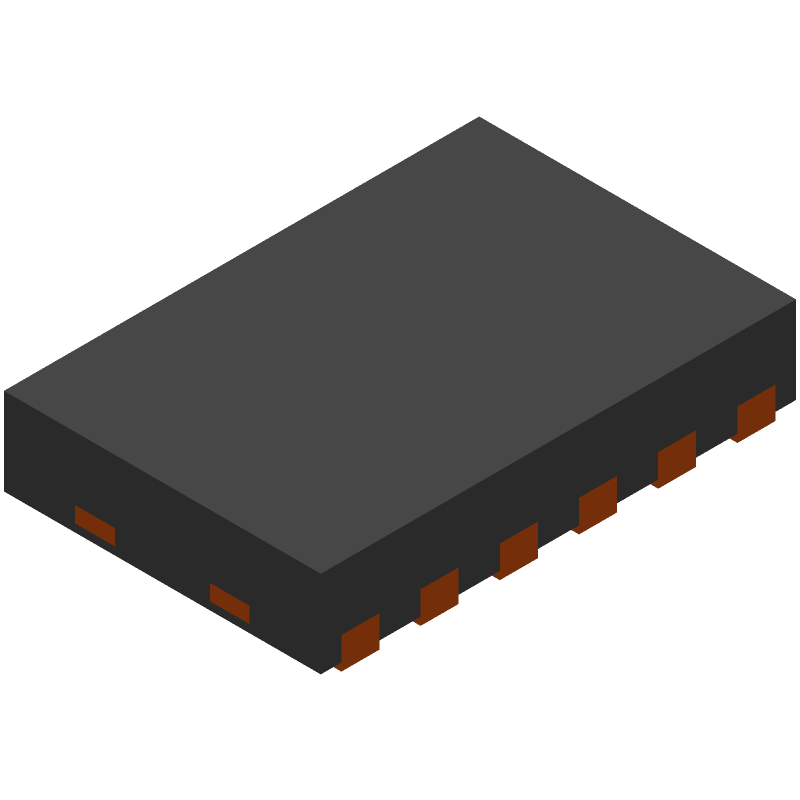

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DAC7551IDRNTG4 by Texas Instruments
Results Overview of DAC7551IDRNTG4 by Texas Instruments
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Environmental Monitoring
Internet of Things (IoT)
Industrial Automation
Agriculture Technology
Medical Imaging
Telecommunications
Automotive
Consumer Electronics
Education and Research
Audio and Video Systems
Computing and Data Storage
Aerospace and Defense
Healthcare
Entertainment and Gaming
DAC7551IDRNTG4 Information
DAC7551IDRNTG4 by Texas Instruments is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for DAC7551IDRNTG4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
595-DAC7551IDRNTG4
|
Mouser Electronics | Digital to Analog Converters - DAC 12-Bit UltrLo Glitch Vltg Output Cnvtr ALT 595-DAC7551IDRNT RoHS: Compliant | 272 |
|
$2.4300 / $6.0400 | Buy Now |
|
|
Rochester Electronics | DAC7551 12-Bit, Ultralow Glitch, Voltage Output Digital to Analog Converter RoHS: Compliant Status: Active Min Qty: 1 | 48 |
|
$1.8900 / $2.3600 | Buy Now |
|
|
Win Source Electronics | IC DAC 12BIT OCTAL 12-SON | 661 |
|
$2.5026 / $3.7539 | Buy Now |
Part Details for DAC7551IDRNTG4
DAC7551IDRNTG4 CAD Models
DAC7551IDRNTG4 Part Data Attributes
|
|
DAC7551IDRNTG4
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
DAC7551IDRNTG4
Texas Instruments
12-Bit, Ultralow Glitch, Voltage Output Digital to Analog Converter 12-USON -40 to 105
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SON | |
| Package Description | SON-12 | |
| Pin Count | 12 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog Output Voltage-Max | 5.5 V | |
| Analog Output Voltage-Min | ||
| Converter Type | D/A CONVERTER | |
| Input Bit Code | BINARY | |
| Input Format | SERIAL | |
| JESD-30 Code | R-PDSO-N12 | |
| JESD-609 Code | e4 | |
| Length | 3 mm | |
| Linearity Error-Max (EL) | 0.0244% | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 12 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC12,.08,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.5 MHz | |
| Seated Height-Max | 0.6 mm | |
| Settling Time-Max | 5 µs | |
| Settling Time-Nom (tstl) | 5 µs | |
| Supply Current-Max | 0.2 mA | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 2 mm |
Alternate Parts for DAC7551IDRNTG4
This table gives cross-reference parts and alternative options found for DAC7551IDRNTG4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DAC7551IDRNTG4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| DAC7551IDRNT | Texas Instruments | $2.0488 | 12-Bit, Ultralow Glitch, Voltage Output Digital to Analog Converter 12-USON -40 to 105 | DAC7551IDRNTG4 vs DAC7551IDRNT |
DAC7551IDRNTG4 Frequently Asked Questions (FAQ)
-
Texas Instruments provides a layout and routing guide in the DAC7551 application note (SLAA443) that recommends keeping analog and digital signals separate, using a solid ground plane, and minimizing trace lengths and loops to reduce noise and ensure accurate performance.
-
To achieve a bipolar output, you can use an external op-amp to level-shift and amplify the output of the DAC7551IDRNTG4. Texas Instruments provides an example circuit in the DAC7551 datasheet (Figure 34) that shows how to achieve a ±5V output range using an op-amp and a few external resistors.
-
The maximum update rate of the DAC7551IDRNTG4 is 30 kSPS, and it affects the power consumption by increasing the current drawn from the supply voltage. According to the datasheet, the power consumption increases by approximately 1 mA for every 10 kSPS of update rate.
-
Texas Instruments recommends using a low-noise, low-dropout regulator (LDO) to power the DAC7551IDRNTG4, and decoupling the power supply lines with 10 μF and 0.1 μF capacitors. Additionally, a 100 nF capacitor should be placed between the VREF pin and ground to filter out noise on the reference voltage.
-
The DAC7551IDRNTG4 has a specified temperature range of -40°C to 125°C, and its accuracy and linearity are affected by temperature. According to the datasheet, the integral nonlinearity (INL) and differential nonlinearity (DNL) specifications degrade by approximately 1 LSB/°C. It is recommended to use temperature compensation or calibration to maintain accuracy and linearity over the operating temperature range.
