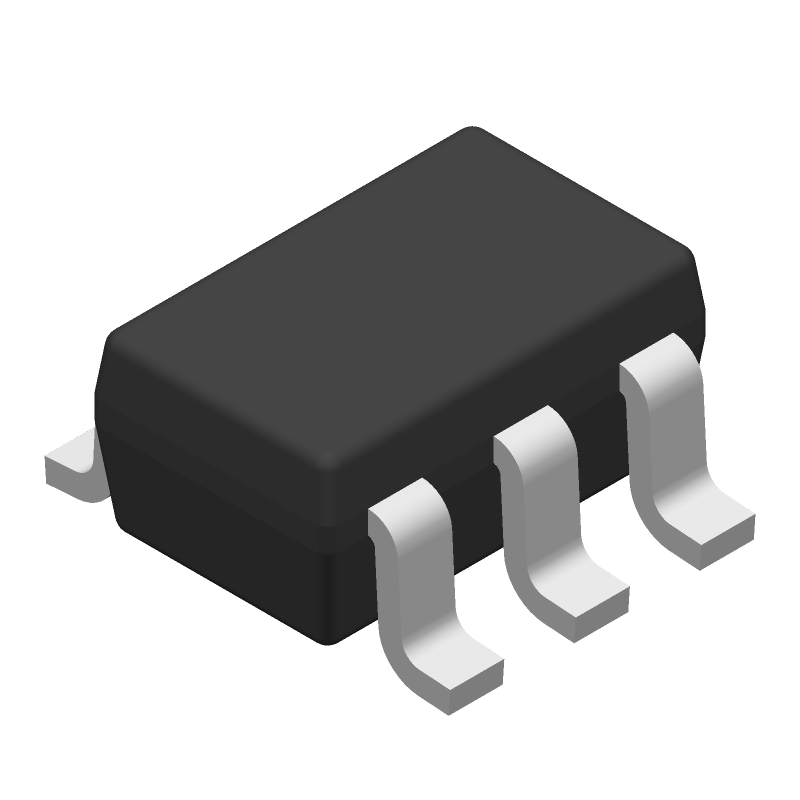

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DAC6311IDCKT by Texas Instruments
Results Overview of DAC6311IDCKT by Texas Instruments
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Education and Research
Environmental Monitoring
Industrial Automation
Audio and Video Systems
Agriculture Technology
Medical Imaging
Entertainment and Gaming
DAC6311IDCKT Information
DAC6311IDCKT by Texas Instruments is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for DAC6311IDCKT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-23716-1-ND
|
DigiKey | IC DAC 10BIT V-OUT SC70-6 Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
3189 In Stock |
|
$1.0180 / $2.3700 | Buy Now |
|
DISTI #
595-DAC6311IDCKT
|
Mouser Electronics | Digital to Analog Converters - DAC 10B Sgl Ch 80uA DAC A 595-DAC6311IDCKR RoHS: Compliant | 633 |
|
$1.0700 / $2.3700 | Buy Now |
|
|
Bristol Electronics | 500 |
|
RFQ | ||
|
|
Quest Components | SERIAL INPUT LOADING, 12 us SETTLING TIME, 10-BIT DAC, PDSO6 | 400 |
|
$1.2321 / $2.6640 | Buy Now |
|
|
Quest Components | SERIAL INPUT LOADING, 12 us SETTLING TIME, 10-BIT DAC, PDSO6 | 139 |
|
$1.8000 / $3.6000 | Buy Now |
|
|
Rochester Electronics | DAC6311 10bit, Single Channel, 80uA, 2.0V-5.5V DAC in SC70 Package RoHS: Compliant Status: Active Min Qty: 1 | 71 |
|
$0.9324 / $1.5000 | Buy Now |
|
|
Vyrian | Converters | 10785 |
|
RFQ | |
|
|
Win Source Electronics | IC DAC 10BIT 1CH LP SC70-6 | 14640 |
|
$0.9385 / $1.4076 | Buy Now |
Part Details for DAC6311IDCKT
DAC6311IDCKT CAD Models
DAC6311IDCKT Part Data Attributes
|
|
DAC6311IDCKT
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
DAC6311IDCKT
Texas Instruments
10bit, Single Channel, 80uA, 2.0V-5.5V DAC in SC70 Package 6-SC70 -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | SC-70, 6 PIN | |
| Pin Count | 6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog Output Voltage-Max | 5.5 V | |
| Analog Output Voltage-Min | ||
| Converter Type | D/A CONVERTER | |
| Input Bit Code | BINARY | |
| Input Format | SERIAL | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e4 | |
| Length | 2 mm | |
| Linearity Error-Max (EL) | 0.0488% | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 10 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP6,.08 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.083 MHz | |
| Seated Height-Max | 1.1 mm | |
| Settling Time-Max | 10 µs | |
| Settling Time-Nom (tstl) | 6 µs | |
| Supply Current-Max | 0.16 mA | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.25 mm |
Alternate Parts for DAC6311IDCKT
This table gives cross-reference parts and alternative options found for DAC6311IDCKT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DAC6311IDCKT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| DAC6311IDCKR | Texas Instruments | $0.7794 | 10bit, Single Channel, 80uA, 2.0V-5.5V DAC in SC70 Package 6-SC70 -40 to 125 | DAC6311IDCKT vs DAC6311IDCKR |
| DAC6311IDCKTG4 | Texas Instruments | Check for Price | 10bit, Single Channel, 80uA, 2.0V-5.5V DAC in SC70 Package 6-SC70 -40 to 125 | DAC6311IDCKT vs DAC6311IDCKTG4 |
DAC6311IDCKT Frequently Asked Questions (FAQ)
-
The recommended power-up sequence is to apply VDD first, followed by AVDD, and then the digital supply (DVDD). This ensures that the analog and digital circuits are properly biased before the device is fully powered up.
-
To ensure accurate voltage output, it's essential to use a stable reference voltage, minimize noise on the analog input pins, and use a low-noise power supply. Additionally, consider using a voltage reference buffer amplifier to further improve accuracy.
-
The maximum output current of the DAC6311 is 5 mA. Exceeding this current limit may cause damage to the device or affect its accuracy.
-
Yes, the DAC6311 can operate with a single supply voltage. However, the output voltage range will be limited to 0 V to VDD. For a bipolar output, a dual supply voltage is required.
-
During power-up, ensure that the digital interface is in a high-impedance state until the device is fully powered up. During power-down, ensure that the digital interface is in a high-impedance state before powering down the device.
