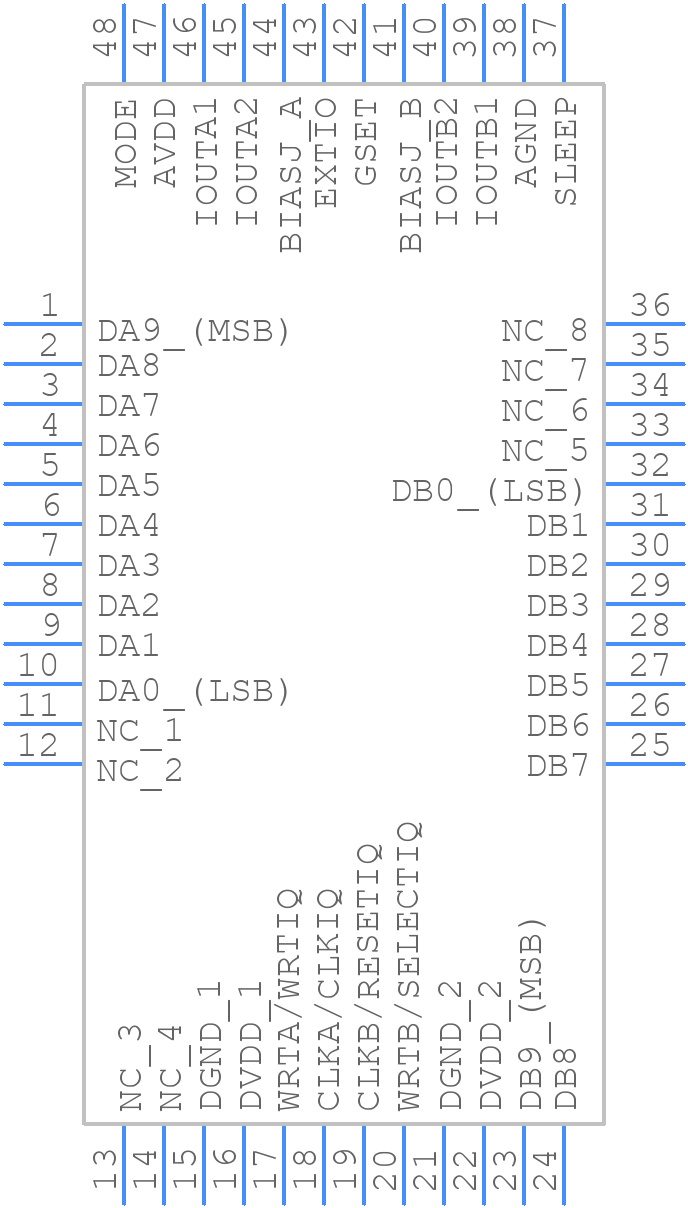

Part Symbol
-
Footprint
-

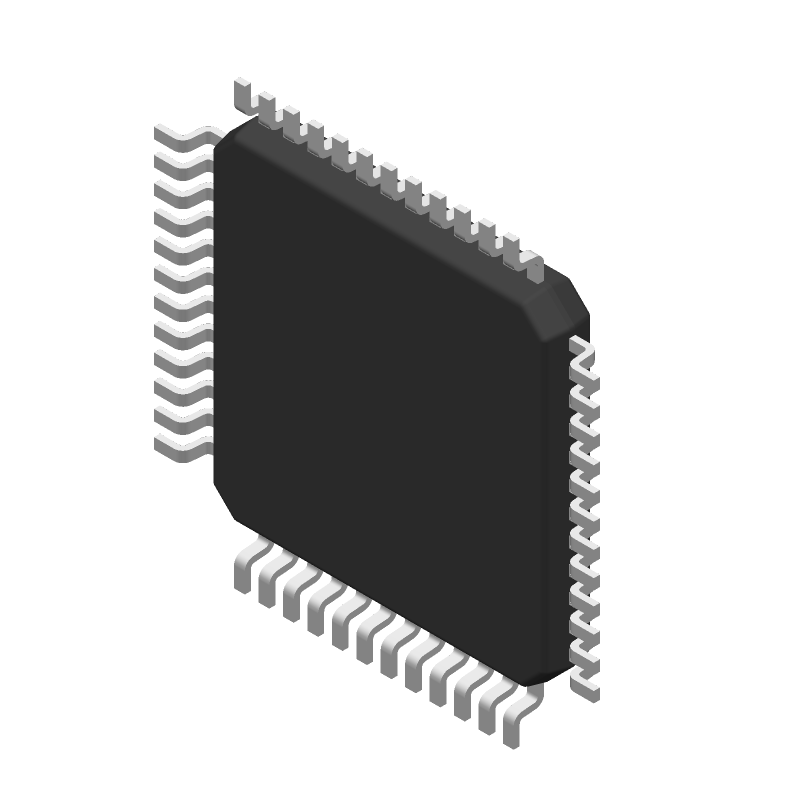

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DAC5652IPFB by Texas Instruments
Results Overview of DAC5652IPFB by Texas Instruments
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Education and Research
Internet of Things (IoT)
Audio and Video Systems
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
DAC5652IPFB Information
DAC5652IPFB by Texas Instruments is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| DAC5652IPFBR | Texas Instruments | Dual-Channel, 10-Bit, 275-MSPS Digital-to-Analog Converter (DAC) 48-TQFP -40 to 85 | |
| DAC5652IPFB | Texas Instruments | Dual-Channel, 10-Bit, 275-MSPS Digital-to-Analog Converter (DAC) 48-TQFP -40 to 85 |
Price & Stock for DAC5652IPFB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-DAC5652IPFB-ND
|
DigiKey | IC DAC 10BIT A-OUT 48TQFP Min Qty: 1 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT |
19821 In Stock |
|
$12.9300 | Buy Now |
|
DISTI #
296-17892-ND
|
DigiKey | IC DAC 10BIT A-OUT 48TQFP Min Qty: 1 Lead time: 6 Weeks Container: Tray |
83 In Stock |
|
$12.5017 / $19.2900 | Buy Now |
|
DISTI #
595-DAC5652IPFB
|
Mouser Electronics | Digital to Analog Converters - DAC Dual 10bit 200MSPS A 595-DAC5652IPFBR RoHS: Compliant | 111 |
|
$12.3600 / $19.2900 | Buy Now |
|
DISTI #
85982877
|
Verical | DAC 2-CH Segment 10-bit 48-Pin TQFP Tray RoHS: Compliant Min Qty: 25 Package Multiple: 1 Date Code: 1201 | Americas - 8982 |
|
$15.5750 | Buy Now |
|
DISTI #
85978222
|
Verical | DAC 2-CH Segment 10-bit 48-Pin TQFP Tray RoHS: Compliant Min Qty: 25 Package Multiple: 1 Date Code: 1001 | Americas - 5365 |
|
$15.5750 | Buy Now |
|
DISTI #
85978440
|
Verical | DAC 2-CH Segment 10-bit 48-Pin TQFP Tray RoHS: Compliant Min Qty: 25 Package Multiple: 1 Date Code: 1101 | Americas - 4155 |
|
$15.5750 | Buy Now |
|
DISTI #
85982827
|
Verical | DAC 2-CH Segment 10-bit 48-Pin TQFP Tray RoHS: Compliant Min Qty: 25 Package Multiple: 1 Date Code: 0501 | Americas - 1272 |
|
$15.5750 | Buy Now |
|
DISTI #
85982122
|
Verical | DAC 2-CH Segment 10-bit 48-Pin TQFP Tray RoHS: Compliant Min Qty: 25 Package Multiple: 1 Date Code: 0601 | Americas - 47 |
|
$15.5750 | Buy Now |
|
|
Bristol Electronics | 22 |
|
RFQ | ||
|
|
Quest Components | 17 |
|
$17.3752 / $21.1320 | Buy Now |
Part Details for DAC5652IPFB
DAC5652IPFB CAD Models
DAC5652IPFB Part Data Attributes
|
|
DAC5652IPFB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
DAC5652IPFB
Texas Instruments
Dual-Channel, 10-Bit, 275-MSPS Digital-to-Analog Converter (DAC) 48-TQFP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | QFP | |
| Package Description | GREEN, PLASTIC, TQFP-48 | |
| Pin Count | 48 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog Output Voltage-Max | 1.25 V | |
| Analog Output Voltage-Min | -1 V | |
| Converter Type | D/A CONVERTER | |
| Input Bit Code | OFFSET BINARY | |
| Input Format | PARALLEL, WORD | |
| JESD-30 Code | S-PQFP-G48 | |
| JESD-609 Code | e4 | |
| Length | 7 mm | |
| Linearity Error-Max (EL) | 0.0977% | |
| Moisture Sensitivity Level | 2 | |
| Number of Bits | 10 | |
| Number of Functions | 2 | |
| Number of Terminals | 48 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TFQFP | |
| Package Equivalence Code | TQFP48,.35SQ | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, THIN PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 275 MHz | |
| Seated Height-Max | 1.2 mm | |
| Settling Time-Nom (tstl) | 0.02 µs | |
| Supply Current-Max | 90 mA | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7 mm |
DAC5652IPFB Frequently Asked Questions (FAQ)
-
The recommended power-up sequence is to apply VCC first, followed by AVCC, and then DVCC. This ensures that the internal voltage regulators are powered up correctly.
-
To ensure accurate voltage output, it is essential to use a high-quality voltage reference, such as the Texas Instruments REF5025. Additionally, ensure that the output voltage is properly filtered and decoupled to minimize noise and ripple.
-
The maximum update rate of the DAC5652IPFB is 200 MSPS. However, this rate can be affected by the clock frequency, data format, and other system-level factors.
-
The DAC5652IPFB has a 16-bit parallel digital interface. Ensure that the interface is properly terminated, and the clock and data signals are properly synchronized to prevent data corruption.
-
The DAC5652IPFB has a maximum junction temperature of 150°C. Ensure that the device is properly heat-sinked, and the PCB is designed to dissipate heat efficiently. Additionally, consider using thermal interface materials to improve heat transfer.
