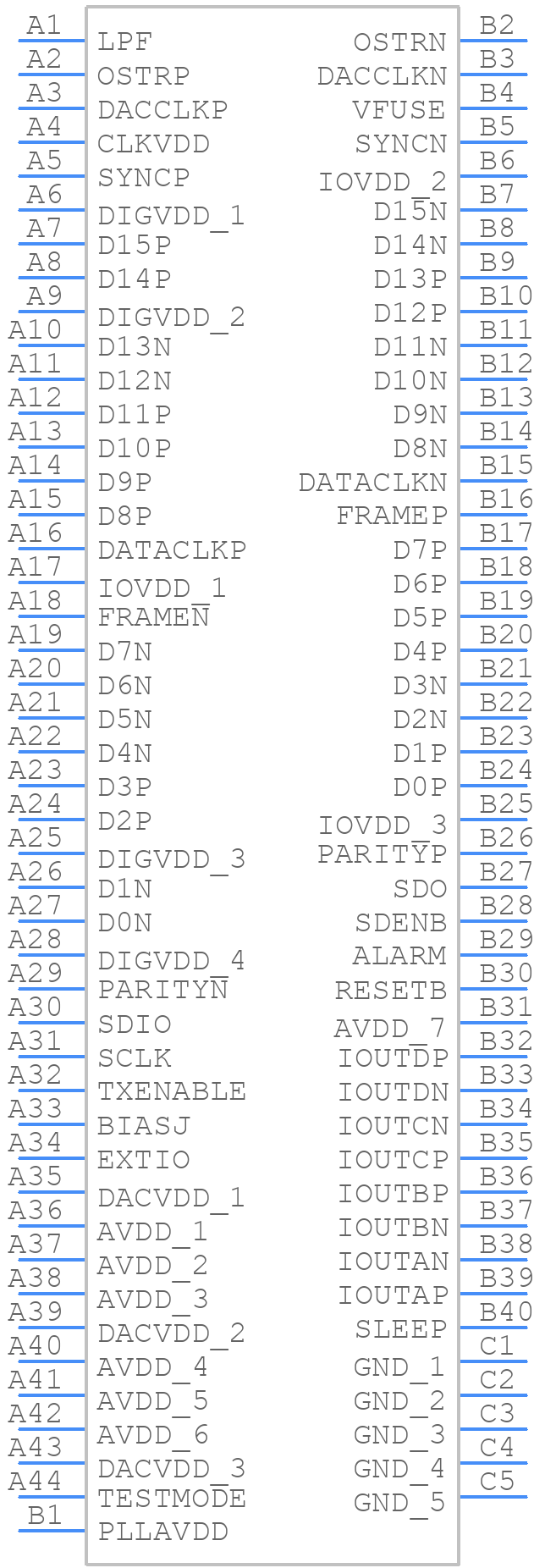

Part Symbol
-

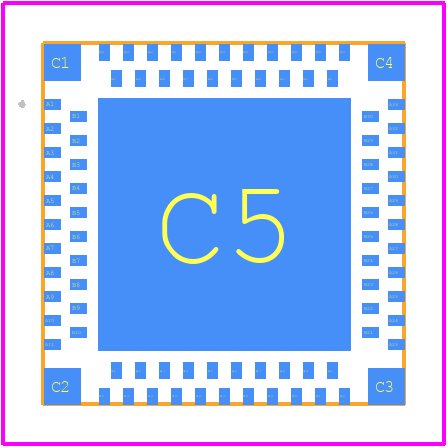

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DAC3484IRKDT by Texas Instruments
Results Overview of DAC3484IRKDT by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Education and Research
Internet of Things (IoT)
Audio and Video Systems
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
DAC3484IRKDT Information
DAC3484IRKDT by Texas Instruments is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for DAC3484IRKDT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
595-DAC3484IRKDT
|
Mouser Electronics | Digital to Analog Converters - DAC 4Ch 16B 1.25GSPS DAC A 595-DAC3484IRKDR RoHS: Compliant | 157 |
|
$70.4800 / $98.5100 | Buy Now |
|
DISTI #
V72:2272_07252736
|
Arrow Electronics | DAC 4-CH Segment 16-bit 88-Pin WQFN EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 18 Weeks Date Code: 1824 Container: Cut Strips | Americas - 36 |
|
$17.0300 / $68.0245 | Buy Now |
|
|
Quest Components | D/A CONVERTER, 1 FUNC, SERIAL INPUT LOADING, 0.01US SETTLING TIME, PQCC88 | 155 |
|
Buy Now | |
|
DISTI #
DAC3484IRKDT
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 5 |
|
$59.7000 | Buy Now |
Part Details for DAC3484IRKDT
DAC3484IRKDT CAD Models
DAC3484IRKDT Part Data Attributes
|
|
DAC3484IRKDT
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
DAC3484IRKDT
Texas Instruments
Quad-Channel, 16-Bit, 1.25-GSPS, 1x-16x Interpolating Digital-to-Analog Converter (DAC) 88-WQFN-MR -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | QFN | |
| Package Description | WQFN-88 | |
| Pin Count | 88 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog Output Voltage-Max | 0.6 V | |
| Analog Output Voltage-Min | -0.5 V | |
| Converter Type | D/A CONVERTER | |
| Input Bit Code | OFFSET BINARY, 2'S COMPLEMENT BINARY | |
| Input Format | SERIAL | |
| JESD-30 Code | S-PQCC-N88 | |
| JESD-609 Code | e4 | |
| Length | 9 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Bits | 16 | |
| Number of Functions | 1 | |
| Number of Terminals | 88 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVQCCN | |
| Package Equivalence Code | SLGA88,15X15,24 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 1250 MHz | |
| Seated Height-Max | 0.8 mm | |
| Settling Time-Nom (tstl) | 0.01 µs | |
| Supply Current-Max | 650 mA | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.6 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 9 mm |
