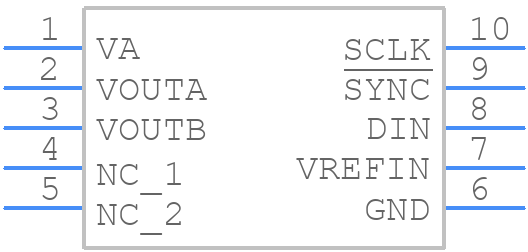

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DAC082S085CIMMX/NOPB by Texas Instruments
Results Overview of DAC082S085CIMMX/NOPB by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (7 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Education and Research
Environmental Monitoring
Industrial Automation
Audio and Video Systems
Agriculture Technology
Medical Imaging
DAC082S085CIMMX/NOPB Information
DAC082S085CIMMX/NOPB by Texas Instruments is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| DS96174CN/NOPB | Rochester Electronics LLC | DS96174 - Line Driver, 4 Func, 4 Driver, BIPolar, PDIP16 | |
| LM611IM/NOPB | Rochester Electronics LLC | LM611IM - Operational Amplifier, 7000uV Offset-Max, BIPolar |
Price & Stock for DAC082S085CIMMX/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-DAC082S085CIMMX/NOPBCT-ND
|
DigiKey | IC DAC 8BIT V-OUT 10VSSOP Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
2081 In Stock |
|
$0.8411 / $1.7600 | Buy Now |
|
DISTI #
926-D082S085CIMMXNPB
|
Mouser Electronics | Digital to Analog Converters - DAC 8-Bit Micro Power DU AL Digital-to-Analog A 926-DAC082S085CIMMNO RoHS: Compliant | 194 |
|
$0.8190 / $2.7200 | Buy Now |
|
|
LCSC | VSSOP-10-0.5mm Digital to Analog Converters (DAC) ROHS | 234 |
|
$1.1744 / $2.0004 | Buy Now |
|
|
Win Source Electronics | IC DAC 8BIT 2CH 10VSSOP | 3000 |
|
$1.7997 / $2.6996 | Buy Now |
Part Details for DAC082S085CIMMX/NOPB
DAC082S085CIMMX/NOPB CAD Models
DAC082S085CIMMX/NOPB Part Data Attributes
|
|
DAC082S085CIMMX/NOPB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
DAC082S085CIMMX/NOPB
Texas Instruments
8-Bit Micro Power DUAL Digital-to-Analog Converter with Rail-to-Rail Output 10-VSSOP -40 to 105
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SSOP | |
| Package Description | VSSOP-10 | |
| Pin Count | 10 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog Output Voltage-Max | 5.5 V | |
| Analog Output Voltage-Min | ||
| Converter Type | D/A CONVERTER | |
| Input Bit Code | BINARY | |
| Input Format | SERIAL | |
| JESD-30 Code | S-PDSO-G10 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Linearity Error-Max (EL) | 0.1953% | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 10 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP10,.19,20 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 2.5 MHz | |
| Seated Height-Max | 1.1 mm | |
| Settling Time-Max | 4.5 µs | |
| Settling Time-Nom (tstl) | 4.5 µs | |
| Supply Current-Max | 0.41 mA | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
Alternate Parts for DAC082S085CIMMX/NOPB
This table gives cross-reference parts and alternative options found for DAC082S085CIMMX/NOPB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DAC082S085CIMMX/NOPB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| DAC082S085CIMM | Texas Instruments | Check for Price | 8-Bit Micro Power DUAL Digital-to-Analog Converter with Rail-to-Rail Output 10-VSSOP -40 to 105 | DAC082S085CIMMX/NOPB vs DAC082S085CIMM |
DAC082S085CIMMX/NOPB Frequently Asked Questions (FAQ)
-
The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents potential latch-up conditions.
-
To ensure accurate voltage output, it's essential to use a stable and low-noise voltage reference (VREF) and to decouple the power supply lines with suitable capacitors. Additionally, ensure that the output load is within the specified range and that the output voltage is not overloaded.
-
The maximum output current of the DAC082S085 is 5 mA. Exceeding this current may cause damage to the device or affect its accuracy.
-
During power-up and power-down, it's recommended to keep the digital inputs in a high-impedance state or tie them to a fixed logic level to prevent unwanted device operation or latch-up conditions.
-
The thermal impedance of the DAC082S085 package (MSOP-8) is typically around 45°C/W. This information is essential for thermal management and heat dissipation considerations in the system design.
