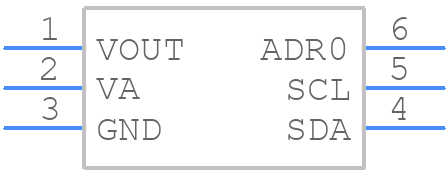

Part Symbol
-
Footprint
-

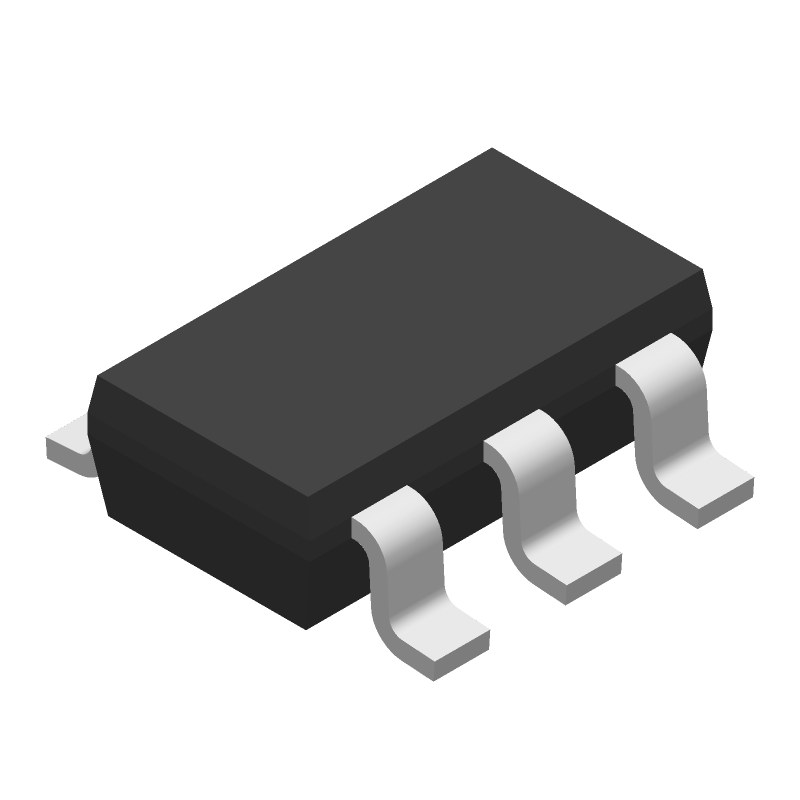

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DAC081C081CIMK/NOPB by Texas Instruments
Results Overview of DAC081C081CIMK/NOPB by Texas Instruments
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (4 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Entertainment and Gaming
DAC081C081CIMK/NOPB Information
DAC081C081CIMK/NOPB by Texas Instruments is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for DAC081C081CIMK/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
3005632
|
Farnell | DAC, 8BIT, SOT-23-6 RoHS: Compliant Min Qty: 1 Lead time: 53 Weeks, 2 Days Container: Cut Tape | 244 |
|
$0.9261 / $1.8229 | Buy Now |
|
DISTI #
3005632RL
|
Farnell | DAC, 8BIT, SOT-23-6 RoHS: Compliant Min Qty: 100 Lead time: 53 Weeks, 2 Days Container: Reel | 244 |
|
$0.9261 / $1.0804 | Buy Now |
|
DISTI #
DAC081C081CIMK/NOPBCT-ND
|
DigiKey | IC DAC 8BIT V-OUT TSOT23-6 Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
668 In Stock |
|
$0.8027 / $1.6700 | Buy Now |
|
DISTI #
926-DA081C081CIMKNPB
|
Mouser Electronics | Digital to Analog Converters - DAC 8B Micro Pwr DAC A 926-D081C081CIMKXNPB RoHS: Compliant | 3776 |
|
$0.7970 / $1.6700 | Buy Now |
|
DISTI #
DAC081C081CIMKNOPB
|
TME | IC: D/A converter, 8bit, 180ksps, Ch: 1, SOT23-THN-6, -40÷125°C Min Qty: 1 | 997 |
|
$0.7700 / $1.6000 | Buy Now |
|
DISTI #
SMC-DAC081C081CIMK/NOPB
|
Sensible Micro Corporation | AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 8573 |
|
RFQ | |
|
DISTI #
SMC-DAC081C081CIMK/NOPB
|
Sensible Micro Corporation | AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days Date Code: 2434*687 | 457 |
|
RFQ | |
|
DISTI #
SMC-DAC081C081CIMK/NOPB
|
Sensible Micro Corporation | AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days Date Code: 2332*9710 | 452 |
|
RFQ | |
|
DISTI #
DAC081C081CIMK/NOPB
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 898 |
|
$0.7660 / $1.6000 | Buy Now |
|
|
LCSC | 4.5us I2C 0.6LSB 2.7V5.5V 8Bit TSOT-23-6 Digital to Analog Converters (DAC) ROHS | 52 |
|
$0.8953 / $0.9473 | Buy Now |
Part Details for DAC081C081CIMK/NOPB
DAC081C081CIMK/NOPB CAD Models
DAC081C081CIMK/NOPB Part Data Attributes
|
|
DAC081C081CIMK/NOPB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
DAC081C081CIMK/NOPB
Texas Instruments
8-Bit Micro Power Digital-to-Analog Converter with an I2C-Compatible Interface 6-SOT-23-THIN -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOT | |
| Package Description | SOT-6 | |
| Pin Count | 6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog Output Voltage-Max | 5.5 V | |
| Analog Output Voltage-Min | ||
| Converter Type | D/A CONVERTER | |
| Input Bit Code | BINARY | |
| Input Format | SERIAL | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e4 | |
| Length | 2.9 mm | |
| Linearity Error-Max (EL) | 0.2344% | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSOP6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.18 MHz | |
| Seated Height-Max | 1.1 mm | |
| Settling Time-Max | 4.5 µs | |
| Settling Time-Nom (tstl) | 4.5 µs | |
| Supply Current-Max | 0.5 mA | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.6 mm |
