D5V0X1B2LP3-7 Information
D5V0X1B2LP3-7 by Diodes Incorporated is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for D5V0X1B2LP3-7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
28AK9132
|
Newark | Tvs Diode, Bidir, 5.5V, X2-Dfn0603 Rohs Compliant: Yes |Diodes Inc. D5V0X1B2LP3-7 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2610 |
|
$0.1500 / $0.4060 | Buy Now |
|
DISTI #
D5V0X1B2LP3-7DICT-ND
|
DigiKey | TVS DIODE 5.5VWM 14VC X3DFN06032 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
14015 In Stock |
|
$0.0788 / $0.2200 | Buy Now |
|
DISTI #
D5V0X1B2LP3-7
|
Avnet Americas | TVS Diode, Bidirectional, 5.5 V, 14 V, X2-DFN0603, 2 Pins - Tape and Reel (Alt: D5V0X1B2LP3-7) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 12 Weeks, 0 Days Container: Reel | 16730000 Factory Stock |
|
$0.0741 / $0.0780 | Buy Now |
|
DISTI #
621-D5V0X1B2LP37
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes Ultra Low Cap TVS 7V 1.5A 0.23pF RoHS: Compliant | 12300 |
|
$0.0780 / $0.2000 | Buy Now |
|
DISTI #
V72:2272_06696614
|
Arrow Electronics | ESD Suppressor Diode TVS Bi-Dir 5.5V 14Vc 2-Pin X3-DFN T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2445 Container: Cut Strips | Americas - 10000 |
|
$0.0941 / $0.2196 | Buy Now |
|
|
Bristol Electronics | 45554 |
|
RFQ | ||
|
|
Quest Components | 36443 |
|
$0.0972 / $0.6480 | Buy Now | |
|
DISTI #
D5V0X1B2LP3-7
|
TME | Diode: TVS, 7V, 1.5A, bidirectional, 0201,0603 Min Qty: 1 | 0 |
|
$0.0890 / $0.4710 | RFQ |
|
DISTI #
D5V0X1B2LP3-7
|
Avnet Silica | TVS Diode Bidirectional 55 V 14 V X2DFN0603 2 Pins (Alt: D5V0X1B2LP3-7) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 10 Weeks, 0 Days | Silica - 10000 |
|
Buy Now | |
|
|
New Advantage Corporation | RoHS: Compliant Min Qty: 1 Package Multiple: 10000 | 10000 |
|
$0.1205 | Buy Now |
Part Details for D5V0X1B2LP3-7

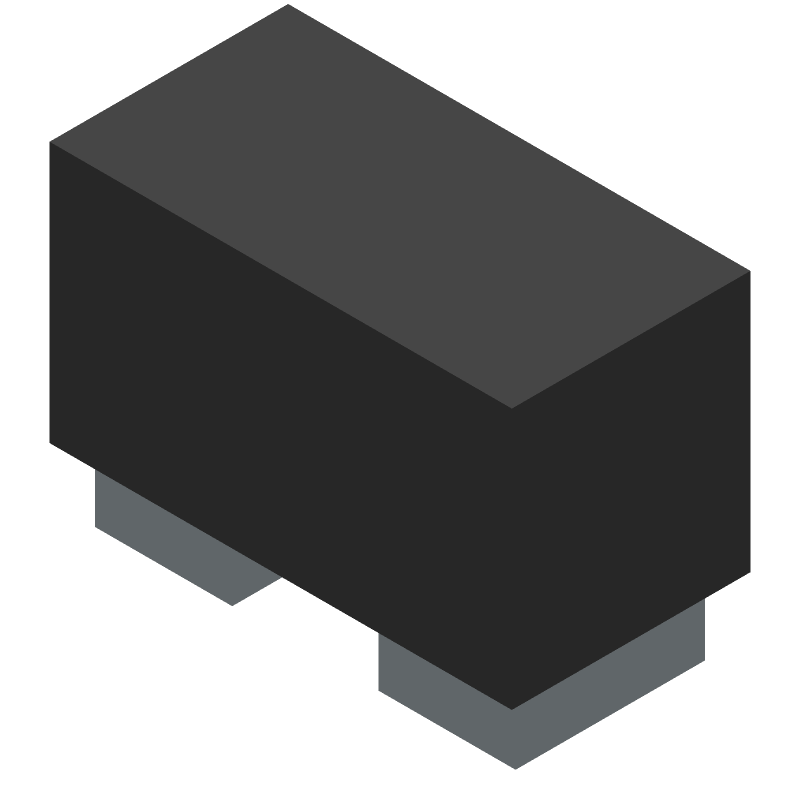

D5V0X1B2LP3-7 CAD Models
D5V0X1B2LP3-7 Part Data Attributes
|
|
D5V0X1B2LP3-7
Diodes Incorporated
Buy Now
Datasheet
|
Compare Parts:
D5V0X1B2LP3-7
Diodes Incorporated
Trans Voltage Suppressor Diode, 5.5V V(RWM), Bidirectional, 1 Element, Silicon, X3-DFN0603-2, 2 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | DIODES INC | |
| Package Description | X3-DFN0603-2, 2 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Diodes Incorporated | |
| Breakdown Voltage-Min | 7 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JESD-30 Code | R-PBCC-N2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | CHIP CARRIER | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Power Dissipation-Max | 0.25 W | |
| Rep Pk Reverse Voltage-Max | 5.5 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | NO LEAD | |
| Terminal Position | BOTTOM |
