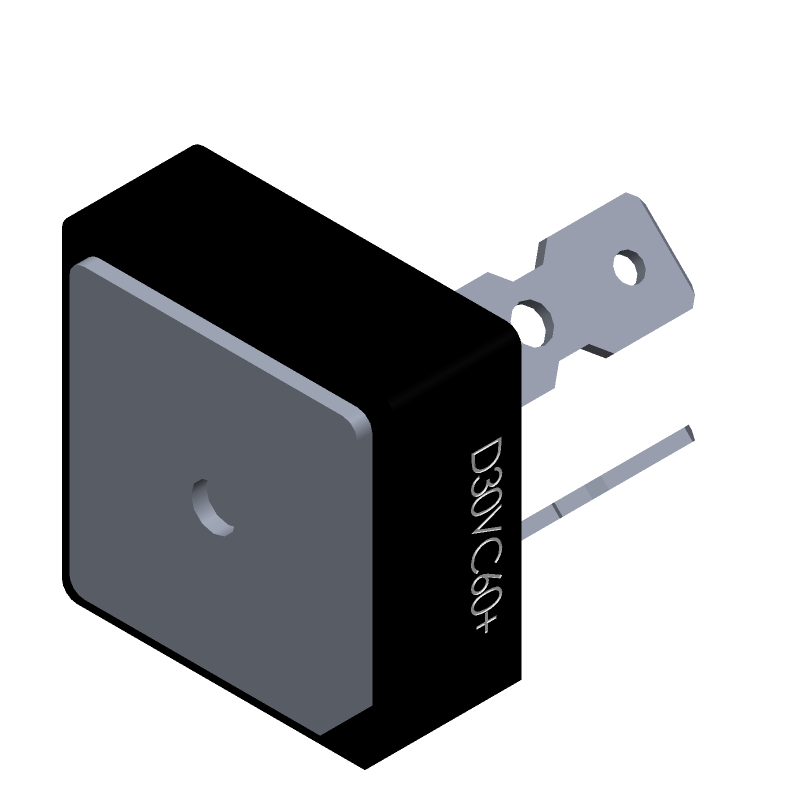

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for D30VC60-4000 by Shindengen Electronic Manufacturing Co Ltd
Results Overview of D30VC60-4000 by Shindengen Electronic Manufacturing Co Ltd
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
D30VC60-4000 Information
D30VC60-4000 by Shindengen Electronic Manufacturing Co Ltd is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| PTH04000WAH | Texas Instruments | 3-A, 3.3/5-V Input Adjustable Switching Regulator with Auto-Track Sequencing 6-Through-Hole Module -40 to 85 | |
| TPS40001DGQ | Texas Instruments | Low Input Voltage Mode Synchronous Buck Controller 10-MSOP-PowerPAD -40 to 85 | |
| TPS40003DGQR | Texas Instruments | Low Input Voltage Mode Synchronous Buck Controller 10-MSOP-PowerPAD -40 to 85 |
Price & Stock for D30VC60-4000
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
627-D30VC60-4000
|
Mouser Electronics | Rectifiers Diode Module RoHS: Compliant | 70 |
|
$4.6300 / $8.1800 | Buy Now |
|
DISTI #
77293664
|
Verical | 0 Min Qty: 7 Package Multiple: 1 | Americas - 299 |
|
$10.1387 / $11.8473 | Buy Now |
|
DISTI #
84341325
|
Verical | 0 Min Qty: 8 Package Multiple: 1 | Americas - 100 |
|
$6.5882 / $8.2353 | Buy Now |
|
DISTI #
62815714
|
Verical | 0 Min Qty: 7 Package Multiple: 1 | Americas - 98 |
|
$10.8456 / $11.8473 | Buy Now |
|
DISTI #
63366209
|
Verical | 0 Min Qty: 7 Package Multiple: 1 Date Code: 2201 | Americas - 40 |
|
$11.3003 / $11.8473 | Buy Now |
|
|
Quest Components | 349 |
|
$11.4915 / $17.2373 | Buy Now | |
|
DISTI #
D30VC60-4000
|
TME | Diode: rectifying, THT, 600V, 30A, Ifsm: 300A, D30VC, Ufmax: 1.05V Min Qty: 1 | 100 |
|
$5.1200 / $8.6700 | Buy Now |
|
|
New Advantage Corporation | DIODE STAND. Single 30A 600V THT RoHS: Compliant Min Qty: 1 Package Multiple: 100 | 176 |
|
$12.1100 / $13.1200 | Buy Now |
Part Details for D30VC60-4000
D30VC60-4000 CAD Models
D30VC60-4000 Part Data Attributes
|
|
D30VC60-4000
Shindengen Electronic Manufacturing Co Ltd
Buy Now
Datasheet
|
Compare Parts:
D30VC60-4000
Shindengen Electronic Manufacturing Co Ltd
Rectifier Diode, 1 Phase, 2 Element, 15A, Silicon,
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SHINDENGEN ELECTRIC MANUFACTURING CO LTD | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Samacsys Manufacturer | Shindengen Electric Manufacturing Co., Ltd. | |
| Application | GENERAL PURPOSE | |
| Case Connection | ISOLATED | |
| Configuration | COMMON CATHODE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.05 V | |
| JESD-30 Code | S-XUFM-D3 | |
| Non-rep Pk Forward Current-Max | 300 A | |
| Number of Elements | 2 | |
| Number of Phases | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Output Current-Max | 15 A | |
| Package Body Material | UNSPECIFIED | |
| Package Shape | SQUARE | |
| Package Style | FLANGE MOUNT | |
| Qualification Status | Not Qualified | |
| Reverse Current-Max | 10 µA | |
| Surface Mount | NO | |
| Terminal Form | SOLDER LUG | |
| Terminal Position | UPPER |
Alternate Parts for D30VC60-4000
This table gives cross-reference parts and alternative options found for D30VC60-4000. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of D30VC60-4000, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SF301-B | Diodes Incorporated | Check for Price | Rectifier Diode, 1 Phase, 2 Element, 15A, Silicon, | D30VC60-4000 vs SF301-B |
D30VC60-4000 Frequently Asked Questions (FAQ)
-
The recommended PCB layout for optimal thermal performance involves placing the device on a thick copper plane (at least 2 oz) with multiple vias to dissipate heat. The copper plane should be connected to a heat sink or a metal chassis to further improve heat dissipation.
-
To ensure reliable operation in high-temperature environments, it is essential to provide adequate heat sinking and ensure good airflow around the device. Additionally, the device should be derated according to the temperature derating curve provided in the datasheet.
-
The maximum allowable voltage transient for the D30VC60-4000 is 4000V, as specified in the datasheet. However, it is recommended to limit voltage transients to 3000V or less to ensure reliable operation and prevent damage to the device.
-
Yes, the D30VC60-4000 can be used in a parallel configuration to increase current handling. However, it is essential to ensure that the devices are properly matched and that the current sharing is balanced to prevent overheating and reduce the risk of device failure.
-
The recommended storage condition for the D30VC60-4000 is in a dry, cool place with a temperature range of -20°C to 40°C and humidity below 60%. The device should be stored in its original packaging or in a similar anti-static package to prevent damage from electrostatic discharge.
