Connectors / D Type Connectors / D25S33E6UX00LF
Datasheets

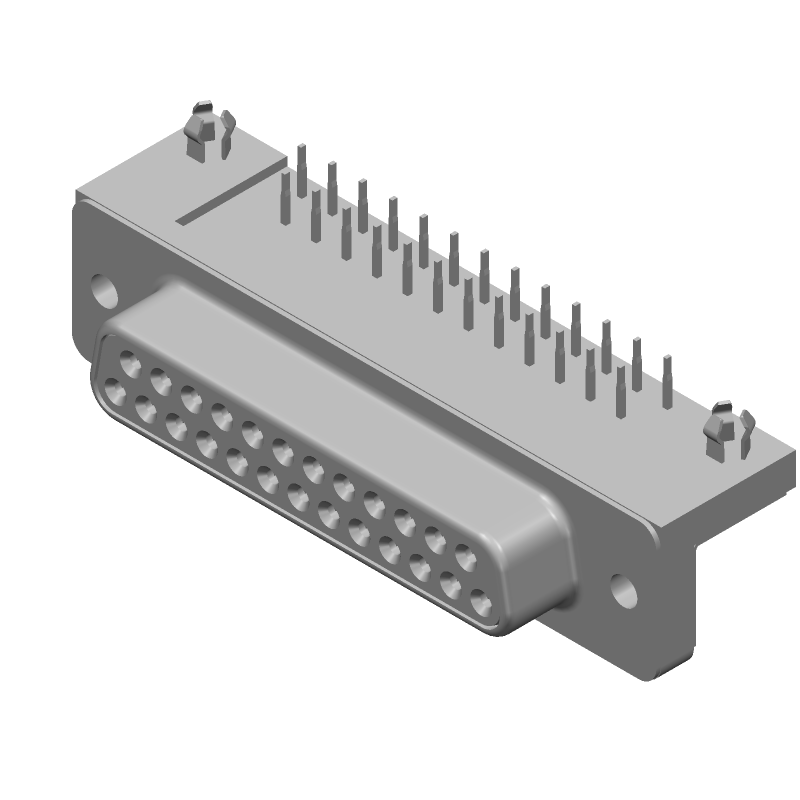

D25S33E6UX00LF by:

D-Sub Standard Board Mount Connector, Input Output Connectors, Signal 25 way Socket Right Angle Solder US standard, 500 cycles, Threaded Insert UNC 4 - 40 + Elec cont., 1.6mm PCB thickness.

Part Details for D25S33E6UX00LF by Amphenol Communications Solutions

Results Overview of D25S33E6UX00LF by Amphenol Communications Solutions

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Security and Surveillance Space Technology Audio and Video Systems Aerospace and Defense Energy and Power Systems Transportation and Logistics Medical Imaging Renewable Energy Automotive Robotics and Drones

D25S33E6UX00LF Information

D25S33E6UX00LF by Amphenol Communications Solutions is a D Type Connector.
D Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for D25S33E6UX00LF

Part # Distributor Description Stock Price Buy
DISTI # 62K4406
Newark D25S33E6Ux00Lf-Dsub R/A Stb 25 Socket Rohs Compliant: Yes |Amphenol Communications Solutions D25S33E6UX00LF RoHS: Compliant Min Qty: 240 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $2.7000
  • 250 $2.4500
  • 500 $2.3900
  • 1,000 $2.1400
$2.1400 / $2.7000 Buy Now
DISTI # D25S33E6UX00LF-ND
DigiKey CONN D-SUB RCPT 25POS R/A SOLDER Min Qty: 240 Lead time: 13 Weeks Container: Tray Temporarily Out of Stock
  • 240 $2.4189
$2.4189 Buy Now
Onlinecomponents.com   RoHS: Compliant 0
  • 20 $2.9200
  • 100 $2.3700
  • 260 $2.2600
  • 500 $2.1700
  • 1,000 $2.0800
  • 2,500 $2.0200
  • 5,000 $1.9700
  • 7,500 $1.9400
$1.9400 / $2.9200 Buy Now

Part Details for D25S33E6UX00LF

D25S33E6UX00LF Part Data Attributes

Parametric Data
D25S33E6UX00LF Amphenol Communications Solutions
Buy Now Datasheet
Compare Parts:
D25S33E6UX00LF Amphenol Communications Solutions D-Sub Standard Board Mount Connector, Input Output Connectors, Signal 25 way Socket Right Angle Solder US standard, 500 cycles, Threaded Insert UNC 4 - 40 + Elec cont., 1.6mm PCB thickness.
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer AMPHENOL COMMUNICATIONS SOLUTIONS
Package Description LEAD FREE
Pin Count 25
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.69.40.30
Samacsys Manufacturer Amphenol Communications Solutions
Additional Feature ROHS COMPLIANT
Board Mounting Option HOLE .122
Body Breadth 0.531 inch
Body Depth 0.576 inch
Body Length 2.07 inch
Body/Shell Style SOCKET
Connector Type D SUBMINIATURE CONNECTOR
Contact Finish Mating NOT SPECIFIED
Contact Finish Termination NOT APPLICABLE
Contact Gender FEMALE
Contact Material NOT SPECIFIED
Contact Pattern STAGGERED
Contact Resistance 15 mΩ
Contact Style RND PIN-SKT
DIN Conformance NO
Empty Shell NO
Filter Feature NO
IEC Conformance NO
Insulation Resistance 5000000000 Ω
Insulator Color BLACK
Insulator Material POLYESTER
MIL Conformance NO
Mating Contact Pitch 0.109 inch
Mating Contact Row Spacing 0.112 inch
Mixed Contacts NO
Mounting Option 1 #4-40
Mounting Option 2 THREADED INSERT
Mounting Style RIGHT ANGLE
Mounting Type BOARD AND PANEL
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
PCB Contact Pattern STAGGERED
PCB Contact Row Spacing 2.84 mm
Plating Thickness 30u inch
Rated Current (Signal) 5 A
Reference Standard UL
Shell Finish TIN
Shell Material STEEL
Shell Size 3/B
Terminal Length 0.125 inch
Terminal Pitch 2.76 mm
Termination Type SOLDER
Total Number of Contacts 25
UL Flammability Code 94V-0

Alternate Parts for D25S33E6UX00LF

This table gives cross-reference parts and alternative options found for D25S33E6UX00LF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of D25S33E6UX00LF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
D25S33E6UX00LF Amphenol FCi $2.5728 D Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Socket, LEAD FREE D25S33E6UX00LF vs D25S33E6UX00LF
ID25S33E6UX00 Amphenol FCi Check for Price D Subminiature Connector, 25 Contact(s), Female, Solder Terminal D25S33E6UX00LF vs ID25S33E6UX00
ID25S33E6UX00LF Amphenol FCi Check for Price D Subminiature Connector, 25 Contact(s), Female, Solder Terminal, LEAD FREE D25S33E6UX00LF vs ID25S33E6UX00LF
D25S33E6UX00 Amphenol FCi Check for Price D Subminiature Connector, 25 Contact(s), Female, Solder Terminal, Socket D25S33E6UX00LF vs D25S33E6UX00
ID25S33E4UX00LF Amphenol FCi Check for Price D Subminiature Connector, 25 Contact(s), Female, Solder Terminal, LEAD FREE D25S33E6UX00LF vs ID25S33E4UX00LF
D25S33E4UX00 Amphenol FCi Check for Price D Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Socket D25S33E6UX00LF vs D25S33E4UX00
