D25P13A4GX00LF Information
D25P13A4GX00LF by Amphenol Communications Solutions is a D Type Connector.
D Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for D25P13A4GX00LF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
62K4337
|
Newark | D-Sub Connector, R/A, Plug, 25Pos, Th, D Sub Connector Type:Standard, Gender:Plug, Product Range:Fci Delta D Series, No. Of Contacts:25Contacts, D Sub Shell Size:Db, Contact Termination Type:Through Hole, Contact Material:Brass Rohs Compliant: Yes |Amphenol Communications Solutions D25P13A4GX00LF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 220 |
|
$1.4100 | Buy Now |
|
|
Onlinecomponents.com | Conn D-Subminiature PIN 25 POS 2.76mm Solder RA Thru-Hole 25 Terminal 1 Port RoHS: Compliant |
412 In Stock |
|
$2.1100 / $3.0900 | Buy Now |
|
DISTI #
D25P13A4GX00LF
|
IBS Electronics | D SUB CONNECTOR DB25 STANDARD PLUG FCI DELTA D 25 CONTACTS DB SOLDER Min Qty: 240 Package Multiple: 1 | 0 |
|
$2.4700 / $2.5350 | Buy Now |
|
|
Master Electronics | Conn D-Subminiature PIN 25 POS 2.76mm Solder RA Thru-Hole 25 Terminal 1 Port RoHS: Compliant |
412 In Stock |
|
$2.1100 / $3.0900 | Buy Now |
Part Details for D25P13A4GX00LF

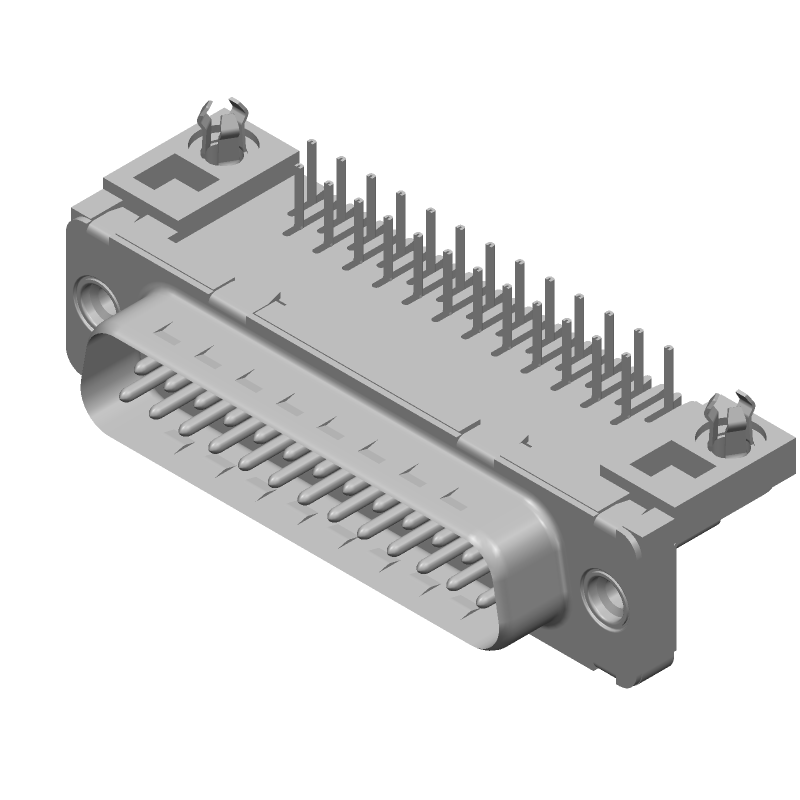

D25P13A4GX00LF CAD Models
D25P13A4GX00LF Part Data Attributes
|
|
D25P13A4GX00LF
Amphenol Communications Solutions
Buy Now
Datasheet
|
Compare Parts:
D25P13A4GX00LF
Amphenol Communications Solutions
D-Sub Standard Board Mount Connector, Input Output Connectors, Signal 25 way Pin Right Angle Solder Europe standard, 200 cycles, Harpoons + Threaded Insert UNC 4 - 40 + Elec cont., 1.6mm PCB thickness.
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | AMPHENOL COMMUNICATIONS SOLUTIONS | |
| Package Description | LEAD FREE | |
| Pin Count | 25 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.30 | |
| Samacsys Manufacturer | Amphenol Communications Solutions | |
| Board Mounting Option | SPLIT BOARD LOCK | |
| Body Breadth | 0.531 inch | |
| Body Depth | 0.577 inch | |
| Body Length | 2.07 inch | |
| Body/Shell Style | RECEPTACLE | |
| Connector Type | D SUBMINIATURE CONNECTOR | |
| Contact Finish Mating | NOT SPECIFIED | |
| Contact Gender | MALE | |
| Contact Material | NOT SPECIFIED | |
| Contact Pattern | STAGGERED | |
| Contact Style | RND PIN-SKT | |
| DIN Conformance | NO | |
| Empty Shell | NO | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insertion Force-Max | 4.8928 N | |
| Insulation Resistance | 5000000000 Ω | |
| Insulator Color | BLACK | |
| Insulator Material | POLYESTER | |
| MIL Conformance | NO | |
| Mating Contact Pitch | 0.109 inch | |
| Mating Contact Row Spacing | 0.112 inch | |
| Mixed Contacts | NO | |
| Mounting Option 1 | #4-40 | |
| Mounting Option 2 | THREADED INSERT | |
| Mounting Style | RIGHT ANGLE | |
| Mounting Type | BOARD AND PANEL | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 2 | |
| Number of Rows Loaded | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | STAGGERED | |
| PCB Contact Row Spacing | 2.54 mm | |
| Rated Current (Signal) | 5 A | |
| Reference Standard | UL | |
| Shell Finish | TIN/ZINC CHROMIUM | |
| Shell Material | STEEL | |
| Shell Size | 3/B | |
| Terminal Length | 0.134 inch | |
| Terminal Pitch | 2.76 mm | |
| Termination Type | SOLDER | |
| Total Number of Contacts | 25 | |
| UL Flammability Code | 94V-0 |
Alternate Parts for D25P13A4GX00LF
This table gives cross-reference parts and alternative options found for D25P13A4GX00LF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of D25P13A4GX00LF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| D25P13A8GX00LF | Amphenol FCi | Check for Price | D Subminiature Connector, 25 Contact(s), Male, Solder Terminal, LEAD FREE | D25P13A4GX00LF vs D25P13A8GX00LF |
| D25P13A8GX00 | Amphenol Communications Solutions | Check for Price | D Subminiature Connector, 25 Contact(s), Male, Solder Terminal, | D25P13A4GX00LF vs D25P13A8GX00 |
D25P13A4GX00LF Frequently Asked Questions (FAQ)
-
The recommended torque for mating and unmating the D25P13A4GX00LF connector is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow the recommended torque to ensure proper mating and prevent damage to the connector.
-
Yes, the D25P13A4GX00LF connector is designed to withstand high-vibration environments. It has a ruggedized design and meets the requirements of IEC 61373 Cat. 2, which ensures reliable performance in applications with high vibration and shock.
-
The D25P13A4GX00LF connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand humid environments. However, it's essential to follow the recommended storage and operating conditions to ensure the connector's reliability and performance.
-
The D25P13A4GX00LF connector is rated for a minimum of 500 mating cycles. However, the actual number of mating cycles may vary depending on the application, environment, and usage. It's recommended to follow the manufacturer's guidelines and perform regular maintenance to ensure the connector's reliability.
-
The D25P13A4GX00LF connector is designed to be compatible with other connectors that meet the same industry standards (e.g., IEC 61076-2-101). However, it's essential to verify the compatibility of the connector with other manufacturers' products before use to ensure reliable performance and prevent damage.
