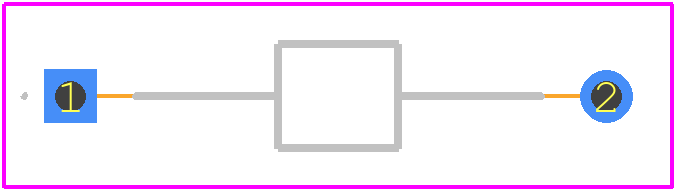

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for D1NL40U-5060 by Shindengen Electronic Manufacturing Co Ltd
Results Overview of D1NL40U-5060 by Shindengen Electronic Manufacturing Co Ltd
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Energy and Power Systems
D1NL40U-5060 Information
D1NL40U-5060 by Shindengen Electronic Manufacturing Co Ltd is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| MGN1D050603MC-R7 | Murata Manufacturing Co Ltd | DC-DC 1W SM 5-6/-3V GAN |
Price & Stock for D1NL40U-5060
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
627-D1NL40U-5060
|
Mouser Electronics | Rectifiers Fast Recovery Diode Axial RoHS: Compliant | 0 |
|
$0.1900 / $0.7300 | Order Now |
Part Details for D1NL40U-5060
D1NL40U-5060 CAD Models
D1NL40U-5060 Part Data Attributes
|
|
D1NL40U-5060
Shindengen Electronic Manufacturing Co Ltd
Buy Now
Datasheet
|
Compare Parts:
D1NL40U-5060
Shindengen Electronic Manufacturing Co Ltd
Rectifier Diode,
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SHINDENGEN ELECTRIC MANUFACTURING CO LTD | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Samacsys Manufacturer | Shindengen Electric Manufacturing Co., Ltd. | |
| Additional Feature | LOW NOISE | |
| Application | SUPER FAST RECOVERY | |
| Case Connection | ISOLATED | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.25 V | |
| JESD-30 Code | O-XALF-W2 | |
| Non-rep Pk Forward Current-Max | 50 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Output Current-Max | 0.9 A | |
| Package Body Material | UNSPECIFIED | |
| Package Shape | ROUND | |
| Package Style | LONG FORM | |
| Rep Pk Reverse Voltage-Max | 400 V | |
| Reverse Current-Max | 10 µA | |
| Reverse Recovery Time-Max | 0.025 µs | |
| Reverse Test Voltage | 400 V | |
| Surface Mount | NO | |
| Terminal Form | WIRE | |
| Terminal Position | AXIAL |
D1NL40U-5060 Frequently Asked Questions (FAQ)
-
The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 10 seconds. It's essential to follow the manufacturer's soldering guidelines to prevent damage to the component.
-
Yes, the D1NL40U-5060 is designed for high-frequency applications, with a switching speed of 100 ns and a low capacitance of 15 pF. It's suitable for use in high-frequency circuits, such as switching power supplies and DC-DC converters.
-
The maximum allowable voltage derating for the D1NL40U-5060 is 80% of the rated voltage. This means that if the rated voltage is 40 V, the maximum allowable voltage derating would be 32 V.
-
Yes, the D1NL40U-5060 can be used in parallel to increase current handling, but it's essential to ensure that the diodes are matched and connected in a way that prevents current imbalance. Additionally, the user should consider the thermal management and PCB layout to prevent overheating.
-
Yes, the D1NL40U-5060 diode is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly and sustainable designs.
