Connectors / D Type Connectors / D15S33E4GV00LF
Datasheets
D15S33E4GV00LF by:

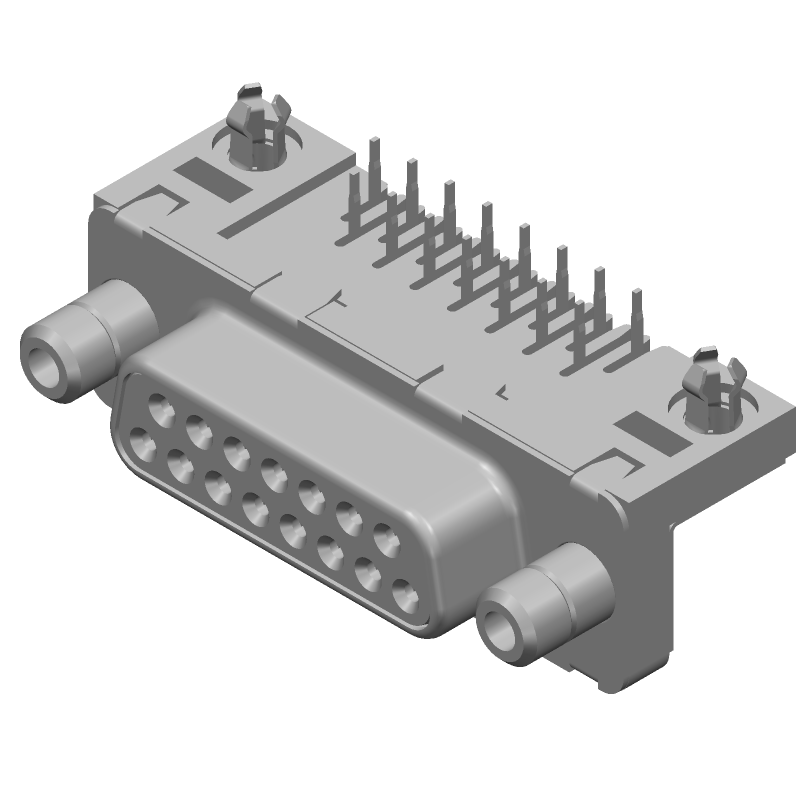

D-Sub Standard Board Mount, Input Output Connector, Signal 15 way Socket Right Angle Solder US standard, 200 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont., 1.6mm PCB thickness

Part Details for D15S33E4GV00LF by Amphenol Communications Solutions

Results Overview of D15S33E4GV00LF by Amphenol Communications Solutions

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Computing and Data Storage

D15S33E4GV00LF Information

D15S33E4GV00LF by Amphenol Communications Solutions is a D Type Connector.
D Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
D15S33E4GV00LF Amphenol Communications Solutions D-Sub Standard Board Mount, Input Output Connector, Signal 15 way Socket Right Angle Solder US standard, 200 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont., 1.6mm PCB thickness
LD15S33E4GV00LF Amphenol Communications Solutions D-Subminiature Economy Range, Input Output Connectors, Signal 15 way Socket Right Angle, Solder US standard, 50 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness

Price & Stock for D15S33E4GV00LF

Part # Distributor Description Stock Price Buy
DISTI # 68K3483
Newark Connector, D Sub, Receptacle, 15 Position, D Sub Connector Type:Standard, Gender:Receptacle, Product Range:Fci Delta D Series, No. Of Contacts:15Contacts, D Sub Shell Size:Da, Contact Termination Type:Solder, Connector Type:D Sub Rohs Compliant: Yes |Amphenol Communications Solutions D15S33E4GV00LF RoHS: Compliant Min Qty: 300 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 250 $2.0100
  • 500 $1.8700
  • 1,000 $1.6400
$1.6400 / $2.0100 Buy Now
Future Electronics 2 Row 15 Position Female Socket D-Sub Receptacle Connector RoHS: Compliant pbFree: Yes Min Qty: 25 Package Multiple: 25 Lead time: 19 Weeks Container: Tray 50
Tray
  • 25 $1.3500
  • 100 $1.3300
  • 250 $1.3100
  • 625 $1.3000
  • 1,000 $1.2700
$1.2700 / $1.3500 Buy Now
Onlinecomponents.com D Sub Connector - DB15 - Standard - Receptacle - FCI Delta D Series - 15 Contacts - DA - Solder - 5A - 300V - Black. RoHS: Compliant 110 In Stock
  • 25 $2.2000
  • 100 $1.7900
  • 250 $1.7100
  • 500 $1.6600
  • 1,000 $1.5700
  • 2,500 $1.5300
  • 5,000 $1.4900
  • 7,500 $1.4700
$1.4700 / $2.2000 Buy Now
Future Electronics 2 Row 15 Position Female Socket D-Sub Receptacle Connector Min Qty: 25 Package Multiple: 25 50
null
  • 25 $1.3500
  • 100 $1.3300
  • 250 $1.3100
  • 625 $1.3000
  • 1,000 $1.2700
$1.2700 / $1.3500 Buy Now
Master Electronics D Sub Connector - DB15 - Standard - Receptacle - FCI Delta D Series - 15 Contacts - DA - Solder - 5A - 300V - Black. RoHS: Compliant 110 In Stock
  • 25 $2.2000
  • 100 $1.7900
  • 250 $1.7100
  • 500 $1.6600
  • 1,000 $1.5700
  • 2,500 $1.5300
  • 5,000 $1.4900
  • 7,500 $1.4700
$1.4700 / $2.2000 Buy Now

Part Details for D15S33E4GV00LF

D15S33E4GV00LF Part Data Attributes

Parametric Data
D15S33E4GV00LF Amphenol Communications Solutions
Buy Now Datasheet
Compare Parts:
D15S33E4GV00LF Amphenol Communications Solutions D-Sub Standard Board Mount, Input Output Connector, Signal 15 way Socket Right Angle Solder US standard, 200 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont., 1.6mm PCB thickness
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer AMPHENOL COMMUNICATIONS SOLUTIONS
Package Description LEAD FREE
Pin Count 15
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8536.69.40.30
Samacsys Manufacturer Amphenol Communications Solutions
Additional Feature ROHS COMPLIANT
Body Breadth 0.495 inch
Body Depth 0.496 inch
Body Length 1.541 inch
Body/Shell Style SOCKET
Connector Type D SUBMINIATURE CONNECTOR
Contact Finish Mating NOT SPECIFIED
Contact Finish Termination Matte Tin (Sn) - with Nickel (Ni) barrier
Contact Gender FEMALE
Contact Material NOT SPECIFIED
Contact Pattern STAGGERED
Contact Resistance 10 mΩ
Contact Style RND PIN-SKT
DIN Conformance NO
Dielectric Withstanding Voltage 1400VAC V
Empty Shell NO
Filter Feature NO
IEC Conformance NO
Insertion Force-Max 4.8928 N
Insulation Resistance 5000000000 Ω
Insulator Color BLACK
Insulator Material POLYETHYLENE
JESD-609 Code e3
MIL Conformance NO
Mating Contact Pitch 0.108 inch
Mixed Contacts NO
Mounting Option 1 #4-40
Mounting Option 2 LOCKING
Mounting Style RIGHT ANGLE
Mounting Type BOARD
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
PCB Contact Pattern STAGGERED
PCB Contact Row Spacing 2.8448 mm
Plating Thickness FLASH inch
Rated Current (Signal) 5 A
Reference Standard UL
Shell Finish TIN
Shell Material STEEL
Shell Size 2/A
Terminal Length 0.125 inch
Terminal Pitch 2.7432 mm
Termination Type SOLDER
Total Number of Contacts 15
Withdrawl Force-Min .30024 N

D15S33E4GV00LF Related Parts

D15S33E4GV00LF Frequently Asked Questions (FAQ)

  • The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the screw threads of the D15S33E4GV00LF connector.

  • Yes, the D15S33E4GV00LF connector is suitable for outdoor use, as it has a ruggedized design and is rated for IP67 ingress protection.

  • Yes, the D15S33E4GV00LF connector is designed to withstand high-vibration environments, making it suitable for use in applications such as aerospace, defense, and industrial automation.

  • The operating temperature range of the D15S33E4GV00LF connector is -40°C to 125°C (-40°F to 257°F).

  • Yes, the D15S33E4GV00LF connector is designed to support high-speed data transmission rates up to 10 Gbps.
