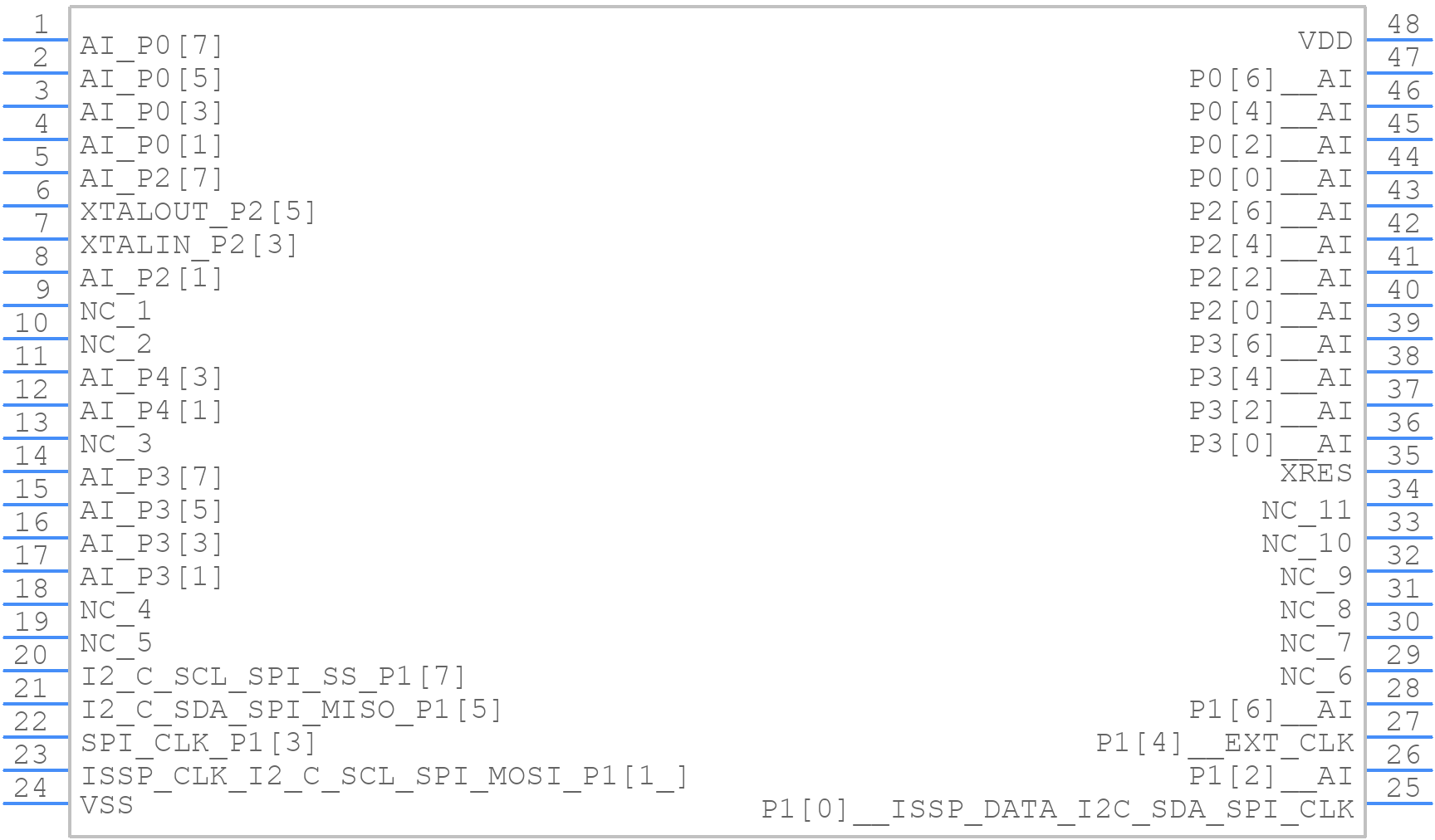

Part Symbol
-

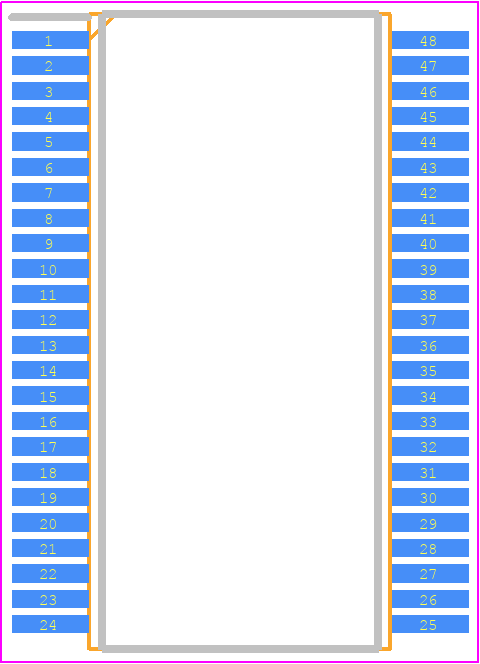

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CY8C20536A-24PVXI by Infineon Technologies AG
Results Overview of CY8C20536A-24PVXI by Infineon Technologies AG
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Smart Cities
Healthcare
Telecommunications
CY8C20536A-24PVXI Information
CY8C20536A-24PVXI by Infineon Technologies AG is a Multifunction Peripheral.
Multifunction Peripherals are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for CY8C20536A-24PVXI
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
CY8C20536A-24PVXI-ND
|
DigiKey | IC MCU 8K FLASH 1K SRAM 48SSOP Min Qty: 1 Lead time: 10 Weeks Container: Tube |
88 In Stock |
|
$3.2296 / $5.7500 | Buy Now |
|
DISTI #
727-CY8C20536A24PVXI
|
Mouser Electronics | 8-bit Microcontrollers - MCU 1.71V-5.5V CapSense RoHS: Compliant | 507 |
|
$2.9800 / $4.4800 | Buy Now |
|
DISTI #
66926625
|
Verical | MCU 8-bit M8C CISC 8KB Flash 1.8V/2.5V/3.3V/5V 48-Pin SSOP Tube RoHS: Compliant Min Qty: 600 Package Multiple: 600 Date Code: 2250 | Americas - 4800 |
|
$4.0795 | Buy Now |
|
DISTI #
86315337
|
Verical | MCU 8-bit M8C CISC 8KB Flash 1.8V/2.5V/3.3V/5V 48-Pin SSOP Tube RoHS: Compliant Min Qty: 96 Package Multiple: 1 Date Code: 2201 | Americas - 715 |
|
$3.9250 | Buy Now |
|
DISTI #
86315522
|
Verical | MCU 8-bit M8C CISC 8KB Flash 1.8V/2.5V/3.3V/5V 48-Pin SSOP Tube RoHS: Compliant Min Qty: 96 Package Multiple: 1 Date Code: 2101 | Americas - 607 |
|
$3.9250 | Buy Now |
|
DISTI #
85981294
|
Verical | MCU 8-bit M8C CISC 8KB Flash 1.8V/2.5V/3.3V/5V 48-Pin SSOP Tube RoHS: Compliant Min Qty: 96 Package Multiple: 1 Date Code: 2301 | Americas - 198 |
|
$3.9250 | Buy Now |
|
|
Rochester Electronics | CY8C20536 - Multifunction Peripheral PDSO48 RoHS: Compliant pbFree: No Status: Active Min Qty: 1 | 1520 |
|
$2.5100 / $3.1400 | Buy Now |
Part Details for CY8C20536A-24PVXI

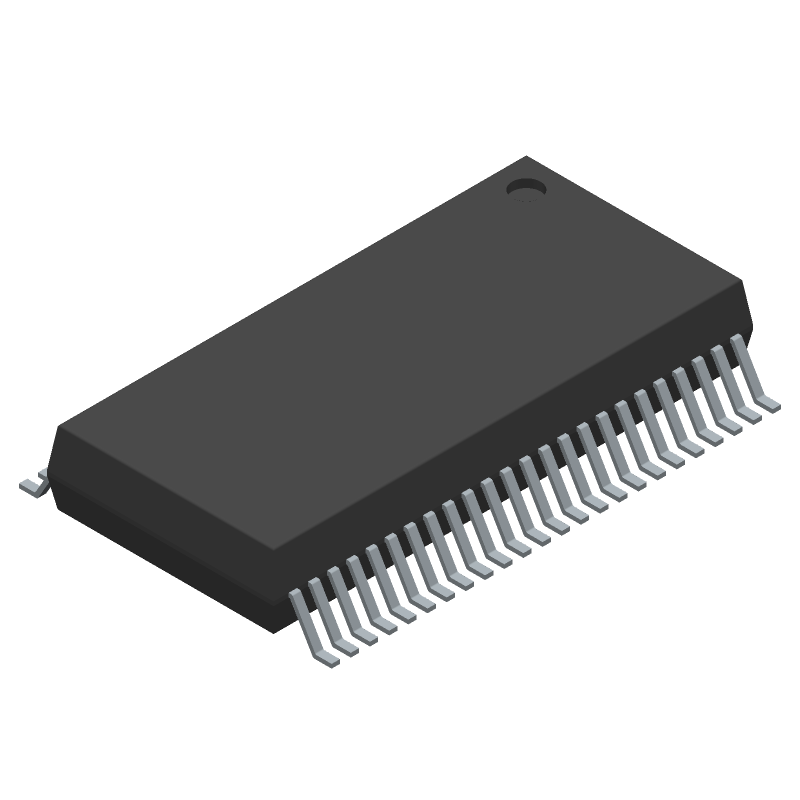

CY8C20536A-24PVXI CAD Models
