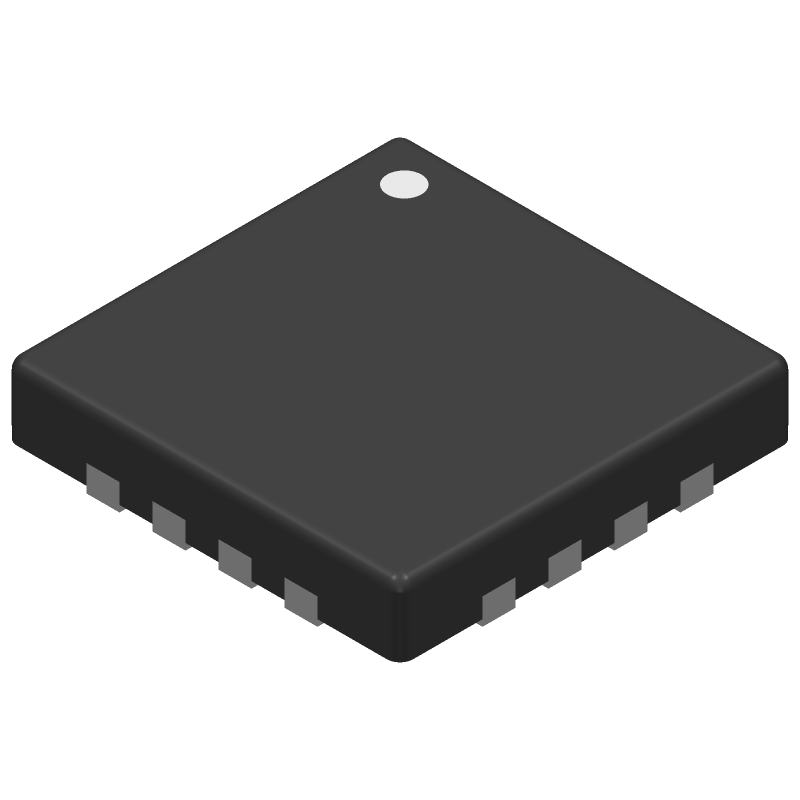

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CY8C20234-12LKXI by Infineon Technologies AG
Results Overview of CY8C20234-12LKXI by Infineon Technologies AG
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Environmental Monitoring
Internet of Things (IoT)
Industrial Automation
Smart Cities
Agriculture Technology
Renewable Energy
Robotics and Drones
CY8C20234-12LKXI Information
CY8C20234-12LKXI by Infineon Technologies AG is a Multifunction Peripheral.
Multifunction Peripherals are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for CY8C20234-12LKXI
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2015-CY8C20234-12LKXI-ND
|
DigiKey | IC MCU 8BIT 8KB FLASH 16QFN Min Qty: 1 Lead time: 10 Weeks Container: Tray |
2448 In Stock |
|
$0.6900 | Buy Now |
|
DISTI #
CY8C20234-12LKXI-ND
|
DigiKey | IC MCU 8BIT 8KB FLASH 16QFN Min Qty: 1 Lead time: 10 Weeks Container: Tray | Temporarily Out of Stock |
|
$2.0985 | Buy Now |
|
DISTI #
CY8C20234-12LKXI
|
Avnet Americas | MCU 8-Bit PSoC RISC 8KB Flash 2.5V/3.3V/5V 16-Pin QFN EP - Trays (Alt: CY8C20234-12LKXI) RoHS: Compliant Min Qty: 400 Package Multiple: 1 Lead time: 0 Weeks, 2 Days Container: Tray | 444 Partner Stock |
|
$1.5537 / $1.6538 | Buy Now |
|
DISTI #
CY8C20234-12LKXI
|
Avnet Americas | MCU 8-Bit PSoC RISC 8KB Flash 2.5V/3.3V/5V 16-Pin QFN EP - Trays (Alt: CY8C20234-12LKXI) RoHS: Compliant Min Qty: 980 Package Multiple: 980 Lead time: 10 Weeks, 0 Days Container: Tray | 0 |
|
$1.6433 / $1.7625 | Buy Now |
|
DISTI #
727-CY8C20234-12LKXI
|
Mouser Electronics | 8-bit Microcontrollers - MCU 13 I/O 8K Flash 512B RAM RoHS: Compliant | 825 |
|
$2.0000 / $2.2000 | Buy Now |
|
|
Future Electronics | RoHS: Compliant pbFree: Yes Min Qty: 980 Package Multiple: 980 Lead time: 10 Weeks Container: Tray | 0Tray |
|
$1.7600 | Buy Now |
|
DISTI #
69752270
|
Verical | MCU 8-bit M8C 8KB Flash 2.5V/3.3V/5V 16-Pin QFN Tray RoHS: Compliant Min Qty: 980 Package Multiple: 980 Date Code: 2331 | Americas - 3920 |
|
$2.5432 | Buy Now |
|
DISTI #
85983538
|
Verical | MCU 8-bit M8C 8KB Flash 2.5V/3.3V/5V 16-Pin QFN Tray RoHS: Compliant Min Qty: 162 Package Multiple: 1 Date Code: 1901 | Americas - 1795 |
|
$1.9625 / $2.3250 | Buy Now |
|
DISTI #
85976739
|
Verical | MCU 8-bit M8C 8KB Flash 2.5V/3.3V/5V 16-Pin QFN Tray RoHS: Compliant Min Qty: 162 Package Multiple: 1 Date Code: 1801 | Americas - 1294 |
|
$1.9625 / $2.3250 | Buy Now |
|
DISTI #
85976236
|
Verical | MCU 8-bit M8C 8KB Flash 2.5V/3.3V/5V 16-Pin QFN Tray RoHS: Compliant Min Qty: 162 Package Multiple: 1 Date Code: 1701 | Americas - 444 |
|
$1.9625 / $2.3250 | Buy Now |
Part Details for CY8C20234-12LKXI
CY8C20234-12LKXI CAD Models
CY8C20234-12LKXI Part Data Attributes
|
|
CY8C20234-12LKXI
Infineon Technologies AG
Buy Now
Datasheet
|
Compare Parts:
CY8C20234-12LKXI
Infineon Technologies AG
Multifunction Peripheral, CMOS, QFN-16
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | INFINEON TECHNOLOGIES AG | |
| Package Description | QFN-16 | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 2 Days | |
| Samacsys Manufacturer | Infineon | |
| Additional Feature | IT ALSO OPERATES MINIMUM SUPPLY 2.4 V AT 750 KHZ | |
| Address Bus Width | ||
| Bit Size | 8 | |
| Boundary Scan | NO | |
| Bus Compatibility | USB | |
| CPU Family | M8C | |
| Clock Frequency-Max | 12 MHz | |
| External Data Bus Width | ||
| JESD-30 Code | S-XQCC-N16 | |
| JESD-609 Code | e4 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of I/O Lines | 13 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | UNSPECIFIED | |
| Package Code | VQCCN | |
| Package Equivalence Code | LCC16,.12SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 512 | |
| RAM (words) | 512 | |
| ROM (words) | 8192 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 0.6 mm | |
| Speed | 12 MHz | |
| Supply Current-Max | 2.5 mA | |
| Supply Voltage-Max | 5.25 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 4.75 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 20 | |
| Width | 3 mm |
Resources and Additional Insights for CY8C20234-12LKXI
Reference Designs related to CY8C20234-12LKXI
-
DTMF Detector
This element describes the implementation of a dual-tone multiple frequency (DTMF) detector.
-
Multi-Channel Fan Speed Control System
This element describes the implementation of a multi-channel fan speed control system. The proposed implementation shows how to use low-cost, two-wire fans in different temperature control systems.
- Long Trace Design with CY8C20xx7/S
- Water Tolerance Design
-
Universal Capsense Controller Basic Kit 1
This element captures the Universal CapSense Controller Basic Kit 1. Schematics and Design Files for this kit are linked from this element.
