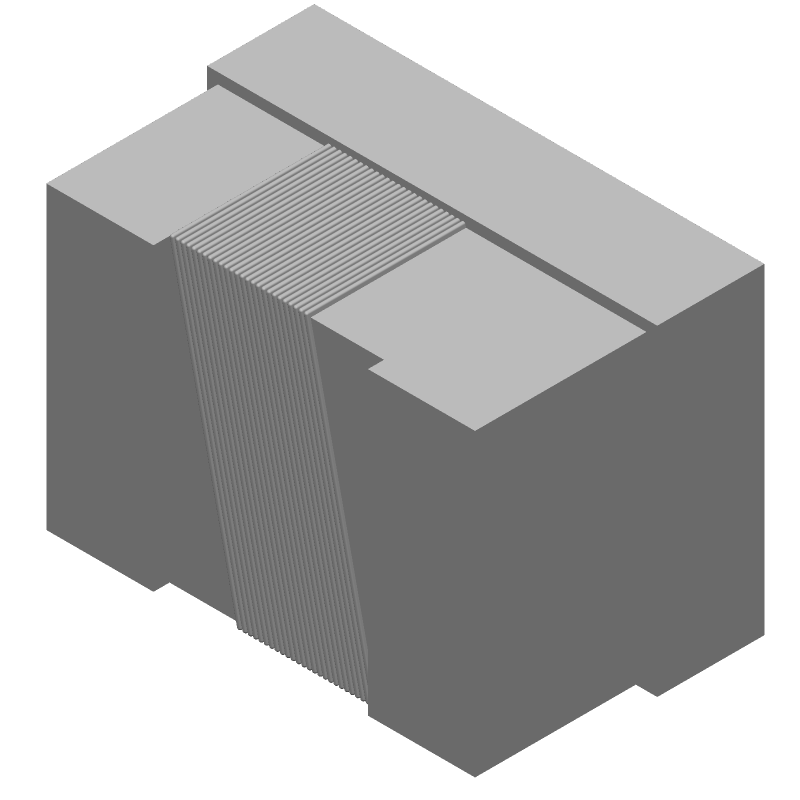

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CW201212-12NJ by Bourns Inc
Results Overview of CW201212-12NJ by Bourns Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
CW201212-12NJ Information
CW201212-12NJ by Bourns Inc is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for CW201212-12NJ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60H7788
|
Newark | Inductor, alumina,12Nh,5+% Tol,5-% Tol,0806-Case |Bourns CW201212-12NJ RoHS: Not Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1100 / $0.1750 | Buy Now |
|
DISTI #
118-CW201212-12NJCT-ND
|
DigiKey | FIXED IND 12NH 600MA 80 MOHM SMD Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2432 In Stock |
|
$0.1010 / $0.2500 | Buy Now |
|
DISTI #
CW201212-12NJ
|
Avnet Americas | Wirewound Inductor, 12 nH, 150 Milliohm, ? 5%, 4 GHz, 600 mA, 0805 [2012 Metric] - Tape and Reel (Alt: CW201212-12NJ) RoHS: Compliant Min Qty: 4000 Package Multiple: 2000 Lead time: 16 Weeks, 0 Days Container: Reel | 0 |
|
$0.0866 / $0.0982 | Buy Now |
|
DISTI #
652-CW201212-12NJ
|
Mouser Electronics | RF Inductors - SMD 12nH 5% HIGH Q RoHS: Compliant | 3482 |
|
$0.1140 / $0.2500 | Buy Now |
|
DISTI #
V72:2272_06253898
|
Arrow Electronics | Inductor RF Wirewound 0.012uH 5% 250MHz 50Q-Factor Ceramic 0.6A 0.15Ohm DCR 0805 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks Date Code: 1703 Container: Cut Strips | Americas - 10 |
|
$0.0040 / $0.0965 | Buy Now |
|
|
Onlinecomponents.com | Inductor RF Wirewound 0.012uH 5% 250MHz 60Q-Factor Ceramic 0.6A 0.08Ohm DCR 0805 T/R RoHS: Compliant | 0 |
|
$0.0998 / $0.1217 | Buy Now |
|
DISTI #
CW201212-12NJ
|
Avnet Abacus | Wirewound Inductor 12 nH 150 Milliohm 5 4 GHz 600 mA 0805 2012 Metric - Tape and Reel (Alt: CW201212-12NJ) RoHS: Compliant Min Qty: 4000 Package Multiple: 2000 Lead time: 17 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now | |
|
|
Master Electronics | Inductor RF Wirewound 0.012uH 5% 250MHz 60Q-Factor Ceramic 0.6A 0.08Ohm DCR 0805 T/R RoHS: Compliant | 0 |
|
$0.0998 / $0.1217 | Buy Now |
Part Details for CW201212-12NJ
CW201212-12NJ CAD Models
CW201212-12NJ Part Data Attributes
|
|
CW201212-12NJ
Bourns Inc
Buy Now
Datasheet
|
Compare Parts:
CW201212-12NJ
Bourns Inc
General Purpose Inductor, 0.012uH, 5%, 1 Element, Ceramic-Core, SMD, 0805, CHIP, 0805, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | BOURNS INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Factory Lead Time | 16 Weeks | |
| Samacsys Manufacturer | Bourns | |
| Case/Size Code | 0805 | |
| Construction | Rectangular | |
| Core Material | CERAMIC | |
| DC Resistance | 0.15 Ω | |
| Inductance-Nom (L) | 0.012 µH | |
| Inductor Application | RF INDUCTOR | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| JESD-609 Code | e4 | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 1.2 mm | |
| Package Length | 2 mm | |
| Package Style | SMT | |
| Package Width | 1.25 mm | |
| Packing Method | TR, Embossed, 7 Inch | |
| Quality Factor-Min (at L-nom) | 50 | |
| Rated Current-Max | 0.6 A | |
| Self Resonance Frequency | 4000 MHz | |
| Shape/Size Description | RECTANGULAR PACKAGE | |
| Shielded | NO | |
| Special Feature | Q IS MEASURED AT 500MHZ | |
| Surface Mount | YES | |
| Terminal Finish | Gold (Au) - with Nickel (Ni) barrier | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | ONE SURFACE | |
| Test Frequency | 250 MHz | |
| Tolerance | 5% |
CW201212-12NJ Frequently Asked Questions (FAQ)
-
Bourns provides a recommended PCB layout and land pattern in their application note AN204, which can be found on their website. It's essential to follow these guidelines to ensure proper soldering and to minimize thermal resistance.
-
To prevent damage, handle the CW201212-12NJ by the body, avoiding touching the leads or the chip. Use anti-static wrist straps, mats, or packaging to prevent electrostatic discharge (ESD) damage. Avoid bending or flexing the leads, and use a pick-and-place machine or a vacuum pickup tool to handle the component.
-
Although the datasheet specifies a maximum voltage rating of 12V, it's essential to consider the derating curve provided in the datasheet. The maximum allowable voltage may be lower depending on the operating temperature and other environmental factors.
-
The CW201212-12NJ is rated for operation up to 150°C. However, it's crucial to consider the derating curve and the maximum allowable voltage at higher temperatures. Additionally, ensure that the component is properly soldered and the PCB is designed to handle the thermal stresses.
-
To determine the correct current rating, consider the maximum current required by your application, the operating temperature, and the thermal resistance of the component. Use the thermal derating curve and the current rating formula provided in the datasheet to calculate the maximum allowable current.
