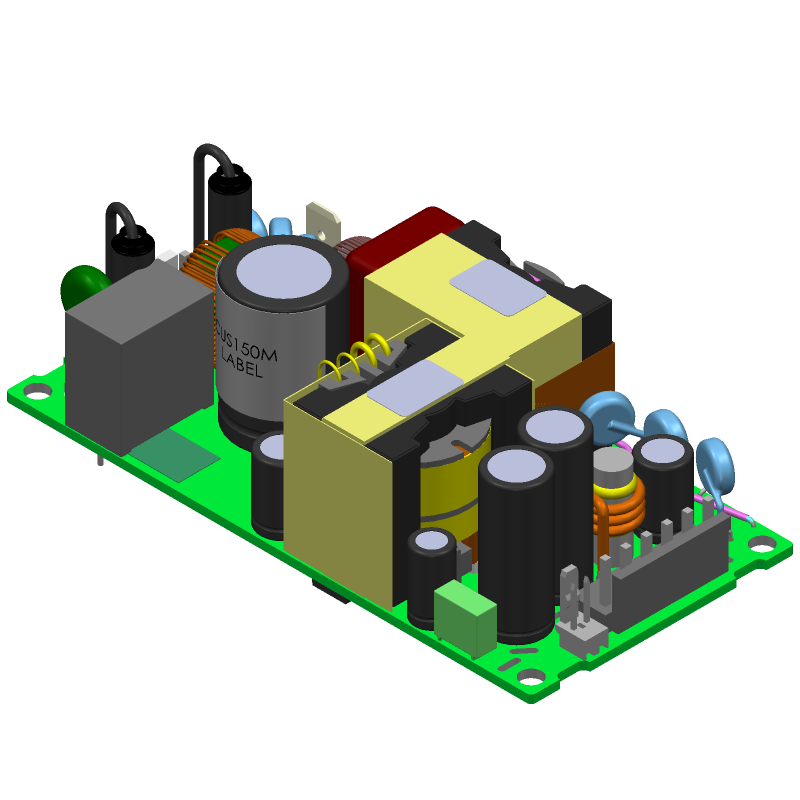

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CUS150M-12 by TDK-Lambda Corporation
Results Overview of CUS150M-12 by TDK-Lambda Corporation
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
CUS150M-12 Information
CUS150M-12 by TDK-Lambda Corporation is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for CUS150M-12
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
37AJ8918
|
Newark | Power Supply, Ac-Dc, 12V, 10A Rohs Compliant: Yes |Tdk-Lambda CUS150M-12 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$67.5700 / $69.7900 | Buy Now |
|
DISTI #
285-CUS150M-12-ND
|
DigiKey | AC/DC CONVERTER 12V 120W Min Qty: 1 Lead time: 23 Weeks Container: Box | Temporarily Out of Stock |
|
$67.5704 / $69.7900 | Buy Now |
|
DISTI #
967-CUS150M12
|
Mouser Electronics | Switching Power Supplies 150W 12V 12.5A Medical RoHS: Compliant | 0 |
|
$67.5700 / $69.7800 | Order Now |
|
DISTI #
71179674
|
RS | Power Supply, AC-DC, Medical, 150W, 12V@12.5A, 115-230V In Min Qty: 1 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk | 0 |
|
$70.4900 | RFQ |
|
|
Onlinecomponents.com | AC-DC Power Supply - 150W - 12VDC - Input: 85-264VAC - JST Connector RoHS: Compliant |
11 In Stock |
|
$65.5900 / $69.4400 | Buy Now |
|
DISTI #
CUS150M-12
|
TME | Power supply: switching, open, 120W, 85÷265VAC, OUT: 1, 12VDC, 10A Min Qty: 1 | 0 |
|
$73.7900 / $78.7300 | RFQ |
|
DISTI #
000000000006390323
|
Sager | Switching Power Supplies 150W 12V 12.5A Medical Min Qty: 1 | 0 |
|
$56.0900 / $69.7900 | Buy Now |
|
|
Master Electronics | AC-DC Power Supply - 150W - 12VDC - Input: 85-264VAC - JST Connector RoHS: Compliant |
11 In Stock |
|
$65.5900 / $69.4400 | Buy Now |
|
|
Neutron USA | Switching Power Supplies 150W 12V 12.5A Medical | 50 |
|
$172.7400 | Buy Now |
Part Details for CUS150M-12
CUS150M-12 CAD Models
CUS150M-12 Part Data Attributes
|
|
CUS150M-12
TDK-Lambda Corporation
Buy Now
Datasheet
|
Compare Parts:
CUS150M-12
TDK-Lambda Corporation
AC-DC Regulated Power Supply Module,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Transferred | |
| Ihs Manufacturer | TDK-LAMBDA CORP | |
| Package Description | Module-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | TDK Lambda | |
| Analog IC - Other Type | AC-DC REGULATED POWER SUPPLY MODULE | |
| Input Voltage-Max | 264 V | |
| Input Voltage-Min | 85 V | |
| Input Voltage-Nom | 100 V | |
| JESD-30 Code | R-XXMA-X8 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 10 °C | |
| Operating Temperature-Min | -20 °C | |
| Output Voltage-Nom | 12 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | XMA | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Temperature Grade | OTHER | |
| Terminal Form | UNSPECIFIED | |
| Terminal Position | UNSPECIFIED | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Total Power Output-Max | 120 W | |
| Trim/Adjustable Output | NO |
CUS150M-12 Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the CUS150M-12 is -20°C to +80°C, with a derating of 2.5% per °C above 50°C.
-
Yes, the CUS150M-12 is designed to withstand high-vibration environments, with a vibration test specification of 10-500Hz, 2G peak acceleration.
-
The recommended input fuse rating for the CUS150M-12 is 10A slow-blow type, but this may vary depending on the specific application and system requirements.
-
Yes, the CUS150M-12 can be paralleled for higher power output, but it requires a special parallel operation circuit and careful consideration of the system design to ensure stable operation.
-
The MTBF rating for the CUS150M-12 is approximately 550,000 hours at 25°C, calculated according to MIL-HDBK-217F.
