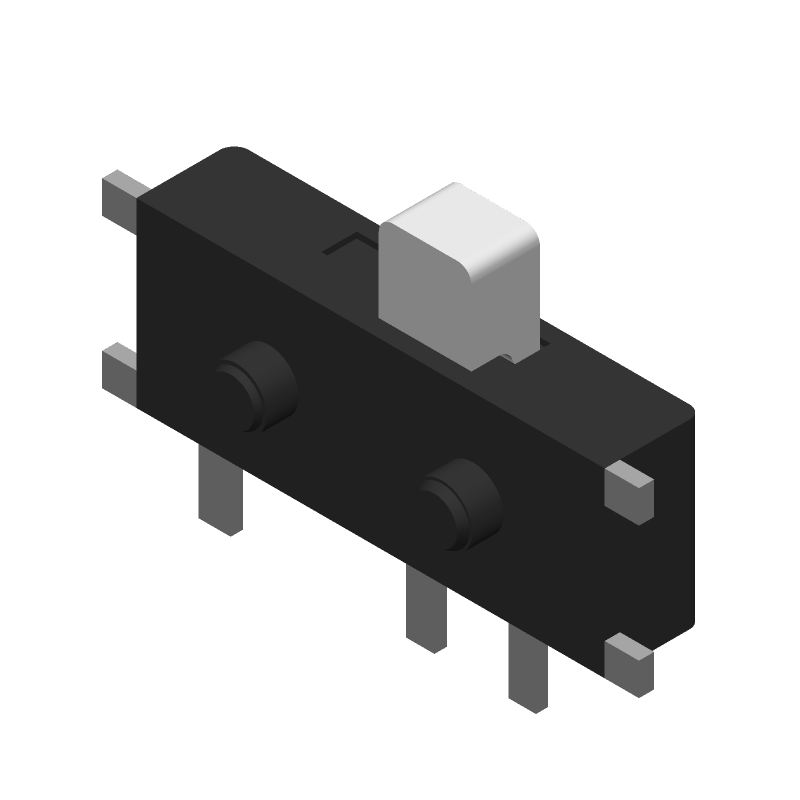

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CUS-12TB by Nidec Copal Electronics Corporation
Results Overview of CUS-12TB by Nidec Copal Electronics Corporation
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
CUS-12TB Information
CUS-12TB by Nidec Copal Electronics Corporation is a Slide Switch.
Slide Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for CUS-12TB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
CUS-12TB
|
Avnet Americas | Switch Slide SPDT Side Slide 0.3A 20VDC Gull Wing SMD Embossed T/R - Tape and Reel (Alt: CUS-12TB) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 15 Weeks, 0 Days Container: Reel | 0 |
|
$0.3840 / $0.4352 | Buy Now |
|
DISTI #
CUS-12TB
|
TME | Switch: slide, Pos: 2, SPDT, 0.3A/4VDC, ON-ON, SMT, Leads: curved Min Qty: 1 | 5021 |
|
$0.4020 / $0.7780 | Buy Now |
|
DISTI #
SMC-CUS-12TB
|
Sensible Micro Corporation | Switch: Slide, Pos: 2, Spdt, 0.3A/4Vdc, On-On, Smt, Leads: Curved RoHS: Not Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days | 5000 |
|
$0.2430 / $0.2632 | RFQ |
|
DISTI #
CUS-12TB
|
Avnet Abacus | Switch Slide SPDT Side Slide 03A 20VDC Gull Wing SMD Embossed TR (Alt: CUS-12TB) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 14 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for CUS-12TB
CUS-12TB CAD Models
CUS-12TB Part Data Attributes
|
|
CUS-12TB
Nidec Copal Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
CUS-12TB
Nidec Copal Electronics Corporation
Slide Switch, 2 Positions, 0.3A, 4VDC, 2 PCB Hole Cnt, Solder Terminal, Surface Mount-straight,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NIDEC COPAL ELECTRONICS CORP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.50 | |
| Factory Lead Time | 15 Weeks | |
| Samacsys Manufacturer | Nidec Copal | |
| Actuator Length | 0.059 inch | |
| Actuator Material | POLYAMIDE | |
| Actuator Type | SLIDE | |
| Body Breadth | 1.397 mm | |
| Body Height | 2.5908 mm | |
| Body Length or Diameter | 6.7056 mm | |
| Center Contact Material | COPPER ALLOY | |
| Center Contact Plating | GOLD | |
| Contact Current(DC)-Max | 0.3 A | |
| Contact (DC) Max Rating R Load | 0.3A@4VDC | |
| Contact Resistance | 0.07 mΩ | |
| Contact Timing | BREAK-BEFORE-MAKE | |
| Contact Voltage(DC)-Max | 4 V | |
| Dielectric Withstand Volts | 100VAC V | |
| Electrical Life | 10000 Cycle(s) | |
| End Contact Material | COPPER ALLOY | |
| End Contact Plating | GOLD | |
| Housing Material | LIQUID CRYSTAL POLYMER | |
| Insulation Resistance | 100000000 Ω | |
| JESD-609 Code | e4 | |
| Mounting Feature | SURFACE MOUNT-RIGHT ANGLE | |
| Number of Positions | 2 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -20 °C | |
| Solderability | HAND | |
| Surface Mount | NO | |
| Switch Action | LATCHED | |
| Switch Function | SPDT | |
| Switch Type | SLIDE SWITCH | |
| Terminal Finish | Gold (Au) | |
| Terminal Material | COPPER ALLOY | |
| Termination Type | SOLDER |
