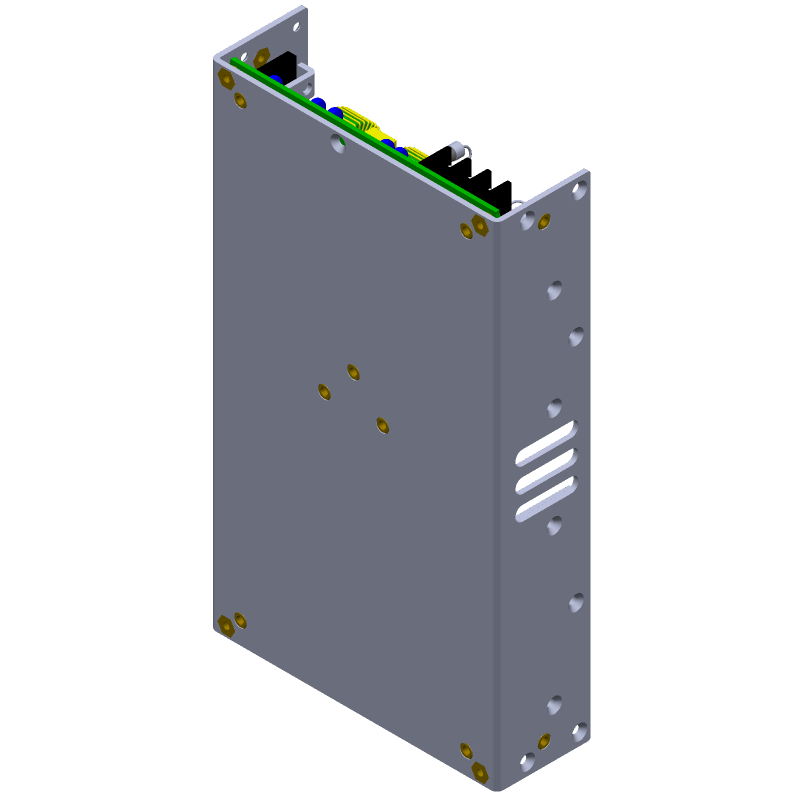

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CSS500-12 by TDK Corporation
Results Overview of CSS500-12 by TDK Corporation
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Internet of Things (IoT)
Environmental Monitoring
Smart Cities
Transportation and Logistics
Agriculture Technology
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Medical Imaging
Automotive
Consumer Electronics
Security and Surveillance
Aerospace and Defense
Healthcare
Robotics and Drones
CSS500-12 Information
CSS500-12 by TDK Corporation is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for CSS500-12
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
CSS500-12
|
Avnet Americas | - Bulk (Alt: CSS500-12) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 23 Weeks, 0 Days Container: Bulk | 0 |
|
$219.9873 / $259.6608 | Buy Now |
Part Details for CSS500-12
CSS500-12 CAD Models
CSS500-12 Part Data Attributes
|
|
CSS500-12
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
CSS500-12
TDK Corporation
AC-DC Regulated Power Supply Module, 360W,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | TDK CORP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 23 Weeks | |
| Samacsys Manufacturer | TDK | |
| Additional Feature | REMOTE SHUTDOWN | |
| Analog IC - Other Type | AC-DC REGULATED POWER SUPPLY MODULE | |
| Approvals | CE, CSA, UL | |
| Efficiency (Main Output) | 92% | |
| Input Voltage-Max | 264 V | |
| Input Voltage-Min | 90 V | |
| Input Voltage-Nom | 115 V | |
| Length | 203.2 mm | |
| Line Regulation-Max | 0.5% | |
| Load Regulation-Max | 1% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Current-Max | 30 A | |
| Output Voltage-Nom | 12 V | |
| Protections | OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL | |
| Total Power Output-Max | 360 W | |
| Width | 118.5 mm |
