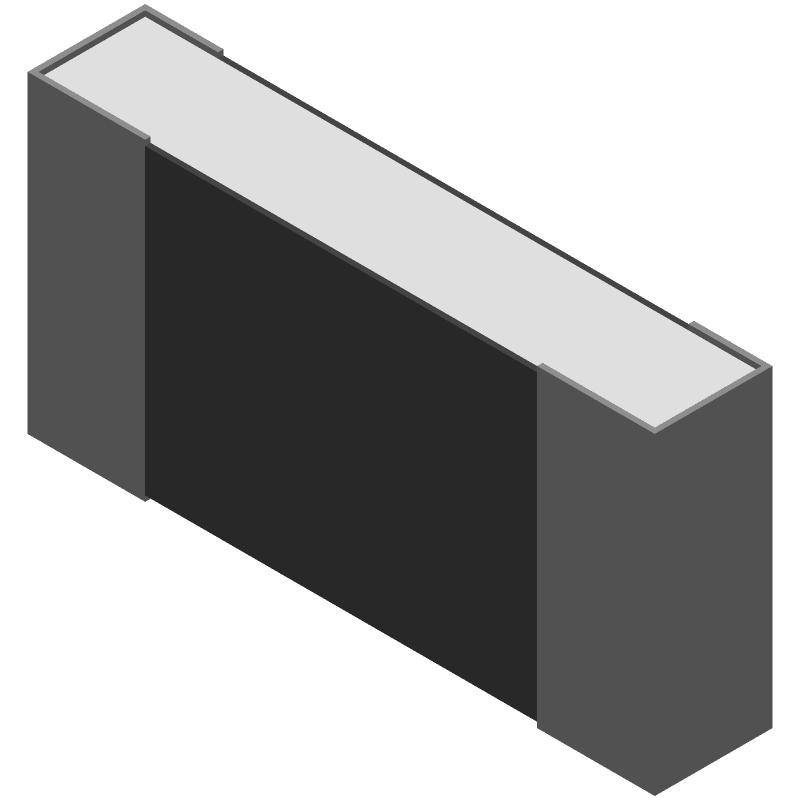

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CSM0603FT10L0 by SEI Stackpole Electronics Inc
Results Overview of CSM0603FT10L0 by SEI Stackpole Electronics Inc
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Energy and Power Systems
Renewable Energy
CSM0603FT10L0 Information
CSM0603FT10L0 by SEI Stackpole Electronics Inc is a Metal Alloy Resistor.
Metal Alloy Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for CSM0603FT10L0
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
CSM0603FT10L0CT-ND
|
DigiKey | RES 0.01 OHM 1% 1/3W 0603 Min Qty: 1 Lead time: 17 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
21919 In Stock |
|
$0.1668 / $0.6300 | Buy Now |
|
DISTI #
CSM0603FT10L0
|
Avnet Americas | - Tape and Reel (Alt: CSM0603FT10L0) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 17 Weeks, 0 Days Container: Reel | 10000 Factory Stock |
|
$0.1536 | Buy Now |
|
DISTI #
708-CSM0603FT10L0
|
Mouser Electronics | Current Sense Resistors - SMD 0.01Ohms 0.33W 70ppm 1% Molded Metal Plate RoHS: Compliant | 18888 |
|
$0.1710 / $0.6300 | Buy Now |
|
|
Onlinecomponents.com | RoHS: Compliant |
4100 In Stock 10000 Factory Stock |
|
$0.1716 / $0.3900 | Buy Now |
|
DISTI #
31586664
|
Verical | Res Metal Plate 0603 0.01 Ohm 1% 0.33W(1/3W) ±100ppm/°C Pad SMD T/R RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 | Americas - 10000 |
|
$0.6174 | Buy Now |
|
DISTI #
87802448
|
Verical | Res Metal Plate 0603 0.01 Ohm 1% 0.33W(1/3W) ±100ppm/°C Pad SMD T/R RoHS: Compliant Min Qty: 200 Package Multiple: 50 Date Code: 2506 | Americas - 4100 |
|
$0.2259 / $0.3420 | Buy Now |
|
|
NAC | RESISTOR SHUNT, 0603, 0.01 ohm, 1%, 0.33W - Molded Current Sensing Metal Strip RoHS: Compliant Min Qty: 1 Package Multiple: 5000 | 10000 |
|
$0.3000 / $0.4000 | Buy Now |
|
DISTI #
CSM0603FT10L0
|
Avnet Asia | Res Metal Plate 0603 10m Ohm 1% 1/3W ?100ppm/?C Molded SMD Paper T/R (Alt: CSM0603FT10L0) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 14 Weeks, 0 Days | 0 |
|
RFQ | |
|
|
Master Electronics | RoHS: Compliant |
4100 In Stock 10000 Factory Stock |
|
$0.1716 / $0.3900 | Buy Now |
Part Details for CSM0603FT10L0
CSM0603FT10L0 CAD Models
CSM0603FT10L0 Part Data Attributes
|
|
CSM0603FT10L0
SEI Stackpole Electronics Inc
Buy Now
Datasheet
|
Compare Parts:
CSM0603FT10L0
SEI Stackpole Electronics Inc
Fixed Resistor, Metal Alloy, 0.33W, 0.01ohm, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STACKPOLE ELECTRONICS INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 17 Weeks | |
| Samacsys Manufacturer | Stackpole Electronics, Inc. | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.3 mm | |
| Package Length | 1.6 mm | |
| Package Style | SMT | |
| Package Width | 0.8 mm | |
| Packing Method | TR, Paper, 7 Inch | |
| Rated Power Dissipation (P) | 0.33 W | |
| Rated Temperature | 70 °C | |
| Resistance | 0.01 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 0603 | |
| Surface Mount | YES | |
| Technology | METAL STRIP | |
| Temperature Coefficient | 70 ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 0.0574 V |
CSM0603FT10L0 Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the CSM0603FT10L0 is 260°C for 10 seconds or less.
-
Yes, the CSM0603FT10L0 is resistant to sulfur contamination and meets the ASTM B809-95 standard for sulfur resistance.
-
The power rating of the CSM0603FT10L0 at 70°C is 0.1W.
-
Yes, the CSM0603FT10L0 is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
-
The operating temperature range of the CSM0603FT10L0 is -55°C to 150°C.
