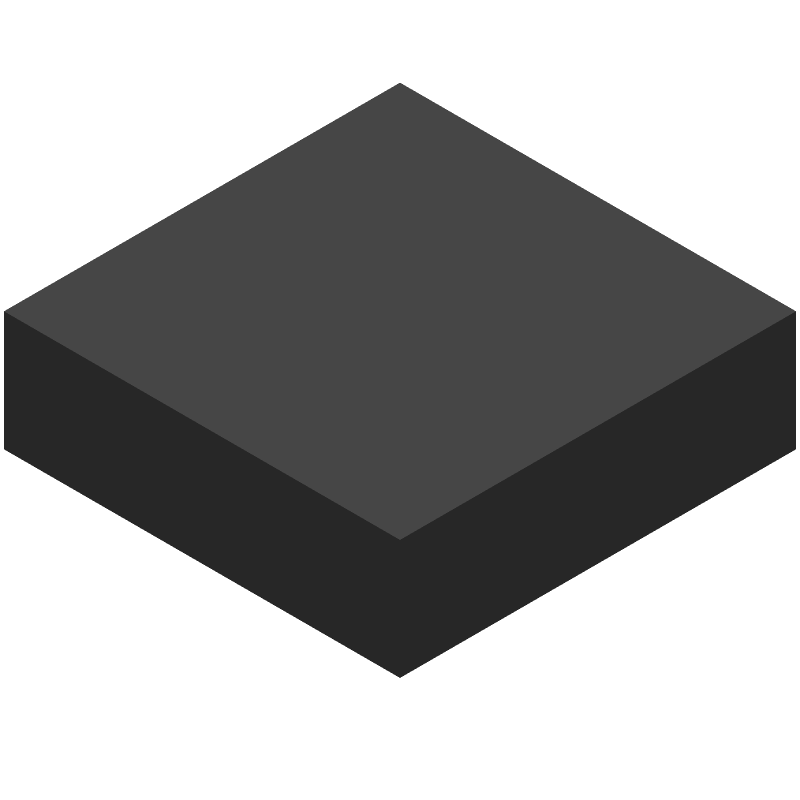

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CSD22205LT by Texas Instruments
Results Overview of CSD22205LT by Texas Instruments
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Motor control systems
CSD22205LT Information
CSD22205LT by Texas Instruments is a Small Signal Field-Effect Transistor.
Small Signal Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for CSD22205LT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-47093-1-ND
|
DigiKey | MOSFET P-CH 8V 7.4A 4PICOSTAR Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
29845 In Stock |
|
$0.4063 / $0.5800 | Buy Now |
|
DISTI #
595-CSD22205LT
|
Mouser Electronics | MOSFETs -8V P channel NexFE T power MOSFET sin A 595-CSD22205L RoHS: Compliant | 3932 |
|
$0.4060 / $0.5700 | Buy Now |
|
DISTI #
CSD22205LT
|
TME | Transistor: P-MOSFET, unipolar, -8V, -7.4A, Idm: -71A, 0.6W Min Qty: 1 | 0 |
|
$0.5730 / $0.8600 | RFQ |
Part Details for CSD22205LT
CSD22205LT CAD Models
CSD22205LT Part Data Attributes
|
|
CSD22205LT
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CSD22205LT
Texas Instruments
-8V, P channel NexFET™ power MOSFET, single LGA 1.2 mm x 1.2 mm, 9.9 mOhm, gate ESD protection 4-PICOSTAR -55 to 150
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | LGA, 4 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.21.00.40 | |
| Date Of Intro | 2017-06-15 | |
| Samacsys Manufacturer | Texas Instruments | |
| Case Connection | DRAIN SOURCE | |
| Configuration | SINGLE WITH BUILT-IN DIODE AND RESISTOR | |
| DS Breakdown Voltage-Min | 8 V | |
| Drain Current-Max (ID) | 7.4 A | |
| Drain-source On Resistance-Max | 0.04 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| Feedback Cap-Max (Crss) | 250 pF | |
| JESD-30 Code | S-PBGA-B4 | |
| JESD-609 Code | e4 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 4 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | P-CHANNEL | |
| Power Dissipation-Max (Abs) | 0.6 W | |
| Surface Mount | YES | |
| Terminal Finish | Nickel/Gold (Ni/Au) | |
| Terminal Form | BUTT | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
CSD22205LT Frequently Asked Questions (FAQ)
-
A good PCB layout for CSD22205LT involves keeping the high-current paths short and wide, using multiple vias to connect the thermal pad to the heat sink, and placing the device near the power input to minimize inductance.
-
To ensure stability, ensure that the output capacitance is within the recommended range, the input voltage is within the specified range, and the device is properly decoupled with ceramic capacitors.
-
The maximum allowed junction temperature for CSD22205LT is 150°C. Exceeding this temperature can lead to device failure or reduced lifespan.
-
Yes, CSD22205LT is qualified for automotive and industrial applications, and is suitable for high-reliability applications. However, it's essential to follow proper design and manufacturing guidelines to ensure reliability.
-
To troubleshoot issues, start by checking the input voltage, output voltage, and current. Verify that the device is properly decoupled and that the PCB layout is correct. Use oscilloscopes and current probes to measure waveforms and currents.
