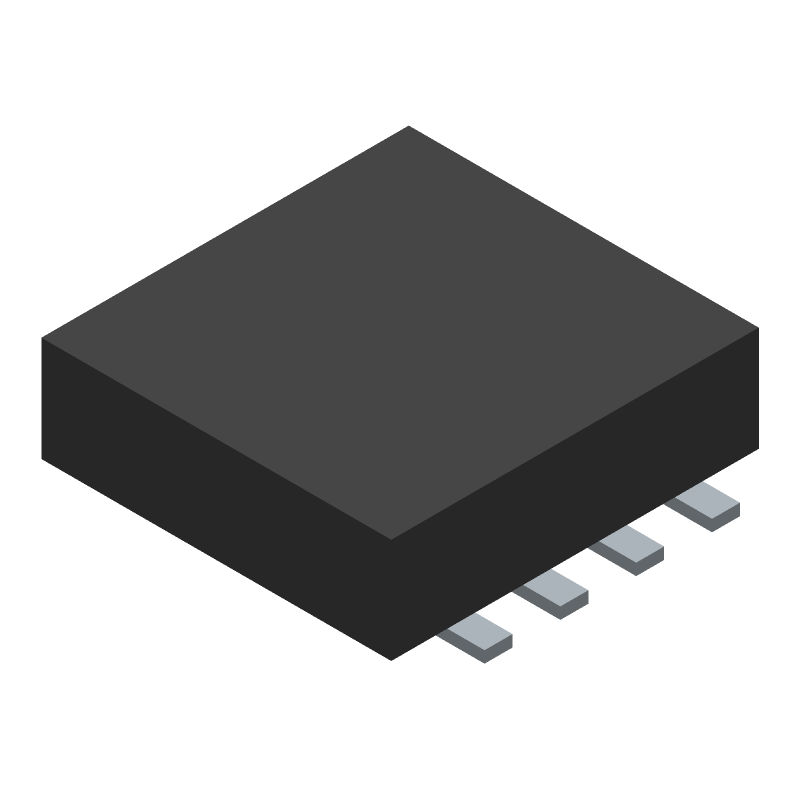

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CSD19538Q3A by Texas Instruments
Results Overview of CSD19538Q3A by Texas Instruments
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
CSD19538Q3A Information
CSD19538Q3A by Texas Instruments is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for CSD19538Q3A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-44352-1-ND
|
DigiKey | MOSFET N-CH 100V 15A 8VSON Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
976 In Stock |
|
$0.1888 / $0.6800 | Buy Now |
|
DISTI #
595-CSD19538Q3A
|
Mouser Electronics | MOSFETs 100-V N channel Nex FET power MOSFET s A 595-CSD19538Q3AT RoHS: Compliant | 0 |
|
$0.2050 / $0.6000 | Order Now |
|
DISTI #
SMC-CSD19538Q3A
|
Sensible Micro Corporation | OEM Excess 5-7 Days Leadtime, We are an AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 5000 |
|
RFQ | |
|
|
Cytech Systems Limited | MOSFET N-CH 100V 15A 8VSON | 2500 |
|
RFQ | |
|
|
Greenchips | Date Code: NA/CN | 800 |
|
$0.0742 / $0.1317 | Buy Now |
|
|
Greenchips | Date Code: 2120/CN | 296 |
|
$0.0792 / $0.1398 | Buy Now |
|
|
Greenchips | Date Code: 21+/CN | 0 |
|
$0.0792 / $0.1398 | Buy Now |
|
|
Greenchips | Date Code: 2130/CN | 0 |
|
$0.0792 / $0.1398 | Buy Now |
|
|
LCSC | 100V 15A 49m10V5A 2.8W 3.2V 1 N-channel VSONP-8(3.1x3.1) MOSFETs ROHS | 38 |
|
$0.3125 / $0.4981 | Buy Now |
|
|
Vyrian | Transistors | 78301 |
|
RFQ |
Part Details for CSD19538Q3A
CSD19538Q3A CAD Models
CSD19538Q3A Part Data Attributes
|
|
CSD19538Q3A
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CSD19538Q3A
Texas Instruments
100-V, N channel NexFET™ power MOSFET, single SON 3 mm x 3 mm, 61 mOhm 8-VSONP -55 to 150
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | VSONP-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.29.00.95 | |
| Date Of Intro | 2016-06-02 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | AVALANCHE RATED | |
| Avalanche Energy Rating (Eas) | 8.1 mJ | |
| Case Connection | DRAIN | |
| Configuration | SINGLE | |
| DS Breakdown Voltage-Min | 100 V | |
| Drain Current-Max (ID) | 15 A | |
| Drain-source On Resistance-Max | 0.072 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| Feedback Cap-Max (Crss) | 16.4 pF | |
| JESD-30 Code | R-PDSO-F5 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 8 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 23 W | |
| Pulsed Drain Current-Max (IDM) | 36 A | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
Alternate Parts for CSD19538Q3A
This table gives cross-reference parts and alternative options found for CSD19538Q3A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CSD19538Q3A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| CSD19538Q3AT | Texas Instruments | $0.3279 | 100-V, N channel NexFET™ power MOSFET, single SON 3 mm x 3 mm, 61 mOhm 8-VSONP -55 to 150 | CSD19538Q3A vs CSD19538Q3AT |
Resources and Additional Insights for CSD19538Q3A
Reference Designs related to CSD19538Q3A
-
Fully Autonomous Single Port Type 2 (30W) PoE PSE Reference Design
The PMP20588 reference design utilizes the TPS23861 PSE controller to implement a single port Type 2 PoE PSE. An isolated flyback converter: utilizing the LM5022 current mode PWM controller: accepts a 12Vdc/24Vac input and provides a 55Vdc/600mA output source for the PSE. It is ideally suited for any Type 2 (30W) PoE PSE application.
-
TIDEP0043 Acontis EtherCAT 主站协议栈参考设计
The acontis EC-Master EtherCAT Master stack is a highly portable software stack that can be used on various embedded platforms. The EC-Master supports the high performance TI Sitara MPUs, it provides a sophisticated EtherCAT Master solution which customers can use to implement EtherCAT comm
-
PMP4654 双路降压，1.8V @ 1.5A/1.2V @ 2.5A
PMP4654 是采用 TPS5130 的双路降压设计。输入电压范围为 4.5-5.5V，两个同步降压输出分别为 1.2V @ 2.5A 和 1.8V @ 1.5A。
-
PR209 Spartan™-II 电源管理解决方案（设计 2）
Spartan™-II Design 2 - Single-Channel Linear Regulator Power Management Solution Providing up to 1.5 A from VIN = 3.3 V and 1.2 A from VIN = 5.0 V.
-
Isolated 24VAC/DC Solid-State Relay Reference Design
This isolated: bi-directional: solid-state switch can control current flow into both AC and DC loads. Rated for 24VAC: it can switch loads up to approximately 1Arms/4Apeak.
-
Reference Design for Line AC Voltage Generation From Low-Voltage DC Source for Sensor Excitation
This reference design demonstrates a method for designers to achieve high-voltage signals that can be used for flame detection using discrete components. The reference design is built with low BOM-cost and small solution size in mind. By using push-pull converter topology: it is possible to achieve a wide input range and low start-up time.
-
TIDA-01364 通过白色 LED 驱动器、环境光线传感器和接近度传感器实现的智能背光控制参考设计
TIDA-01364 TI 设计通过相对于环境亮度级动态调整 LCD 背光亮度来节省电能并延长 LCD 背光寿命。电容式接近传感器在有人靠近时将系统从睡眠或待机模式唤醒，从而可以节能并延长 LCD 背光灯寿命。
- 16s battery pack reference design with low-side MOSFET control for large capacity applications
-
9V-15V Input Voltage Boost Converter (200V@10mA) Reference Design
This boost converter implements a voltage tripler which allows a high input-to-output boost ratio. This design is low cost and requires an area of less than 25mm x 25mm.
-
PMP4304 用于 PAR30/PAR38 灯泡更换的串联驱动器 (350mA@20)
The PMP4304 is 7W TRIAC dimming LED lighting Driver with 180 to 264Vac input. It has only 50 components counts with low BOM cost,and it is TRIAC dimmable solutions without flicking. PMP4304 has a primary side that controls without opto-coupler and Constant On-time control with high powe
-
10V to 32Vin 25Vout at 1A Factory Automation I/O Module Reference Design
PMP20430 is a 4-switch buck-boost controller utilizing the LM5175 for industrial applications. This design has a minimum operating input voltage of 10V and a maximum input voltage of 32V: supports 25Vout @ 1A. Switching frequency is set to 600kHz: during buck-boost mode: switching frequency drops in half: the buck and boost switches at 300kHz alternately with respected max and min duty cycle.
-
Dual-input redundant PoE PD with smooth transition reference design
This reference design implements an IEEE802.3bt (draft) Power over Ethernet (PoE) Powered Device (PD) with dual redundant inputs and a smooth transition between these inputs and an auxiliary input. The design consists of a 5V/6A synchronous flyback converter and allows for up to three power supplies (two PoE Power Source Equipment (PSE) supplies and one AC/DC wall adapter auxiliary supply) to be used in order to decrease the probability of power and data loss in your system.In need of an IEEE802.3bt-ready PSE controller? Check out the TPS23881.
- TIDM-NFC-WATERMTR 用于流量计的零待机功耗 NFC 参考设计
-
High Voltage Stepper Driver Reference Design
The TIDA-01227 reference design is a 15 V to 70 V stepper motor controller for bipolar applications. The design uses Texas Instrument’s DRV8711 Bipolar Stepper Motor Controller gate driver: CSD19538Q3A 100V: N-Channel NexFET Power MOSFET s: CSD17483F4 30V: N-Channel FemtoFET™ MOSFET: MSP430G2553 MCU: LM5107 100V / 1.4-A Peak Half Bridge Gate Driver: and LM5017 12 V buck converter. The focus of this design is to demonstrate use of the DRV8711 stepper motor controller to control stepper motors at voltages higher than 60V. The DRV8711 operates at 12V while using additional circuitry to convert to the high voltage control signals.
1 - 5 of 14 reference designs
CSD19538Q3A Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the high-current paths short and use wide traces for the power lines. Decouple the device with a 10uF capacitor and a 100nF capacitor in parallel.
-
Use a thermal pad or thermal tape to attach the device to a heat sink or a metal plate. Ensure good airflow around the device and avoid blocking the airflow. The maximum junction temperature is 150°C.
-
A 10uF to 22uF X5R or X7R ceramic capacitor is recommended for the input. The capacitor should be placed as close to the VIN pin as possible.
-
Use a soft-start circuit or a current limiter to limit the inrush current. You can also use a NTC thermistor in series with the input to reduce the inrush current.
-
The maximum output capacitance is 220uF. Exceeding this value may cause instability or oscillations.
