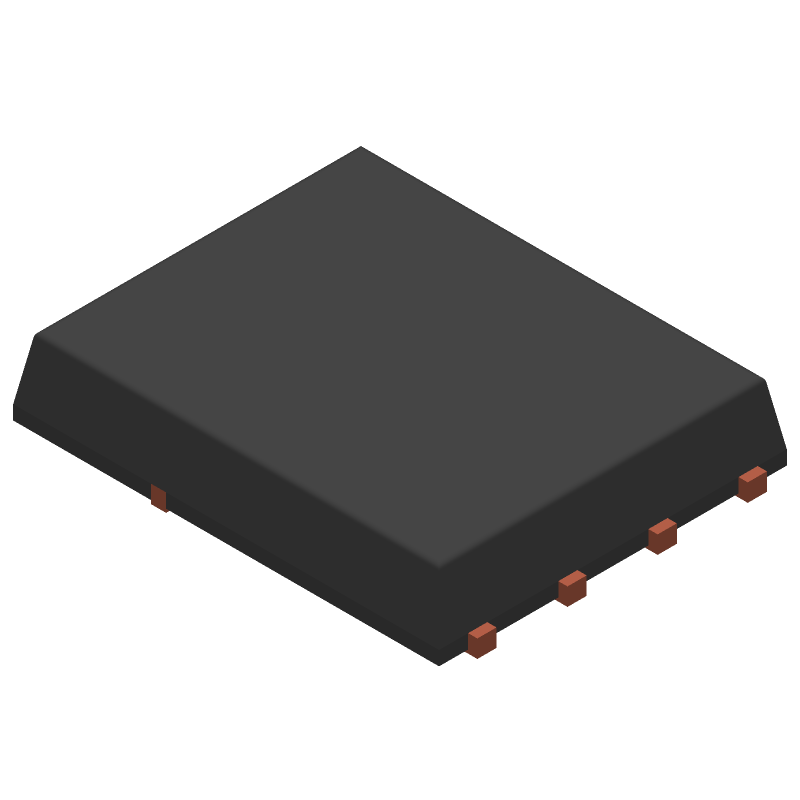

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CSD16412Q5A by Texas Instruments
Results Overview of CSD16412Q5A by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
CSD16412Q5A Information
CSD16412Q5A by Texas Instruments is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| CSD16412Q5A | Texas Instruments | 25V, N ch NexFET MOSFET™, single SON5x6, 16mOhm 8-VSONP -55 to 150 |
Price & Stock for CSD16412Q5A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-24256-1-ND
|
DigiKey | MOSFET N-CH 25V 14A/52A 8VSON Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
2190 In Stock |
|
$0.3025 / $1.2000 | Buy Now |
|
DISTI #
595-CSD16412Q5A
|
Mouser Electronics | MOSFETs N-Ch NexFET Power MO SFETs RoHS: Compliant | 3067 |
|
$0.3020 / $1.1800 | Buy Now |
|
|
Quest Components | 77 |
|
$0.8295 / $1.6590 | Buy Now | |
|
|
Cytech Systems Limited | MOSFET N-CH 25V 14A/52A 8VSON | 7500 |
|
RFQ |
Part Details for CSD16412Q5A
CSD16412Q5A CAD Models
CSD16412Q5A Part Data Attributes
|
|
CSD16412Q5A
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CSD16412Q5A
Texas Instruments
25-V, N channel NexFET™ power MOSFET, single SON 5 mm x 6 mm, 16 mOhm 8-VSONP -55 to 150
|
| Pbfree Code | Yes | |
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | SON-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.29.00.95 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | AVALANCHE RATED | |
| Avalanche Energy Rating (Eas) | 14 mJ | |
| Case Connection | DRAIN | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 25 V | |
| Drain Current-Max (ID) | 52 A | |
| Drain-source On Resistance-Max | 0.016 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| Feedback Cap-Max (Crss) | 42 pF | |
| JESD-30 Code | R-PDSO-N8 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 8 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 3 W | |
| Pulsed Drain Current-Max (IDM) | 91 A | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
Resources and Additional Insights for CSD16412Q5A
Reference Designs related to CSD16412Q5A
- Sync Buck: Linear Regulator (1.5V @ 9A: 0.75V @ 3A)
-
TIDA-00845 具有电池短路保护功能的双端口汽车类 USB 2.0 集线器参考设计
TIDA-00845 是双端口 USB 2.0 集线器，能够在两个下游端口承受短暂的高达 18V 直流，并具有针对过流情况和接地短路的级别 4 IEC 61000-4-2 ESD 保护。由集成保护器件 TPD3S714-Q1 提供该保护。凭借两个下游端口上的电池短路 (STB) 保护、短路保护和固定电流限制负载开关，可使 TUSB4020BI USB 2.0 集线器与过压和过流情况相隔离，从而免受其损害。下游端口 1 包含一个用于应用 18V 直流的 STB 测试仿真器，以及两个 TPD3S714-Q1，用于保护集线器和外设，以便轻松演示 USB STB 保护功能。
- TIDC-CC3200AUDBOOST 用于 SimpleLink Wi-Fi CC3200 Launchpad 的 Wi-Fi 音频流应用
-
PMP4618 33.6W PFC LED 驱动
The PMP4618 is a constant current LED driver, delivering 10V to 48V with a constant current of 350mA or 700mA. The output current is adjustable by means of a switch; the input voltage is the high line.
-
PMP4489 USB Type-C PD DFP 充电器 5V/12V@3A 输出适配器参考设计
PMP4489 参考设计是一款专用 USB-C PD2.0 DFP 5V/12V 3A 输出反激式转换器，具有二级侧调节 UCC28740DR，可提供恒定电压和恒定电流功能。此设计具有小于 75mW 的待机功耗特性（符合 DOE 6 和 CoC V5 第 2 级标准）。二级电压和二级平衡同步整流器 UCC24636 可实现高效率且具有最大 SR 导通时间。TPS25740 可实现与 USB Power Delivery 2.0 提供商和 Type-C 下行端口 (DFP) 的完全兼容。
-
1 to 2s I<sup>2</sup>C Li-Ion Battery Pack Manager Reference Design
The Texas Instruments bq28z610 device is a Battery Pack Manager that integrates gas gauging: and protection for complete autonomous operation of 1-series to 2-series cell Li-Ion and Li-Polymer battery packs. The architecture enables communication between the fuel gauging processor and an internal battery charger controller through I2C broadcast commands. This reference design eases the design process for the customer given that it is a complete pack solution which includes gauging and protection of the Li-ion battery. It includes an over-voltage IC for additional safety protection.
-
1 to 2s HDQ Li-Ion Battery Pack Manager Reference Design
The Texas Instruments bq78z100 device is a Battery Pack Manager that integrates gas gauging: and protection for complete autonomous operation of 1-series to 2-series cell Li-Ion and Li-Polymer battery packs. The architecture enables communication between the fuel gauging processor and an external battery charger controller through HDQ broadcast commands. This reference design eases the design process for the customer given that it is a complete pack solution which includes gauging and protection of the Li-ion battery. It includes an overvoltage IC for additional safety protection.
-
LM27402 Step-Down Regulator Delivering 1.2V at 3A Reference Design
PMP7882 is a single-phase switching regulator accepting an input voltage range of 10.8Vin to 13.2Vin and providing an output voltage of 1.2Vout capable of supplying 12A of current. This design uses the LM27402 synchronous buck controller with lossless inductor DCR current sensing capability: which eliminates the need to add resistive powertrain elements and increases overall efficiency.
-
Automotive eCall Power Supply Reference Design with Low Intermediate Voltage
This reference design includes a complete power management solution for a standalone emergency call (eCall) system in an automotive environment. The circuit is supplied directly from the car battery rail. It also manages a backup battery to power the eCall system while the car battery rail is not available. It includes power path management which routes the available power rail directly to four DC/DC converters which are supplying the required functional blocks of the eCall system. The solution is optimized to operate at maximum efficiency while powered from the backup battery.
-
TIDA-01402 用于缓冲 DAC 信号的高精度参考设计
此参考设计是业界首款零交叉和零漂移放大器 (OPA388)，用于缓冲数模转换器 (DAC) 的模拟输出。它展示了零交叉和零漂移功能的重要性，以及它们如何最大程度地减小系统的积分非线性 (INL) 以及如何使用 DAC (DAC8830) 的满标量程。
-
TPS40304 Step-Down Regulator Delivering 1.0V at 3A Reference Design
PMP5596 is a single-phase synchronous switching regulator accepting an input voltage range of 4.5Vin to 13.2Vin and providing an output voltage of 1.0Vout capable of supplying 3A of current.
- Sync Buck: monitor for Battery charging & monitoring for PCs (12.6V @ 8A)
1 - 5 of 12 reference designs
CSD16412Q5A Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the CSD16412Q5A is -55°C to 150°C.
-
To ensure proper biasing, connect the gate to a voltage source through a resistor, and connect the source to ground through a resistor. The recommended bias voltage is typically around 4.5V to 5.5V.
-
The maximum current rating for the CSD16412Q5A is 12A.
-
Use a voltage regulator to regulate the input voltage, and consider adding overcurrent protection devices such as fuses or current-limiting resistors to prevent damage from excessive current.
-
The thermal resistance of the CSD16412Q5A is typically around 2.5°C/W for the junction-to-ambient thermal resistance (RθJA) and 1.5°C/W for the junction-to-case thermal resistance (RθJC).
