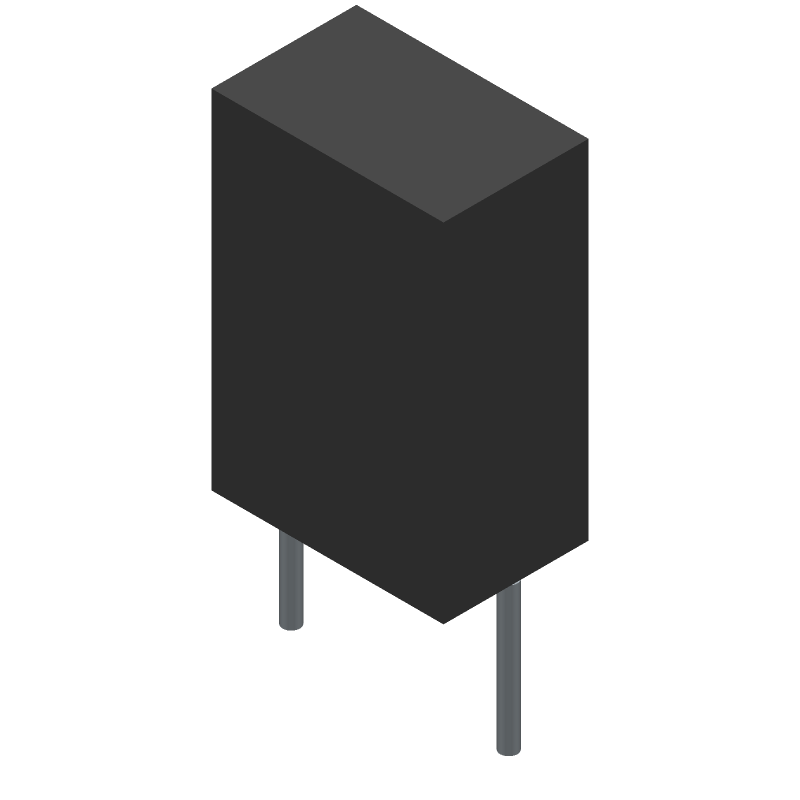

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CS80ZU2GA222MYNKA by TDK Corporation
Results Overview of CS80ZU2GA222MYNKA by TDK Corporation
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
CS80ZU2GA222MYNKA Information
CS80ZU2GA222MYNKA by TDK Corporation is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for CS80ZU2GA222MYNKA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
445-15859-ND
|
DigiKey | CAP CER 2200PF 300/440VAC Z5U Min Qty: 1000 Lead time: 10 Weeks Container: Bulk | Temporarily Out of Stock |
|
$0.1131 | Buy Now |
|
DISTI #
810-CS80ZU2GA222MYNA
|
Mouser Electronics | Safety Capacitors SUGGESTED ALTERNATE 810-CS45E2GA222MVKA RoHS: Compliant | 1477 |
|
$0.0950 / $0.4100 | Buy Now |
|
DISTI #
CS80ZU2GA222MYNKA
|
TTI | Safety Capacitors SUGGESTED ALTERNATE 810-CS45E2GA222MVKA RoHS: Compliant pbFree: Pb-Free Min Qty: 1000 Package Multiple: 1000 Container: Bulk | Americas - 0 |
|
$0.0950 | Buy Now |
|
DISTI #
CS80ZU2GA222MYNKA
|
Avnet Abacus | Ceramic Suppression Capacitor 2200 pF 20 X1 Y2 440 Vac 300 Vac Radial Leaded (Alt: CS80ZU2GA222MYNKA) RoHS: Compliant Min Qty: 2000 Package Multiple: 1000 Lead time: 15 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for CS80ZU2GA222MYNKA
CS80ZU2GA222MYNKA CAD Models
CS80ZU2GA222MYNKA Part Data Attributes
|
|
CS80ZU2GA222MYNKA
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
CS80ZU2GA222MYNKA
TDK Corporation
Ceramic Capacitor, Ceramic, 20% +Tol, 20% -Tol, Z5U, -56/+22% TC, 0.0022uF, Through Hole Mount, RADIAL LEADED
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TDK CORP | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.23.00.60 | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | TDK | |
| Additional Feature | SAFTEY CLASS: X1/Y2 | |
| Capacitance | 0.0022 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Dielectric Material | CERAMIC | |
| Height | 8 mm | |
| Length | 8 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Multilayer | No | |
| Negative Tolerance | 20% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Shape | DISK PACKAGE | |
| Package Style | Radial | |
| Packing Method | BULK | |
| Positive Tolerance | 20% | |
| Rated (AC) Voltage (URac) | 440 V | |
| Reference Standard | IEC60384-14 | |
| Surface Mount | NO | |
| Temperature Characteristics Code | Z5U | |
| Temperature Coefficient | -56/+22% ppm/°C | |
| Terminal Pitch | 7.5 mm | |
| Terminal Shape | WIRE | |
| Width | 5 mm |
CS80ZU2GA222MYNKA Frequently Asked Questions (FAQ)
-
TDK recommends a soldering temperature profile with a peak temperature of 260°C for 10-30 seconds. However, it's essential to consult the datasheet and application notes for specific guidance.
-
The CS80ZU2GA222MYNKA is designed for high-frequency applications, with a self-resonant frequency of 1.5 GHz. It's suitable for use in high-frequency circuits, but impedance and parasitic effects should be considered in the design.
-
The CS80ZU2GA222MYNKA capacitor is rated for operation from -55°C to 125°C. However, derating may be necessary for high-temperature applications or high-voltage stress.
-
The CS80ZU2GA222MYNKA capacitor has a rated voltage of 50 VDC. While it can be used in high-voltage applications, derating and careful consideration of voltage stress, temperature, and other factors are essential to ensure reliability.
-
The CS80ZU2GA222MYNKA capacitor has a low ESR of 0.1 Ω, which minimizes energy losses and ensures efficient energy storage. However, ESR can increase with frequency, so it's essential to consider this in high-frequency designs.
