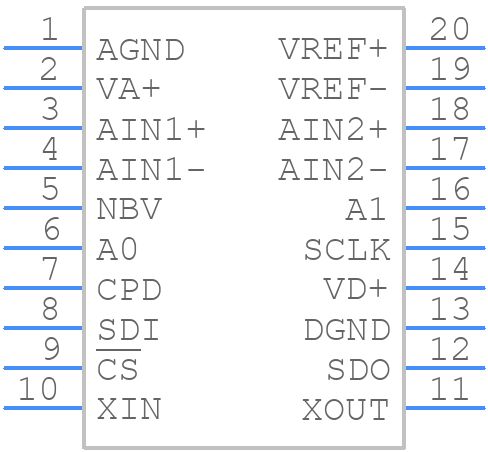

Part Symbol
-

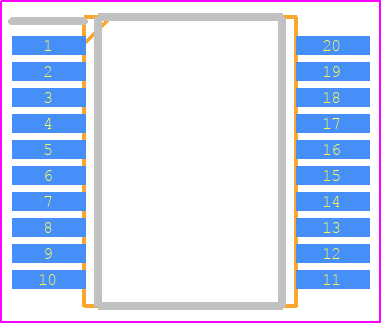

Footprint
-

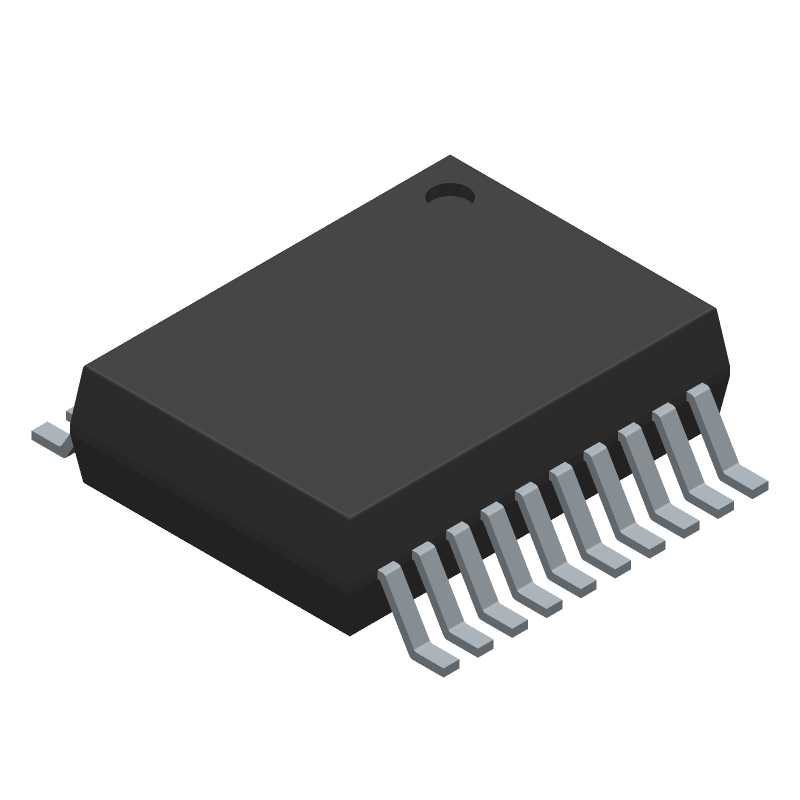

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CS5521-ASZ by Cirrus Logic
Results Overview of CS5521-ASZ by Cirrus Logic
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
CS5521-ASZ Information
CS5521-ASZ by Cirrus Logic is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for CS5521-ASZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
598-1103-5-ND
|
DigiKey | IC ADC 16BIT SIGMA-DELTA 20SSOP Min Qty: 1 Lead time: 16 Weeks Container: Tube |
737 In Stock |
|
$5.6125 / $11.6400 | Buy Now |
|
DISTI #
CS5521-ASZ
|
Avnet Americas | Analog to Digital Converter, 16 bit, Delta-Sigma, Differential, Microwire, SPI, 4.75 V to 5.25 V, 20 Pins, PSSOP - Rail/Tube (Alt: CS5521-ASZ) RoHS: Compliant Min Qty: 330 Package Multiple: 66 Lead time: 16 Weeks, 0 Days Container: Tube | 0 |
|
$4.9390 / $5.2982 | Buy Now |
|
DISTI #
777-CS5521-ASZ
|
Mouser Electronics | Analog to Digital Converters - ADC 2-Ch 16-Bit Delta Sigma ADC RoHS: Compliant | 209 |
|
$5.6100 / $11.6400 | Buy Now |
|
DISTI #
CS5521-ASZ
|
TME | IC: A/D converter, Ch: 2, 16bit, 617sps, 2.7÷5.25V, SSOP20 Min Qty: 1 | 220 |
|
$8.4000 / $13.0000 | Buy Now |
|
DISTI #
CS5521-ASZ
|
Avnet Silica | Analog to Digital Converter 16 bit DeltaSigma Differential Microwire SPI 475 V to 525 V 20 Pins PSSOP (Alt: CS5521-ASZ) RoHS: Compliant Min Qty: 330 Package Multiple: 66 Lead time: 18 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for CS5521-ASZ
CS5521-ASZ CAD Models
CS5521-ASZ Part Data Attributes
|
|
CS5521-ASZ
Cirrus Logic
Buy Now
Datasheet
|
Compare Parts:
CS5521-ASZ
Cirrus Logic
ADC, Delta-Sigma, 16-Bit, 1 Func, 2 Channel, Serial Access, CMOS, PDSO20, 0.200 INCH, LEAD FREE, PLASTIC, MO-150, SSOP-20
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | CIRRUS LOGIC INC | |
| Part Package Code | SSOP | |
| Package Description | 0.200 INCH, LEAD FREE, PLASTIC, MO-150, SSOP-20 | |
| Pin Count | 20 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 16 Weeks | |
| Samacsys Manufacturer | Cirrus Logic | |
| Analog Input Voltage-Max | 5.25 V | |
| Analog Input Voltage-Min | -1.8 V | |
| Converter Type | ADC, DELTA-SIGMA | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e3 | |
| Length | 7.2 mm | |
| Linearity Error-Max (EL) | 0.003% | |
| Moisture Sensitivity Level | 3 | |
| Number of Analog In Channels | 2 | |
| Number of Bits | 16 | |
| Number of Functions | 1 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | OFFSET BINARY, 2'S COMPLEMENT BINARY | |
| Output Format | SERIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP20,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.13 mm | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Width | 5.3 mm |
CS5521-ASZ Frequently Asked Questions (FAQ)
-
The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the analog input signal. This ensures proper device operation and prevents potential latch-up conditions.
-
To minimize noise and interference, keep the analog and digital grounds separate, use a solid ground plane, and place the device close to the analog signal source. Additionally, use shielding and filtering to reduce electromagnetic interference (EMI).
-
The CS5521-ASZ supports clock frequencies up to 20 MHz. However, the maximum clock frequency may vary depending on the specific application and system requirements.
-
The CS5521-ASZ outputs data in a 2's complement format. To handle the output data, ensure that your system is configured to accept 2's complement data and perform any necessary sign extension or data formatting.
-
The recommended operating temperature range for the CS5521-ASZ is -40°C to +85°C. Operating the device outside this range may affect its performance and reliability.
