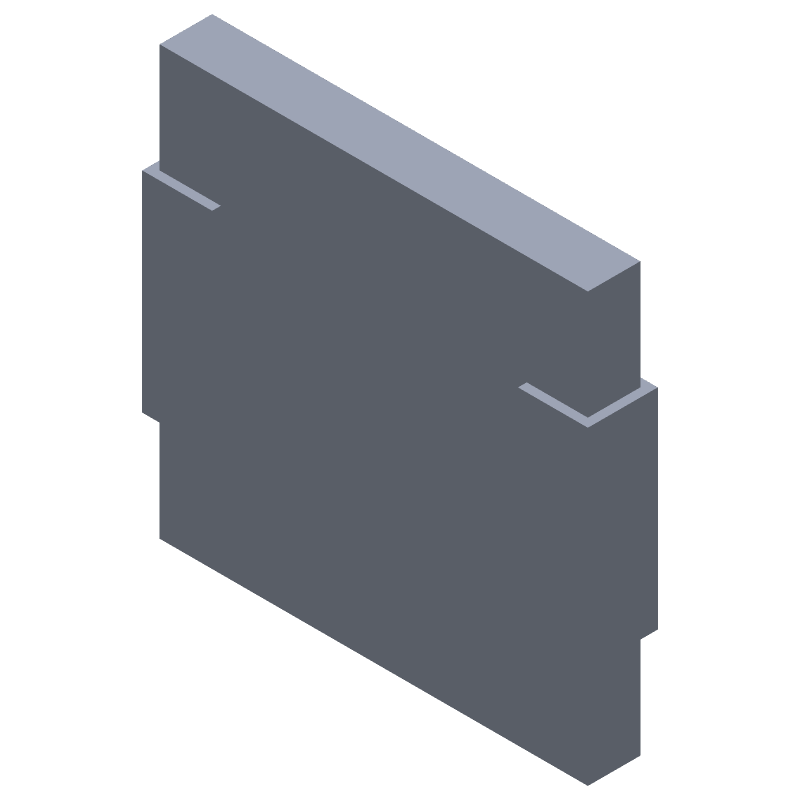

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CS12525T0100GTR by Kyocera AVX Components
Results Overview of CS12525T0100GTR by Kyocera AVX Components
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Telecommunications
CS12525T0100GTR Information
CS12525T0100GTR by Kyocera AVX Components is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for CS12525T0100GTR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
581-CS12525T0100GTR
|
Mouser Electronics | Thin Film Resistors - SMD 100ohms 2% 20W RoHS: Compliant | 2581 |
|
$3.0700 / $5.3100 | Buy Now |
Part Details for CS12525T0100GTR
CS12525T0100GTR CAD Models
CS12525T0100GTR Part Data Attributes
|
|
CS12525T0100GTR
Kyocera AVX Components
Buy Now
Datasheet
|
Compare Parts:
CS12525T0100GTR
Kyocera AVX Components
Fixed Resistor, Thin Film, 20W, 100ohm, 2% +/-Tol, 150ppm/Cel, Surface Mount, 2525, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | KYOCERA AVX COMPONENTS CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Kyocera AVX | |
| Construction | Rectangular | |
| JESD-609 Code | e4 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 1.02 mm | |
| Package Length | 6.22 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 6.22 mm | |
| Packing Method | TR, EMBOSSED | |
| Rated Power Dissipation (P) | 20 W | |
| Rated Temperature | 100 °C | |
| Resistance | 100 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 2525 | |
| Surface Mount | YES | |
| Technology | THIN FILM | |
| Temperature Coefficient | 150 ppm/°C | |
| Terminal Finish | Silver (Ag) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 2% |
CS12525T0100GTR Frequently Asked Questions (FAQ)
-
The recommended land pattern for the CS12525T0100GTR can be found in the Kyocera AVX Components' recommended land pattern document, which is typically available on their website or through their customer support. The document provides detailed information on the recommended pad size, shape, and spacing for optimal performance and reliability.
-
The CS12525T0100GTR is an ESD-sensitive device, and proper handling and storage procedures should be followed to prevent damage. This includes using anti-static wrist straps, mats, and bags, as well as avoiding direct contact with the device's pins. Additionally, the device should be stored in a dry, cool environment away from direct sunlight.
-
While the datasheet specifies the typical operating temperature range, the maximum operating temperature range for the CS12525T0100GTR is typically -40°C to +125°C. However, it's essential to note that operating the device at extreme temperatures may affect its performance and reliability.
-
The CS12525T0100GTR is designed to withstand moderate vibration levels, but it's essential to evaluate the device's performance in your specific application. If your environment exceeds the typical vibration levels, you may need to consider additional mechanical support or vibration dampening measures to ensure the device's reliability.
-
To ensure proper soldering, follow the recommended soldering profile and procedures outlined in the Kyocera AVX Components' soldering guide. This includes using a soldering iron with a temperature range of 250°C to 260°C, and applying a soldering time of 2-3 seconds per pin. Additionally, ensure the soldering area is clean and free of oxidation.
